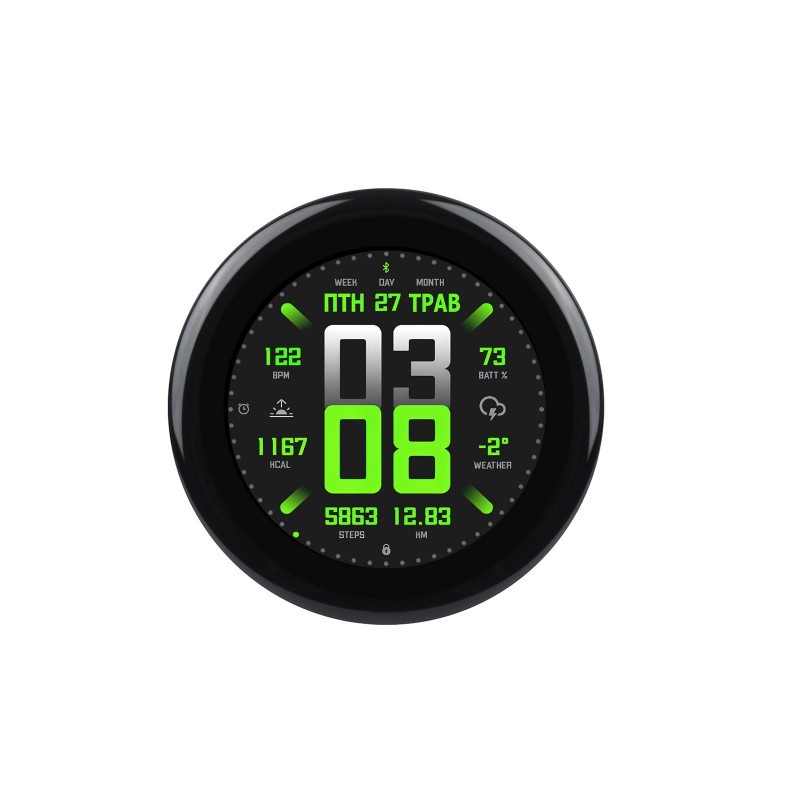

ESP32-S3 round touch display development board 2.1″ 480×480 - Waveshare 30697
ID: 1197729
5902186305212
zł158.44
Tax included
zł128.81 tax excl.
ESP32-S3-Touch-LCD-2.1B is a versatile development board featuring an IPS RGB touchscreen display with a circular touch panel, dedicated to HMI interfaces, IoT systems, control panels, and smart devices. It combines the performance of a dual-core processor with advanced communication capabilities and a wide range of peripheral interfaces, enabling rapid prototyping of modern visual and interactive applications.
Description
Development board with an ESP32-S3R8 microcontroller and an integrated 2.1-inch RGB IPS display with a resolution of 480 × 480 pixels. This version features a curved (2.5D) capacitive touch panel supporting single-point touch. The device is equipped with a 32-bit dual-core Xtensa LX7 processor running up to 240 MHz, 16 MB Flash memory, and 8 MB PSRAM. It supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE) wireless communication. The board includes a rich set of peripheral interfaces such as GPIO, UART, I2C, USB, a microSD card slot, 6-axis QMI8658 sensor, RTC, audio DAC, and a 3.7 V lithium battery connector. It supports ESP-IDF and Arduino IDE development environments and is suitable for HMI interfaces, control panels, and IoT systems.
Features
- 2.1" IPS RGB display, 480 × 480 resolution, 262K colors
- 2.5D curved capacitive touch panel, CST820 controller, I2C interface
- ESP32-S3R8 microcontroller, Xtensa 32-bit LX7 dual-core, up to 240 MHz
- 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
- Wi-Fi 802.11 b/g/n 2.4 GHz, Bluetooth 5 (LE), ceramic antenna with IPEX option
- IMU sensor: QMI8658 (3-axis accelerometer + 3-axis gyroscope)
- RTC: PCF85063 with battery holder
- USB Type-C (USB 1.1 Device/Host), auto programming chip (CH343P)
- microSD (TF) card support
- 3.7 V Li-Ion battery connector (MX1.25)
- Interfaces: UART, I2C, GPIO, 12-pin header
- Buttons: BOOT, RESET, battery power switch
- Indicators: charging status, power, buzzer
- Supported development environments: ESP-IDF, Arduino IDE
Included
- ESP32-S3-Touch-LCD-2.1B x1
- SH1.0 12PIN cable (~100 mm) x1
- SH1.0 4PIN cables (~100 mm) x2
