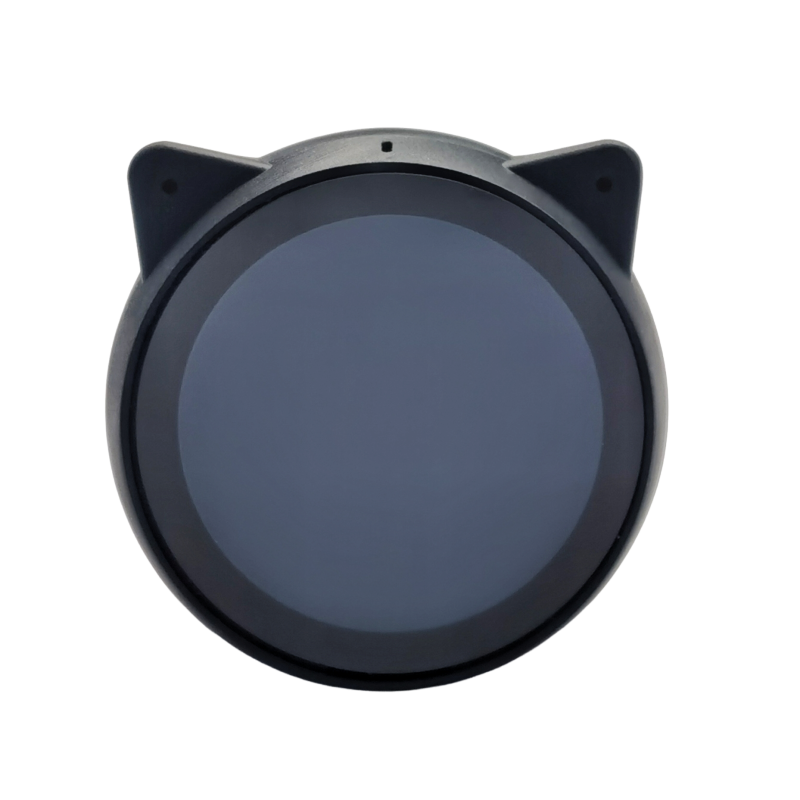

EchoEar - AI development kit with ESP32-S3-WROOM module and 1.85" display
ID: 1200943
zł239.00
Tax included
zł194.31 tax excl.
An intelligent AI development kit based on the ESP32-S3-WROOM-1-N16R16VA chip, designed for building advanced voice and multimedia interaction systems. The device supports 2.4 GHz Wi-Fi, Bluetooth 5 (LE), and offers integration with AI frameworks such as OpenAI and Gemini, enabling full-duplex voice communication. It features a 1.85-inch 360x360 touchscreen, dual microphones with sound source localization, and a 3W speaker for high-quality audio. With 16MB of Flash, 16MB of PSRAM, a microSD slot, 5V/3.7V power, and a USB-C connector, the EchoEar provides a comprehensive platform for building modern AI and IoT devices.
Description
EchoEar is an intelligent AI development kit designed for creating advanced voice interaction and multimedia systems. The device is perfect for projects such as smart toys, smart speakers, central control systems, and other products requiring high computing performance.
EchoEar is built around the ESP32-S3-WROOM-1-N16R16VA module, which supports Wi-Fi 2.4 GHz and Bluetooth 5 (LE), ensuring efficient wireless communication. With integration capabilities for large-scale AI models such as OpenAI, Xiaozhi AI, and Gemini, it enables full-duplex voice interaction, speech recognition, and intelligent AI agent control. The device features a 1.85-inch round QSPI touch display with a resolution of 360×360 pixels, using the ESP32-S3’s native touch sensors to provide an intuitive and interactive experience. It includes a dual LMA3729T381-OY3S microphone array supporting local voice wake-up and sound source localization, allowing for natural communication with the device. The built-in 3 W speaker delivers clear and powerful audio, ideal for interactive voice applications.

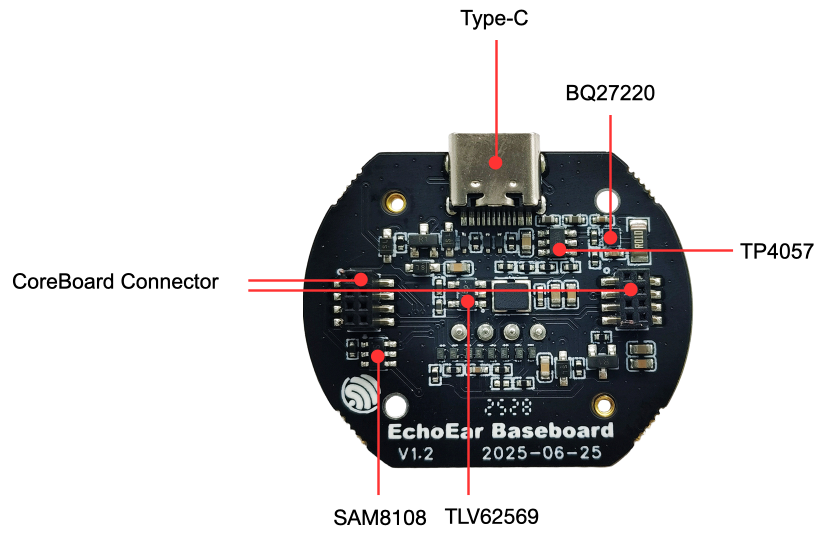

EchoEar comes with 16 MB of Flash and 16 MB of PSRAM, along with a microSD card slot supporting up to 32 GB, enabling storage of large multimedia datasets. The power system supports both 5 V DC input and 3.7 V lithium battery, providing flexibility for portable applications. Through its USB-C interface, the device can be easily charged, programmed, and debugged. The design also includes a Pogopin connector for convenient expansion with additional modules. EchoEar integrates several advanced electronic components, such as BQ27220 (battery management), TP4057 (charging controller), TLV62569 (DC/DC converter), and SAM8108 (power control). A single press of the POWER button allows users to easily turn the device on or off, simplifying testing and operation during development.
The kit is designed for AI solution developers who require a compact, powerful, and feature-rich platform for creating edge AI applications. By combining high performance, offline voice recognition, and extensive integration flexibility, EchoEar provides a solid foundation for next-generation intelligent device projects.
Features
- Main chip: ESP32-S3-WROOM-1-N16R16VA (16 MB Flash, 16 MB PSRAM)
- Processor: Dual 32-bit Xtensa LX7 + RISC-V ULP coprocessor
- Connectivity: Wi-Fi 2.4 GHz (802.11b/g/n) and Bluetooth 5 (LE)
- Display: 1.85” round QSPI touch screen (360 × 360 px)
- Microphones: 2 × LMA3729T381-OY3S
- Speaker: 3 W, 2-wire
- Offline voice recognition and sound source localization
- microSD slot: supports cards up to 32 GB
- Power supply: 5 V DC / 3.7 V Li-ion battery
- Charging: TP4057 controller (250 mA)
- Battery management: BQ27220 (level measurement, charging, power status)
- DC/DC converter: TLV62569 (5 V to 3.3 V)
- Power control: SAM8108 (POWER ON/OFF)
- USB-C interface: power, charging, programming, debugging
- Pogopin connector: for functional expansion
- AI model support: OpenAI, Xiaozhi AI, Gemini, and others
- Full-duplex voice communication and speech recognition
1200943
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Cable with USB typ A and USB typ C connectors, cable length 0.5 m. LANBERG
zł4.26
24h
Available quantity: 39
Available
Cable with USB typ A and USB typ C connectors, cable length 1 m. LANBERG CA-USBO-10CC-0010-BK
zł5.71
24h
Available quantity: 23
Available
Cable with USB typ A and USB typ C connectors, cable length 1,8 m. LANBERG CA-USBO-10CC-0018-BK
zł5.61
24h
Available quantity: 38
Available
Other products in the same category (16)
ESP32-S3-LCD-4 is an advanced development board with a 4" display, intended for high-level HMI, automation, and interactive system applications. The non-touch version offers a full set of industrial interfaces (RS485, CAN, I2C), integrated power management, and flexible mounting options. With high computational performance, ample memory resources, and support for ESP-IDF and Arduino IDE environments, it serves as a solid platform for implementing control and communication systems in end devices.
zł123.38
4 weeks
No product available!
ESP32-S3-Touch-LCD-1.85C is a complete solution for implementing projects with a graphical user interface, touch control, and audio processing. Thanks to its compact design and support for AI functions, the device is suitable for smart control terminals, portable HMI systems, and speech recognition applications.
zł145.53
4 weeks
No product available!
Board with WiFi and Bluetooth Espressif ESP32-C3 module. It offers 4MB Flash and 400KB SRAM and a LiPo charging circuit. The set includes an expansion board with a display connector. DFRobot DFR0868
zł35.23
4 weeks
No product available!
ESP32-S3-Touch-LCD-2.1 in the flat panel version is an advanced platform for developing interactive applications with a touch graphic interface. Thanks to its extensive feature set, including wireless connectivity, PSRAM memory, sensors, and battery power support, it is suitable for mobile devices, HMI interfaces, monitoring systems, and IoT projects.
zł155.05
4 weeks
No product available!
Development board based on a microcontroller with a RISC-V core. It offers support for WiFi 6, Bluetooth 5 and Zigbee 3.0 and Thread (IEEE 802.15.4) protocols. It uses the ESP32-C6-WROOM-1-N8 module and is compatible with ESP32-C6-DevKitC-1-N8. Waveshare ESP32-C6-DEV-KIT-N8-M
zł36.60
4 weeks
No product available!
Small AI development board based on ESP32-S3 SoC with integrated WiFi 802.11 b/g/n and BLE transceiver. It has a built-in 2 MP camera, LCD display and microphone. Espressif ESP32-S3-EYE
zł288.99
24h
Available quantity: 2
Available
ESP32-S3-Touch-LCD-3.5-C is a versatile development board with a touch display, enclosed in a compact case and equipped with an OV5640 camera. Integrated communication, audio, and sensor systems enable the development of advanced applications in image recognition, voice interaction, and automation. An excellent platform for rapid prototyping of HMI devices, smart terminals, and user interface-equipped devices.
zł155.19
4 weeks
No product available!
ESP32-C3-LCD-0.71-B is a compact, energy-efficient module with an IPS display and wireless connectivity, featuring a protective enclosure and lens. Ideal for portable projects such as watches, graphic interface sensors, simulation systems, or touch-controlled devices. With support for LVGL and flexible expansion options, it is suitable for a wide range of embedded applications.
zł57.26
24h
Available quantity: 3
Available

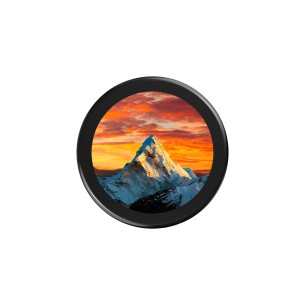

This 32-bit RISC-V development board, running at up to 160 MHz, is designed for AIoT and human-computer interface applications. Featuring a 1.43-inch, 466x466-pixel AMOLED display and an FT6146 touch controller, it delivers detailed graphics and interactive experiences. The board features Wi-Fi 6, Bluetooth 5, and Zigbee/Thread connectivity, dual digital microphones, audio playback and recording, and the ability to connect a lithium battery or power via USB-C. ESP32-C6-Touch-AMOLED-1.43
