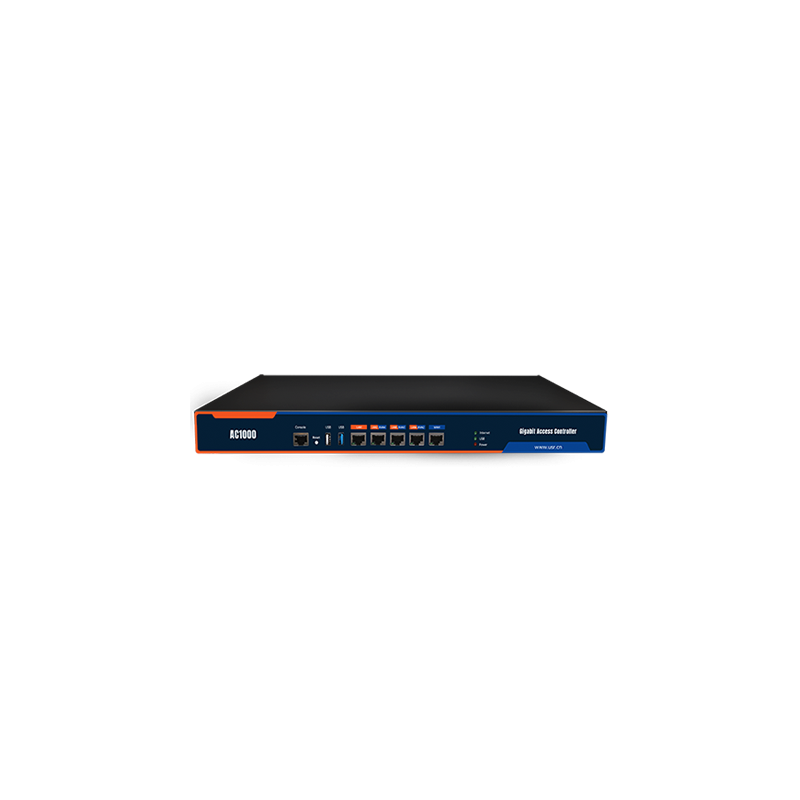

AC1000 - Wireless access controller, central AP management
ID: 1200621
zł329.44
Tax included
zł267.84 tax excl.
The AC1000 controller designed for WiFi network management in small and medium installations enables central management of up to 200 access points and 100 users. It supports gigabit connections, provides carrier-class functions, and offers the option of rack or desktop installation.
Description
The AC1000 access controller enables centralized management of access points in small and medium-sized network installations. It supports up to 200 access points and 100 concurrent users. The device allows access control, authorization, configuration, monitoring, and WiFi network security management while providing centralized management of network topology and devices. Operation in router or bypass mode allows flexible adaptation to centralized and distributed networks.
Integrated 1 Gbps WAN and LAN ports provide ten times higher throughput compared to 100 Mbps ports, enabling compatibility with high-speed fiber connections. The device runs on the OpenWrt system and allows remote management via PUSR Cloud. The accelerated roaming function enables faster handoff between access points for clients. The metal enclosure improves heat dissipation and reduces electromagnetic interference. It can be mounted in a 1U rack or placed on a desk.
Properties
- Supports up to 200 access points and 100 concurrent users
- 1 × WAN 10/100/1000M, 4 × LAN 10/100/1000M
- Processor: MTK MT7621AT, 880 MHz, dual-core
- DDR3 memory: 2 Gbit, NOR Flash: 128 Mbit
- 1 × RJ45 console port, 1 × USB2.0 port, 1 × USB3.0 port
- Power consumption ≤12 W
- Supports router and access point modes
- Management via HTTP Web GUI and remotely via PUSR Cloud
- Supports seamless roaming, NAT, QoS, IP binding, port mapping
- Operating system: OpenWrt
- Dimensions: 440 × 250 × 44.5 mm
- Mounting: desktop or 19" rack (1U)
- Operating temperature range: 0°C to 45°C
1200621
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
