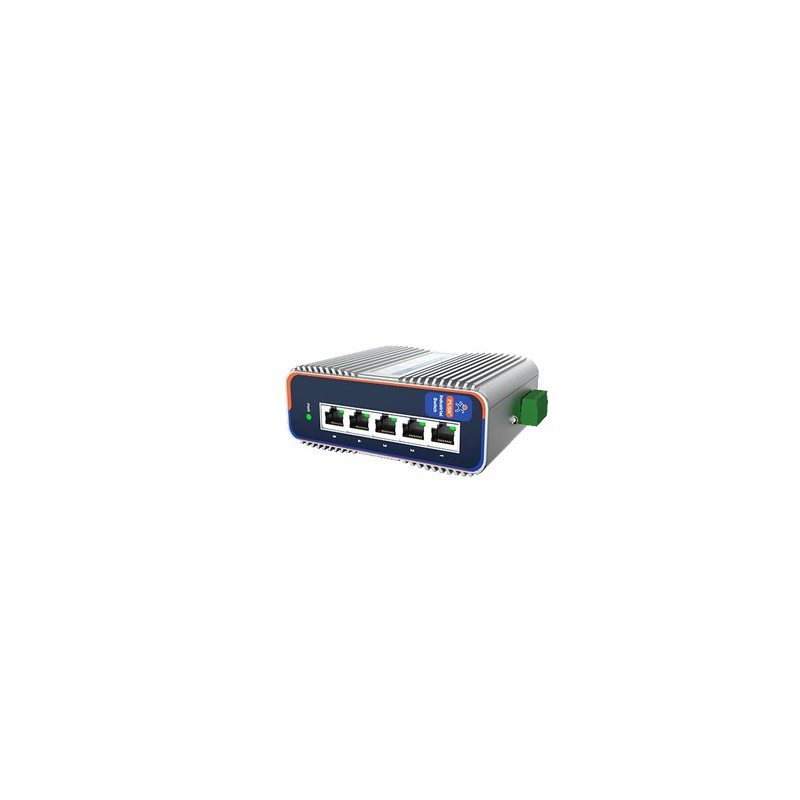

USR-ISF1005 - Industrial 5-port Ethernet switch 10/100 Mbps
ID: 1200622
zł83.95
Tax included
zł68.25 tax excl.
Industrial switch USR-ISF1005 offers 5 Ethernet 10/100 Mbps ports, a wide power supply range, and resistance to harsh environmental conditions. Designed for use in automation systems, monitoring, transportation, and energy sectors, it ensures reliable connections in industrial networks.
Description
The unmanaged industrial switch USR-ISF1005 equipped with 5 RJ45 10/100 Mbps ports enables the creation of reliable industrial networks in demanding environments. Compliance with IEEE 802.3 and 802.3u standards ensures full compatibility with Ethernet networks. The aluminum enclosure with IP40 protection rating ensures effective heat dissipation and protection against dust.
It supports redundant power supply within a wide voltage range from 9.6 V to 60 V DC with reverse polarity and overcurrent protection. Compatibility with DIN rail mounting (35 mm) allows easy deployment in automation cabinets, monitoring systems, or transportation infrastructure. The operating temperature range from -40°C to +85°C allows use in industrial applications, even in harsh environmental conditions.
Properties
- 5 × 10/100 Mbps RJ45 ports, auto MDI/MDIX
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards
- Backplane bandwidth: 1 Gbps
- Packet buffer: 768 Kbit
- MAC addresses: 2K
- Power supply: DC 9.6–60 V, 5-pin connector
- Power consumption: <5 W
- Protection against reverse polarity and overload
- Aluminum enclosure IP40
- Mounting: DIN rail or desktop
- Dimensions: 118 × 96 × 47.5 mm
- Weight: 410 g
- Operating temperature: -40°C to +85°C
- EMC resistance: ESD ±8 kV (air), ±6 kV (contact), EFT, surge (Level 3)
- Certification: CE
