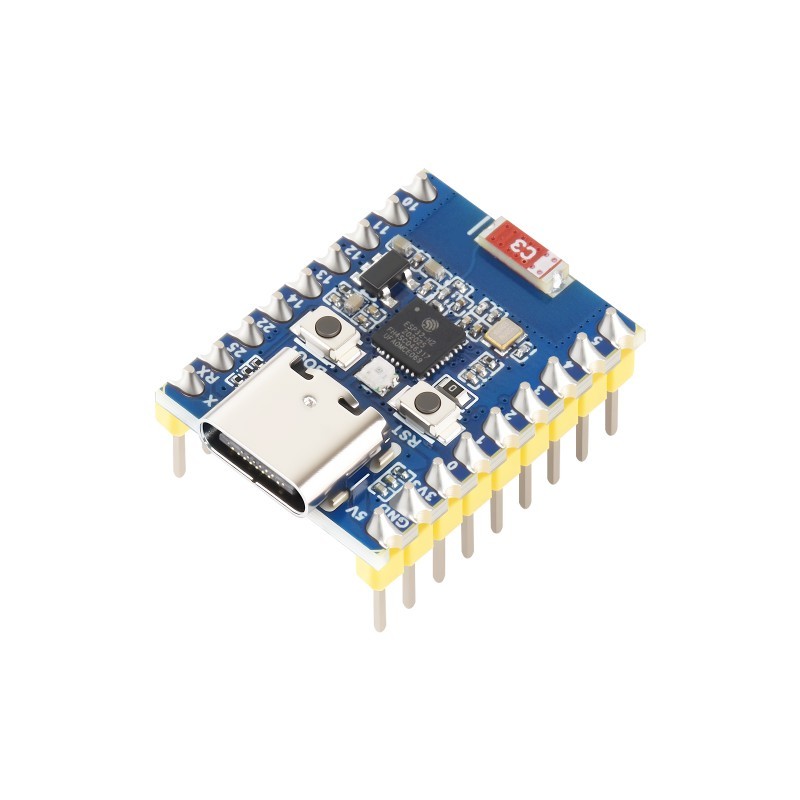

ESP32-H2-Zero-M development board with pre-soldered goldpin connectors and BLE/Zigbee/Thread connectivity – Waveshare 32260
search
  • ESP32-H2-Zero-M development board with pre-soldered goldpin connectors and BLE/Zigbee/Thread connectivity – Waveshare 32260
  • ESP32-H2-Zero-M development board with pre-soldered goldpin connectors and BLE/Zigbee/Thread connectivity – Waveshare 32260
  • ESP32-H2-Zero-M development board with pre-soldered goldpin connectors and BLE/Zigbee/Thread connectivity – Waveshare 32260
  • ESP32-H2-Zero-M development board with pre-soldered goldpin connectors and BLE/Zigbee/Thread connectivity – Waveshare 32260
ID: 1201206
zł19.56
Tax included

zł15.90 tax excl.

ESP32-H2-Zero-M is a ready-to-use board with pre-soldered connectors, equipped with the ESP32-H2FH4S microcontroller and support for BLE, Zigbee and Thread. Designed for rapid prototyping in wireless communication systems, automation and IoT devices.

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-H2-Zero-M is the version of the ESP32-H2-Zero development board with factory pre-soldered goldpin connectors, based on the ESP32-H2FH4S microcontroller with a 32-bit RISC-V core clocked up to 96 MHz. Equipped with 4 MB Flash memory and supporting BLE 5, Zigbee 3.0 and Thread communication, it serves as a ready-to-use platform for wireless communication, automation and IoT projects.

Thanks to the support for SPI, UART, I2C, I2S, PWM and ADC interfaces, the board provides great flexibility in connecting sensors and peripheral modules. The USB Type-C connector enables easy programming and power supply, and support for ESP-IDF and Arduino IDE facilitates integration in various development environments. The board is ready for mounting on a breadboard or in test enclosures.

Properties

  • ESP32-H2FH4S microcontroller with 32-bit RISC-V core, clocked up to 96 MHz
  • Built-in 4 MB Flash memory
  • Support for BLE 5, Zigbee 3.0, Thread (IEEE 802.15.4)
  • Pre-soldered goldpin connectors
  • USB Type-C interface for programming and debugging
  • Integrated 2.4 GHz ceramic antenna
  • WS2812 RGB LED, BOOT and RESET buttons
  • Peripheral interfaces: SPI, UART, I2C, I2S, PWM, ADC
  • Support for ESP-IDF, Arduino IDE
  • Dimensions: 23.5 × 18 mm
