ESP32-C6 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi 6 and Bluetooth 5. ESP32-C6-Touch-AMOLED-1.32

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

ESP32-C6 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi 6 and Bluetooth 5
ESP32-C6 1.32inch AMOLED Display Development Board

Embedded with CO5300 Display Driver and CST820 Capacitive Touch Chip

Waveshare 32766Waveshare 32766
Features

TheESP32-C6-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.

  • Equipped with ESP32-C6 high-performance 32-bit RISC-V processor, up to 160MHz main frequency
  • Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM and 16MB Flash memory
  • Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
  • Built-in CO5300 display driver and CST820 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
  • Onboard PWR and BOOT programmable buttons for easy custom function development
  • Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
  • Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
  • Adapting SH1.0 12PIN expansion interface for DIY functionality expansion
  • Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
AMOLED parameters
Display Panel AMOLED Display Size 1.32 inch
Resolution 466 × 466 pixels Display Colors 16.7M
Brightness 500 cd/? Contrast Ratio 10000:1
Communication Interface QSPI Driver IC CO5300
Touch Supported Touch IC CST820
Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, and Can Realize Human-machine Interaction Function. Supports connecting to a Batt. for independent operation

Waveshare 32766

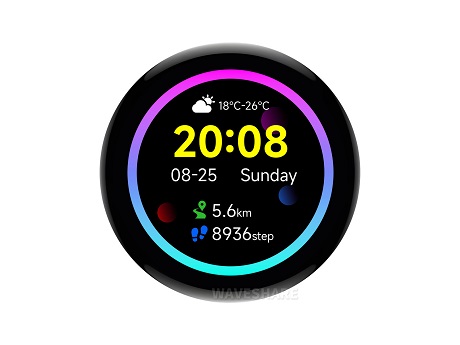

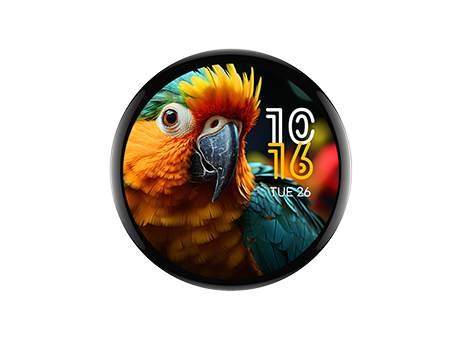

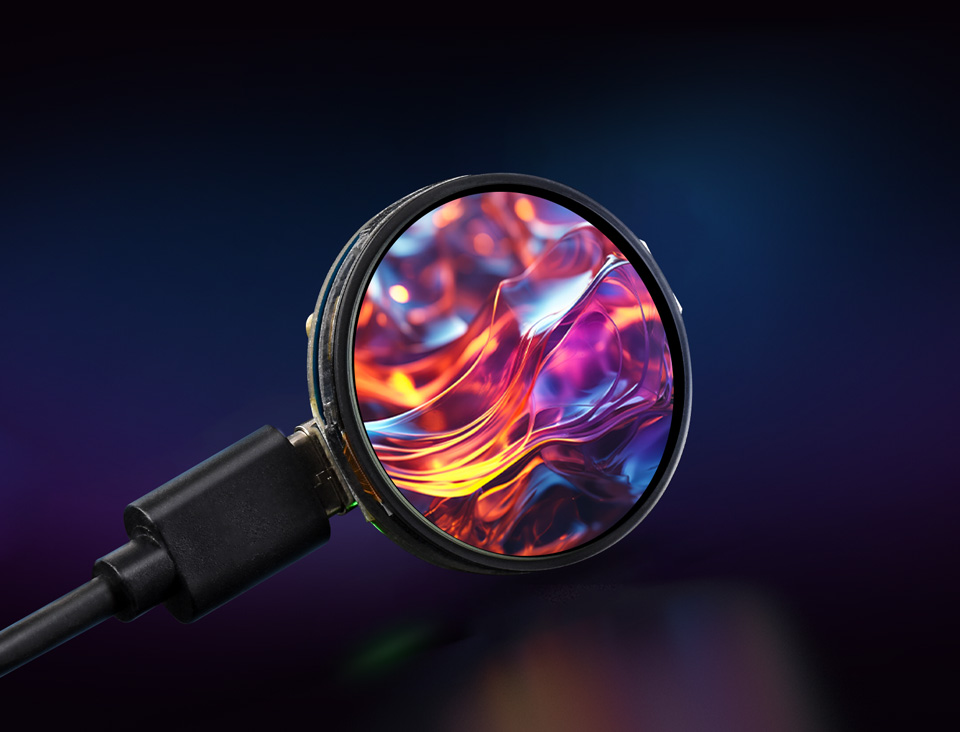

Adopts AMOLED screen

The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images

Waveshare 32766

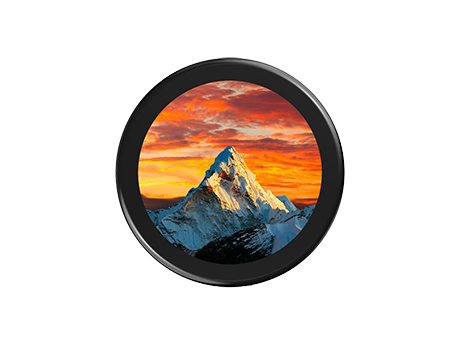

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

Waveshare 32766
Onboard audio codec chip

Supports high-quality audio processing, providing clear and high-quality audio input and output

Waveshare 32766

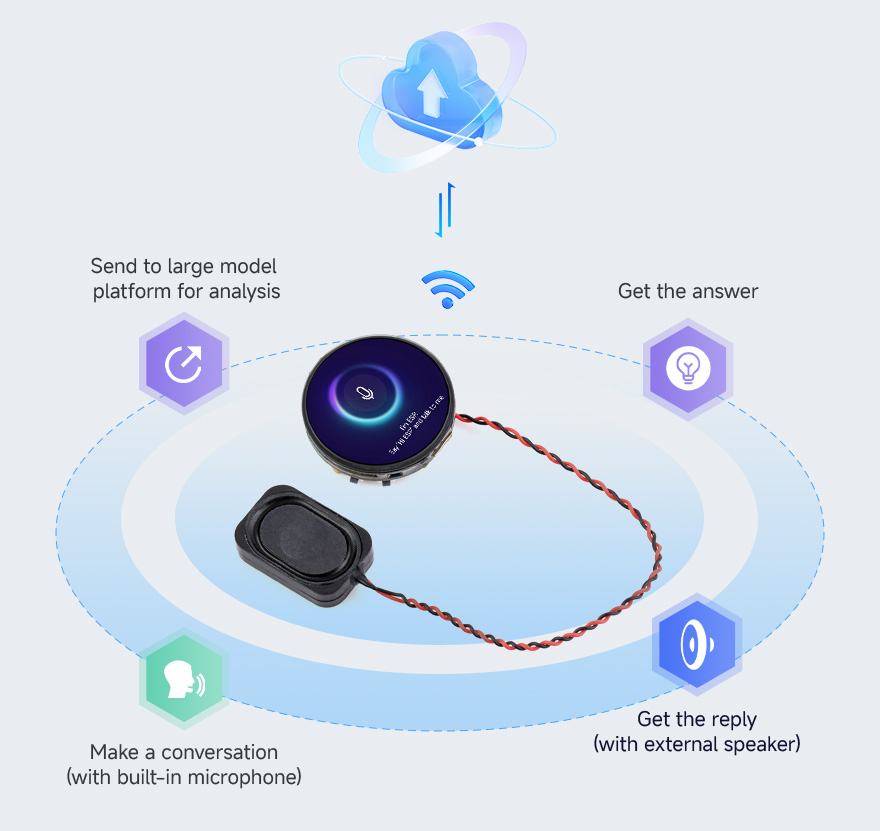

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

Waveshare 32766
Waveshare 32766

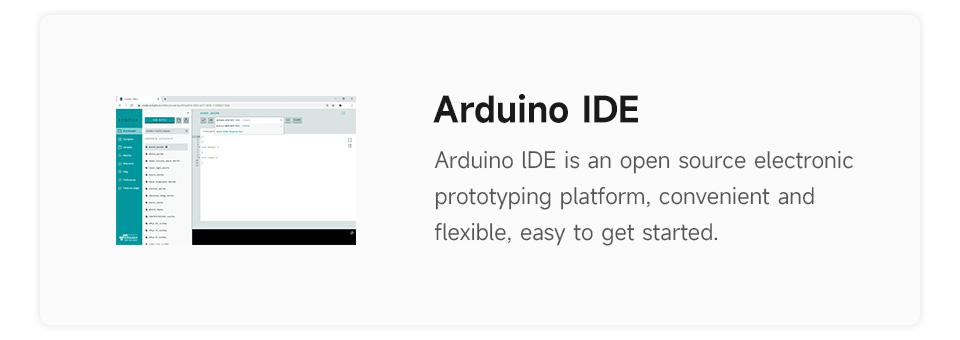

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, tutorials to help you easily get started

Waveshare 32766Waveshare 32766

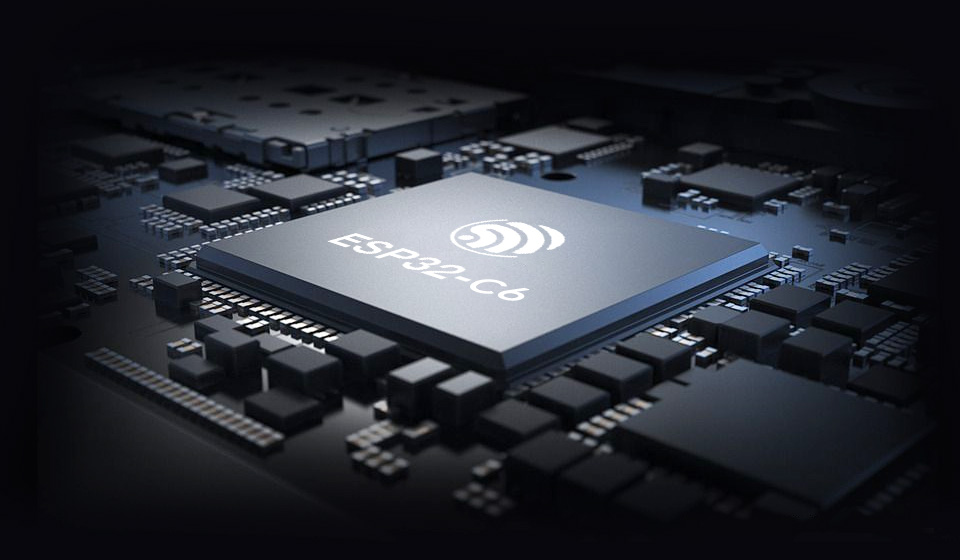

ESP32-C6 suitable for AIoT applications

Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor

Waveshare 32766

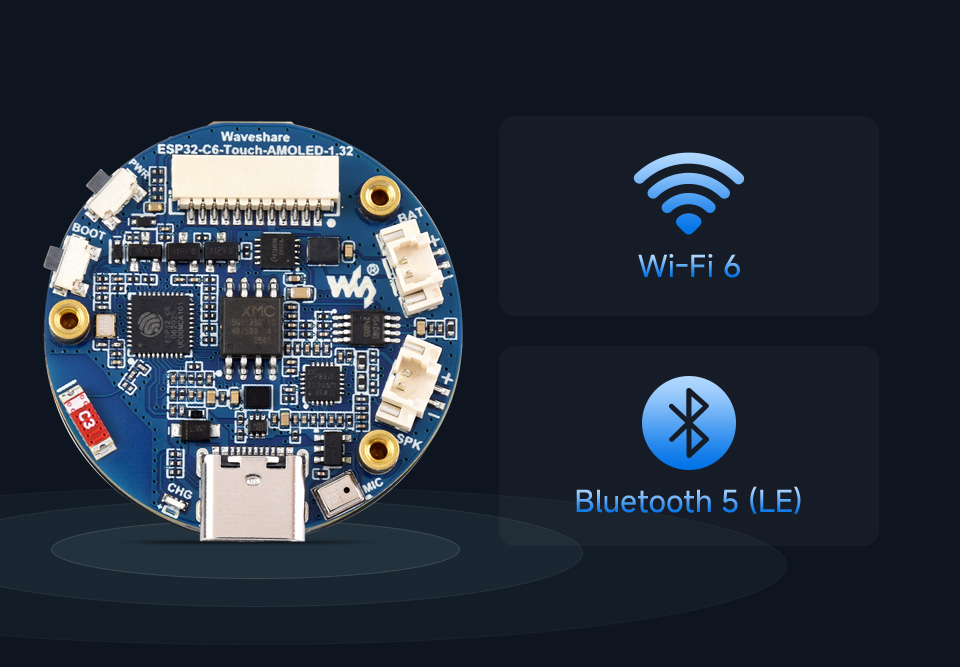

Wi-Fi 6 and BLE 5 support

Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

Waveshare 32766
What's On Board
Waveshare 32766

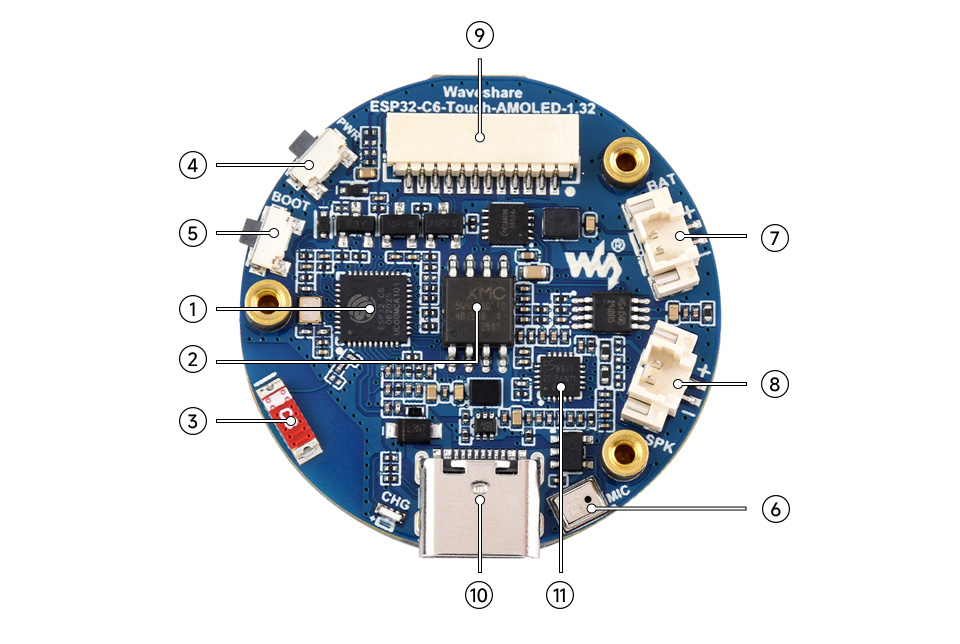

  1. ESP32-C6RISC-V 32-bit single-core processor, up to 160MHz operating frequency, with 2.4GHz Wi-Fi 6 and BLE 5 support
  2. W25Q128JVSI16MB Flash
  3. Onboard antenna Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  4. PWR button for power supply ON/OFF when powered by Lithium Batt., driver required
  5. BOOT button Press and hold the BOOT button, then power up again to enter download mode
  1. Microphonefor audio capture
  2. MX1.25 2PIN Lithium Batt. header for 3.7V Lithium Batt., supports charging and discharging
  3. MX1.25 2PIN speaker header Audio signal output, supports connecting external speakers
  4. SH1.0 12PIN interfacefor external device connection and debugging, allowing flexible configuration of peripheral functions
  5. Type-C portfor program burning and log printing
  6. ES8311High-performance and low-power audio codec chip

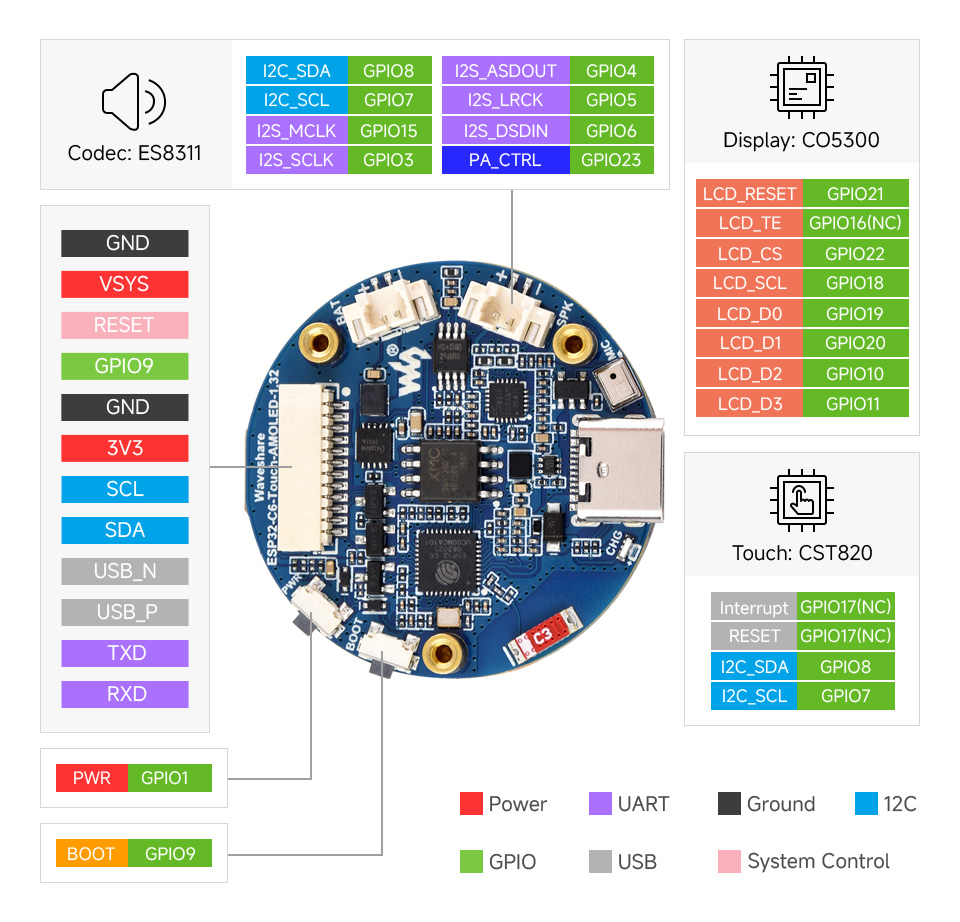

interface definition
Waveshare 32766

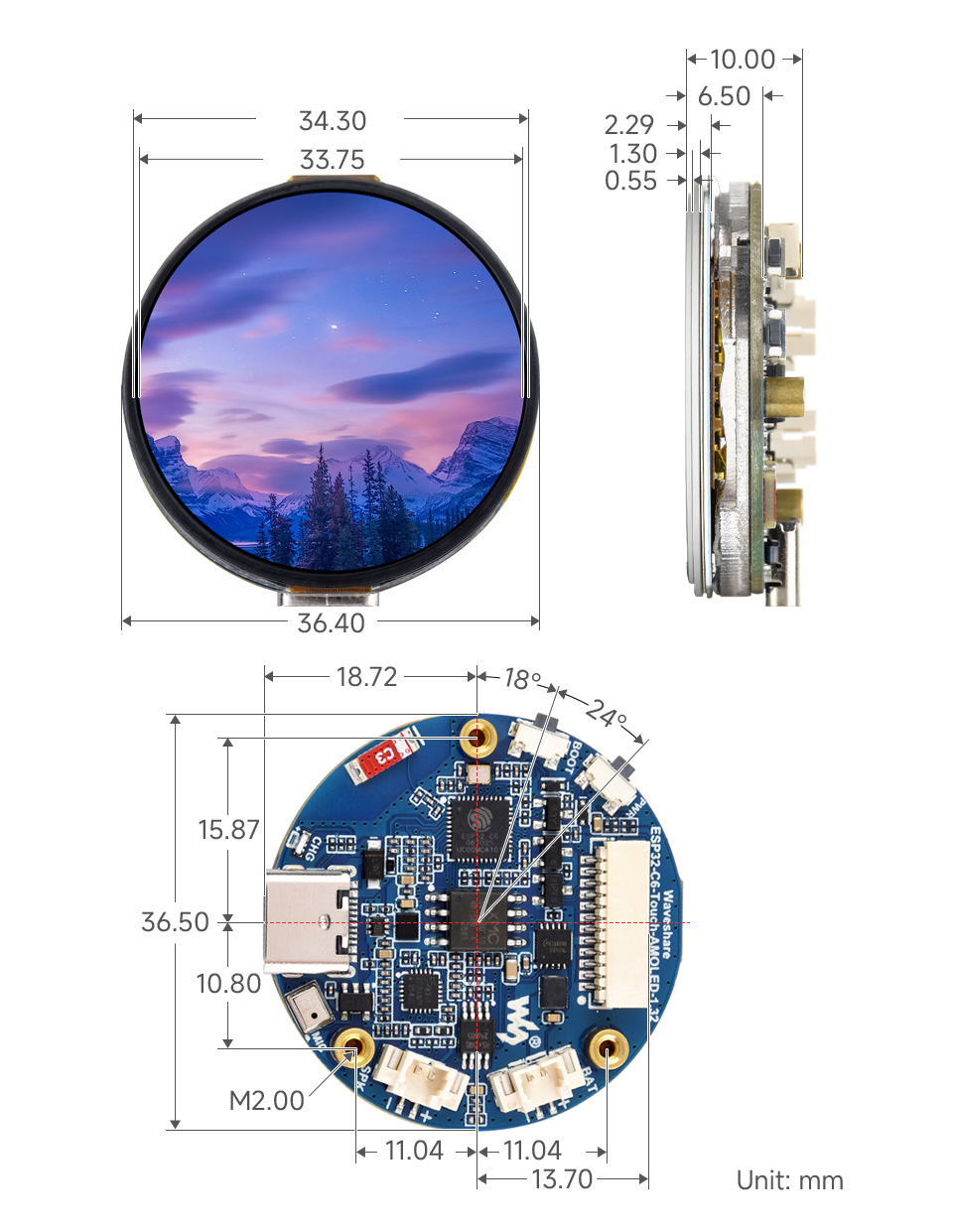

outline dimensions
Waveshare 32766

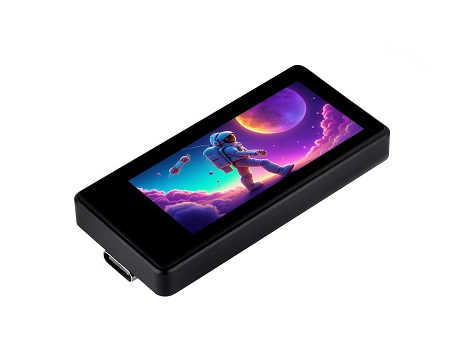

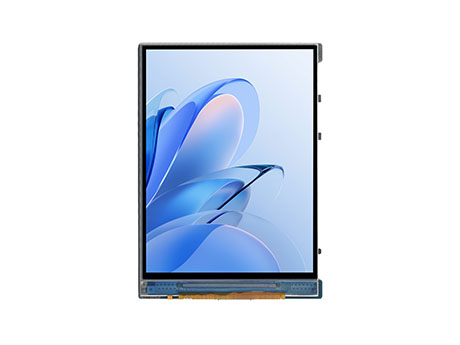

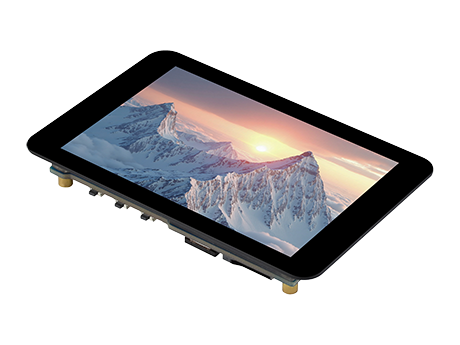

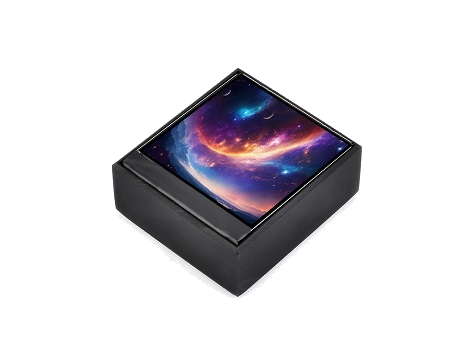

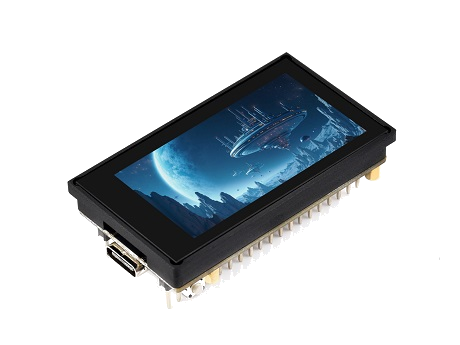

ESP32 LCD Selection
Waveshare 32766ESP32-C6-Touch-LCD-1.83ESP32-C6-16MB240 × 284SPIST7789PCST816D??????Reserved I2C, UART, USB pads
Model Core Configuration display onboard resources Peripheral interfaces
CPU PSRAM Flash pixels Interface Display Touch IMU RTC TF Speaker mic batteryheader
AMOLED display
Waveshare 32766ESP32-S3-Touch-AMOLED-2.41 ESP32-S3R8 8MB 16MB 600 × 450 QSPI RM690B0 FT6336 ? ? ? - - ? I2C, UART, USB, 34PIN GPIO header
Waveshare 32766ESP32-S3-Touch-AMOLED-2.41-B ESP32-S3R8 8MB 16MB 600 × 450 QSPI RM690B0 FT6336 ? ? ? - - ? I2C, UART, USB, 34PIN GPIO header, with case
Waveshare 32766ESP32-S3-Touch-AMOLED-2.06 ESP32-S3R8 8MB 32MB 410 × 502 QSPI CO5300 FT3168 ? ? ? ? ? ? I2C, UART, and USB reserved pads
Waveshare 32766ESP32-C6-Touch-AMOLED-2.06 ESP32-C6 - 16MB 410 × 502 QSPI CO5300 FT3168 ? ? - ? ? ? I2C, UART, and USB reserved pads
Waveshare 32766ESP32-S3-Touch-AMOLED-1.91 ESP32-S3R8 8MB 16MB 240 × 536 QSPI RM67162 FT3168 ? - ? - - ? 40PIN header
Waveshare 32766ESP32-S3-AMOLED-1.91 ESP32-S3R8 8MB 16MB 240 × 536 QSPI RM67162 - ? - ? - - ? 40PIN header
Waveshare 32766ESP32-S3-Touch-AMOLED-1.8 ESP32-S3R8 8MB 16MB 368 × 448 QSPI SH8601 FT3168 ? ? ? ? ? ? I2C, UART, GPIO pads
Waveshare 32766ESP32-S3-Touch-AMOLED-1.75 ESP32-S3R8 8MB 16MB 466 × 466 QSPI CO5300 CST9217 ? ? ? ? ? ? I2C, UART, USB, 8PIN headers (2.54mm pitch)
Waveshare 32766ESP32-S3-Touch-AMOLED-1.75-B ESP32-S3R8 8MB 16MB 466 × 466 QSPI CO5300 CST9217 ? ? ? ? ? ? I2C, UART, USB, 8PIN headers (2.54mm pitch)
Waveshare 32766ESP32-S3-Touch-AMOLED-1.64 ESP32-S3R8 8MB 16MB 280 × 456 QSPI CO5300 FT3168 ? - ? - - ? 2 × 11PIN headers (2.54mm pitch)
Waveshare 32766ESP32-C6-Touch-AMOLED-1.43 ESP32-C6 - 16MB 466 × 466 QSPI CO5300 FT6146 ? ? ? ? ? ? UART, I2C, 16PIN header (2.54mm pitch)
Waveshare 32766ESP32-C6-Touch-AMOLED-1.43-B ESP32-C6 - 16MB 466 × 466 QSPI CO5300 FT6146 ? ? ? ? ? ? UART, I2C, 16PIN header (2.54mm pitch)
Waveshare 32766ESP32-S3-Touch-AMOLED-1.43 ESP32-S3R8 8MB 16MB 466 × 466 QSPI SH8601/C05300 FT3168/FT6146 ? ? ? - - ? I2C, UART, USB, 2 × 14PIN headers
Waveshare 32766ESP32-S3-Touch-AMOLED-1.43-B ESP32-S3R8 8MB 16MB 466 × 466 QSPI SH8601/C05300 FT3168/FT6146 ? ? ? - - ? I2C, UART, USB, 2 × 14PIN headers
Waveshare 32766ESP32-C6-Touch-AMOLED-1.32 ESP32-C6 - 16MB 466 × 466 QSPI CO5300 CST820 - - - ? ? ? SH1.0 12PIN header
Waveshare 32766ESP32-S3-Touch-AMOLED-1.32 ESP32-S3-PICO-1-N8R8 8MB 8MB 466 × 466 QSPI CO5300 CST820 - - - ? ? ? SH1.0 12PIN header
LCD display
Waveshare 32766 ESP32-Touch-LCD-3.5 ESP32-D0WDR2-V3 2MB 16MB 320 × 480 SPI ST7796 FT6336 - ? ? ? ? ? 32PIN GPIO header
Waveshare 32766 ESP32-S3-Touch-LCD-3.5 ESP32-S3R8 8MB 16MB 320 × 480 SPI ST7796 FT6336 ? ? ? ? ? ? 32PIN GPIO header, camera interface
Waveshare 32766 ESP32-S3-Touch-LCD-3.5 ESP32-S3R8 8MB 16MB 320 × 480 SPI ST7796 FT6336 ? ? ? ? ? ? 32PIN GPIO header, camera interface
Waveshare 32766 ESP32-S3-Touch-LCD-3.5B ESP32-S3R8 8MB 16MB 320 × 480 QSPI AXS15231B AXS15231B ? ? ? ? ? ? 32PIN GPIO header, camera interface
Waveshare 32766 ESP32-S3-Touch-LCD-3.5B ESP32-S3R8 8MB 16MB 320 × 480 QSPI AXS15231B AXS15231B ? ? ? ? ? ? 32PIN GPIO header, camera interface
Waveshare 32766 ESP32-S3-Touch-LCD-3.49 ESP32-S3R8 8MB 16MB 172 × 640 QSPI AXS15231B AXS15231B ? ? ? ? ? ? 22pin 2.54mm pitch pads
Waveshare 32766ESP32-S3-Touch-LCD-3.49B ESP32-S3R8 8MB 16MB 172 × 640 QSPI AXS15231B AXS15231B ? ? ? ? ? ? 22pin 2.54mm pitch pads
Waveshare 32766ESP32-S3-LCD-3.16 ESP32-S3R8 8MB 16MB 320 × 820 RGB ST7701 - ? ? ? - - ? I2C, UART, USB headers
Waveshare 32766ESP32-S3-Touch-LCD-2.8 ESP32-S3R8 8MB 16MB 240 × 320 SPI ST7789 CST328 ? ? ? ? - ? I2C, UART, SH1.0 12PIN header
Waveshare 32766ESP32-S3-LCD-2.8 ESP32-S3R8 8MB 16MB 240 × 320 SPI ST7789 - ? ? ? ? - ? I2C, UART, SH1.0 12PIN header
Waveshare 32766ESP32-S3-Touch-LCD-2.8B ESP32-S3R8 8MB 16MB 480 × 640 RGB ST7701 GT911 ? ? ? - - ? 20PIN header
Waveshare 32766ESP32-S3-LCD-2.8B ESP32-S3R8 8MB 16MB 480 × 640 RGB ST7701 - ? ? ? - - ? 20PIN header
Waveshare 32766ESP32-S3-Touch-LCD-2.8C ESP32-S3R8 8MB 16MB 480 × 480 RGB ST7701 GT911 ? ? ? - - ? I2C, UART, SH1.0 12PIN header
Waveshare 32766ESP32-S3-LCD-2.8C ESP32-S3R8 8MB 16MB 480 × 480 RGB ST7701 - ? ? ? - - ? I2C, UART, SH1.0 12PIN header
Waveshare 32766ESP32-S3-Touch-LCD-2.1 ESP32-S3R8 8MB 16MB 480 × 480 RGB ST7701 CST820 ? ? ? - - ? I2C, UART, SH1.0 12PIN header
Waveshare 32766ESP32-S3-Touch-LCD-2.1B ESP32-S3R8 8MB 16MB 480 × 480 RGB ST7701 CST820 ? ? ? - - ? I2C, UART, SH1.0 12PIN header
Waveshare 32766ESP32-S3-Touch-LCD-2 ESP32-S3R8 8MB 16MB 240 × 320 SPI ST7789T3 CST816 ? - ? - - ? 28PIN header, camera interface
Waveshare 32766ESP32-S3-LCD-2 ESP32-S3R8 8MB 16MB 240 × 320 SPI ST7789T3 - ? - ? - - ? 28PIN header, camera interface
Waveshare 32766ESP32-S3-Touch-LCD-1.9 ESP32-S3R8 8MB 16MB 170 × 320 SPI ST7789 CST816 ? - ? - - ? 40PIN header, compatible with Pico header
Waveshare 32766ESP32-S3-LCD-1.9 ESP32-S3R8 8MB 16MB 170 × 320 SPI ST7789 - ? - ? - - ? 40PIN header, compatible with Pico header
Waveshare 32766ESP32-C6-Touch-LCD-1.9 ESP32-C6FH8 - 8MB 170 × 320 SPI ST7789 CST816 ? - ? - - ? 40PIN header, compatible with Pico header
Waveshare 32766ESP32-C6-LCD-1.9 ESP32-C6FH8 - 8MB 170 × 320 SPI ST7789 - ? - ? - - ? 40PIN header, compatible with Pico header
Waveshare 32766ESP32-S3-Touch-LCD-1.85C ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 CST816 - ? ? ? ? ? I2C, UART, 2×14PIN header (1.27mm pitch)
Waveshare 32766ESP32-S3-Touch-LCD-1.85C-BOX ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 CST816 - ? ? ? ? ? I2C, UART, 2×14PIN header (1.27mm pitch)
Waveshare 32766ESP32-S3-Touch-LCD-1.85 ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 CST816 ? ? ? ? ? ? I2C, UART, GPIO pads
Waveshare 32766ESP32-S3-LCD-1.85 ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 - ? ? ? ? ? ? I2C, UART, GPIO pads
Waveshare 32766ESP32-S3-Touch-LCD-1.83 ESP32-S3R8 8MB 16MB 240 × 284 SPI ST7789P CST816D ? ? ? ? ? ? Reserved I2C, UART, USB pads
Waveshare 32766ESP32-C6-Touch-LCD-1.69 ESP32-C6 - 16MB 240 × 280 SPI ST7789V2 CST816T ? ? - ? ? ? Reserved USB, I2C, UART, and GPIO pads
Waveshare 32766ESP32-C6-LCD-1.69 ESP32-C6 - 16MB 240 × 280 SPI ST7789V2 - ? ? - ? ? ? Reserved USB, I2C, UART, and GPIO pads
Waveshare 32766ESP32-S3-Touch-LCD-1.69 ESP32-S3R8 8MB 16MB 240 × 280 SPI ST7789 CST816 ? ? - - - ? I2C, UART, GPIO pads
Waveshare 32766ESP32-S3-LCD-1.69 ESP32-S3R8 8MB 16MB 240 × 280 SPI ST7789 - ? ? - - - ? SH1.0 12PIN header
Waveshare 32766ESP32-S3-Touch-LCD-1.47 ESP32-S3R8 8MB 16MB 172 × 320 SPI JD9853 AXS5106L - - ? - - ? 22PIN header
Waveshare 32766ESP32-S3-LCD-1.47 ESP32-S3R8 8MB 16MB 172 × 320 SPI ST7789 - - - ? - - - 18PIN header
Waveshare 32766ESP32-S3-LCD-1.47B ESP32-S3R8 8MB 16MB 172 × 320 SPI ST7789 - ? - ? - - ? 18PIN header
Waveshare 32766ESP32-C6-Touch-LCD-1.47 ESP32-C6FH8 - 8MB 172 × 320 SPI JD9853 AXS5106L ? - ? - - ? 22PIN header
Waveshare 32766ESP32-C6-LCD-1.47 ESP32-C6FH8 - 8MB 172 × 320 SPI ST7789 - - - ? - - - 18PIN header
Waveshare 32766ESP32-S3-Touch-LCD-1.46B ESP32-S3R8 8MB 16MB 412 × 412 QSPI SPD2010 SPD2010 ? ? ? ? ? ? 20pin GPIO header
Waveshare 32766ESP32-S3-Touch-LCD-1.46 ESP32-S3R8 8MB 16MB 412 × 412 QSPI SPD2010 SPD2010 ? ? ? ? ? ? 20pin GPIO header
Waveshare 32766ESP32-S3-LCD-1.3 ESP32-S3R8 8MB 16MB 240 × 240 SPI ST7789 - ? - ? - - ? 2.54mm 13PIN header
Waveshare 32766ESP32-S3-LCD-1.3-B ESP32-S3R8 8MB 16MB 240 × 240 SPI ST7789 - ? - ? - - ? 2.54mm 13PIN header, with case
Waveshare 32766ESP32-S3-LCD-1.3-C ESP32-S3R8 8MB 16MB 240 × 240 SPI ST7789 - ? - ? - - ? 2.54mm 13PIN header, with case and prism cube
Waveshare 32766ESP32-S3-Touch-LCD-1.28 ESP32-S3R2 2MB 16MB 240 × 240 SPI GC9A01A CST816 ? - - - - ? SH1.0 12PIN header
Waveshare 32766ESP32-S3-LCD-1.28 ESP32-S3R2 2MB 16MB 240 × 240 SPI GC9A01A - ? - - - - ? 2 × 20PIN header (1.27mm pitch)
Waveshare 32766ESP32-C3-LCD-0.71 ESP32-C3FH4 - 4MB 160 × 160 SPI GC9D01 - - - - - - ? 12PIN GPIO pads
Waveshare 32766ESP32-S3-GEEK ESP32-S3R2 2MB 16MB 240 × 135 SPI GC9A01A - - - ? - - - I2C, UART, GPIO

W zestawie

  1. ESP32-C6-Touch-AMOLED-1.32 x1
  2. 8? 2W speaker x1
  3. SH1.0 12PIN cable x1
1Waveshare 32766
2Waveshare 32766
3Waveshare 32766
