Development board with ESP32-S3, featuring a 7inch IPS 1024x600 display with capacitive touch, 2.4GHz Wi-Fi and Bluetooth, CAN, RS485, I2C and USB-C interfaces, LVGL support. Waveshare ESP32-S3-Touch-LCD-7B

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-S3 LCD 7B development board uses the ESP32-S3-WROOM-1-N16R8 module, enabling implementation of advanced IoT projects and HMI systems. The design includes a 7 inch IPS display with 1024 x 600 resolution, providing wide viewing angles and smooth operation of graphical interfaces such as LVGL-based applications.



The described version includes a capacitive touch panel supporting up to 5 touch points, communicating via the I2C interface. This allows implementation of interactive control panels, operator terminals and data visualization systems.

The module supports 2.4 GHz Wi-Fi and Bluetooth 5 LE via the onboard antenna. The board features multiple communication interfaces including CAN, RS485, I2C and UART, enabling integration with automation systems, sensors and industrial devices.

Additional functions include backlight adjustment and battery voltage monitoring. Large Flash and PSRAM memory enable handling of advanced graphical and system applications.

              p1203964-onboard-main.jpg       p1203964-e89a4f32-9c8b-47b6-ab51-4b7c83dbe2cb.png

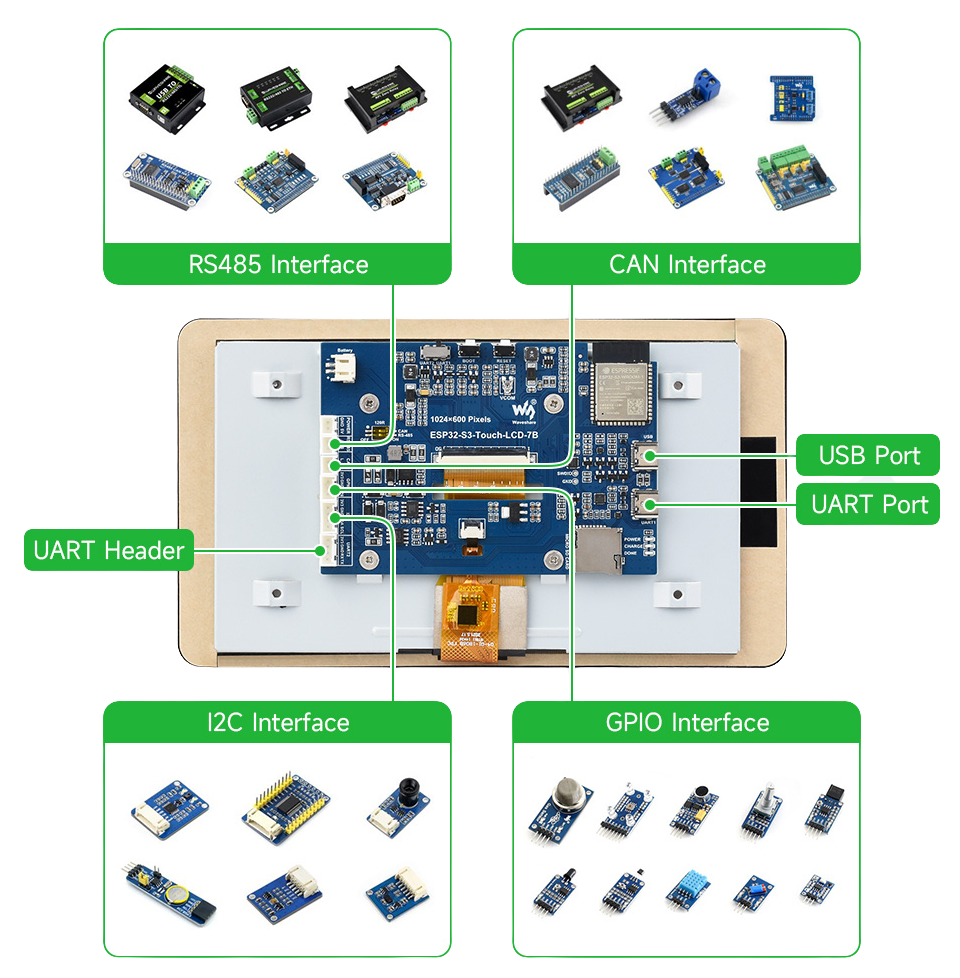

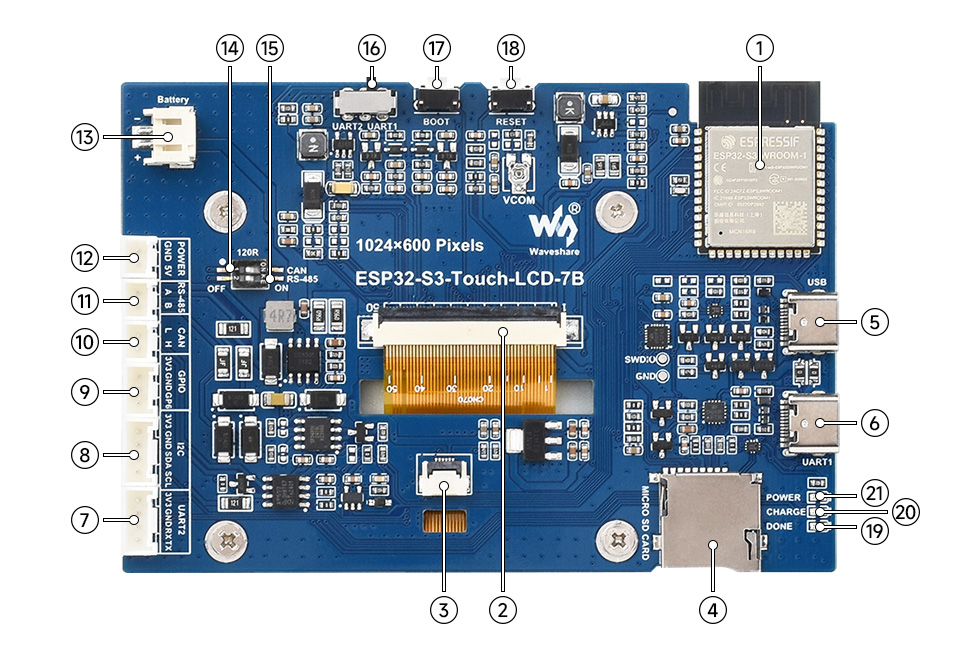

  1. ESP32-S3-WROOM-1-N16R8 module - The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
  2. Display panel connector
  3. Touch panel connector
  4. TF card slot
  5. USB Type-C port
  6. UART1 Port - USB TO UART Type-C port
  7. UART2 header - UART1 and UART2 are the same UART, selected by switch
  8. I2C header
  9. Sensor header
  10. CAN header
  11. RS485 header
  12. 5V output
  13. 3.7V Lithium battery PH2.0 header
  14. CAN terminal resistor selection
  15. RS485 terminal resistor selection
  16. UART selection - select UART1 or UART2
  17. BOOT button - Press and hold while powering on for program burning
  18. RESET button
  19. DONE - Lithium battery charging completed indicator
  20. CHARGE - Lithium battery charging indicator
  21. POWER - Power supply indicator

Features

  • Microcontroller: ESP32-S3-WROOM-1-N16R8
  • Core: Xtensa LX7 dual-core
  • Operating frequency: up to 240 MHz
  • SRAM: 512 kB
  • ROM: 384 kB
  • Flash memory: 16 MB
  • PSRAM: 8 MB
  • Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5 LE
  • Display: IPS 7 inch
  • Resolution: 1024 x 600
  • Colors: 65K
  • Touch: capacitive, 5-point
  • Touch interface: I2C
  • Interfaces: CAN, RS485, I2C, UART
  • Connectors: USB-C, TF, expansion headers
  • Power supply: 5 V / 3.7 V (battery)
  • Battery connector: PH2.0
  • Backlight adjustment: yes
  • Battery voltage monitoring: yes
  • LED indicators: power, charging

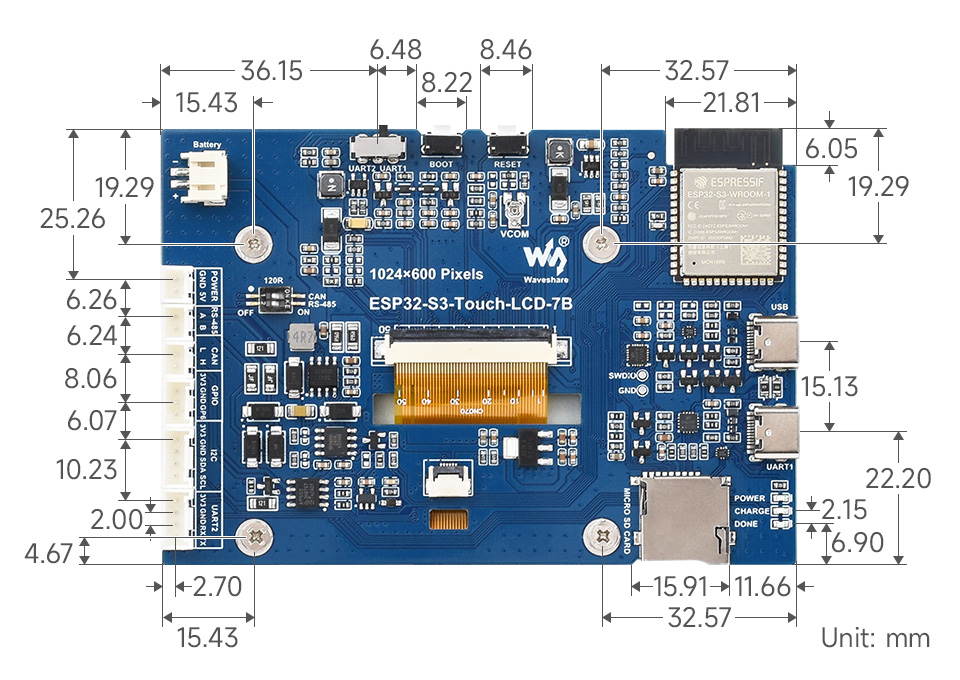

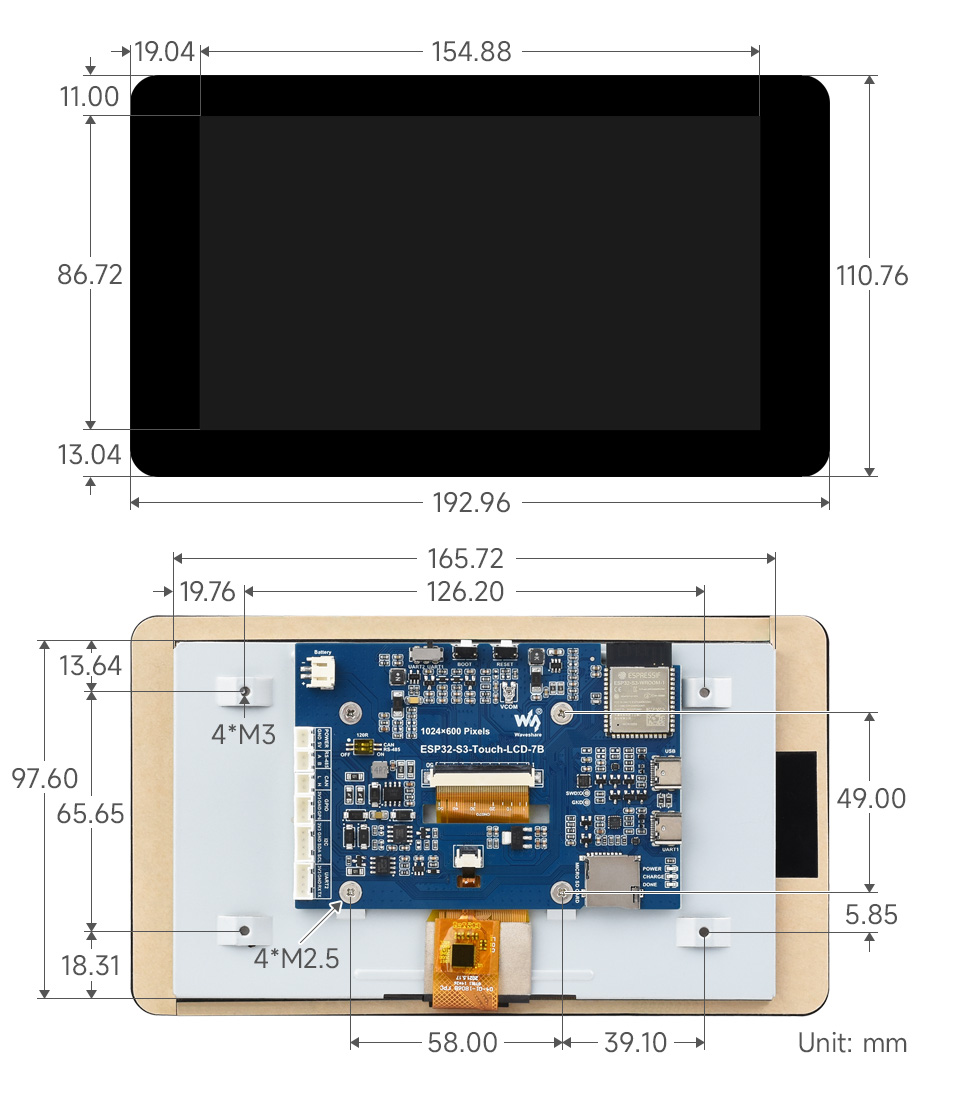

  • Dimensions: not specified

Kit includes

  • Development board
  • HY2.0 cables
  • Mounting accessories
