ID: 1207989
4779051840229
zł485.00
Tax included

zł394.31 tax excl.

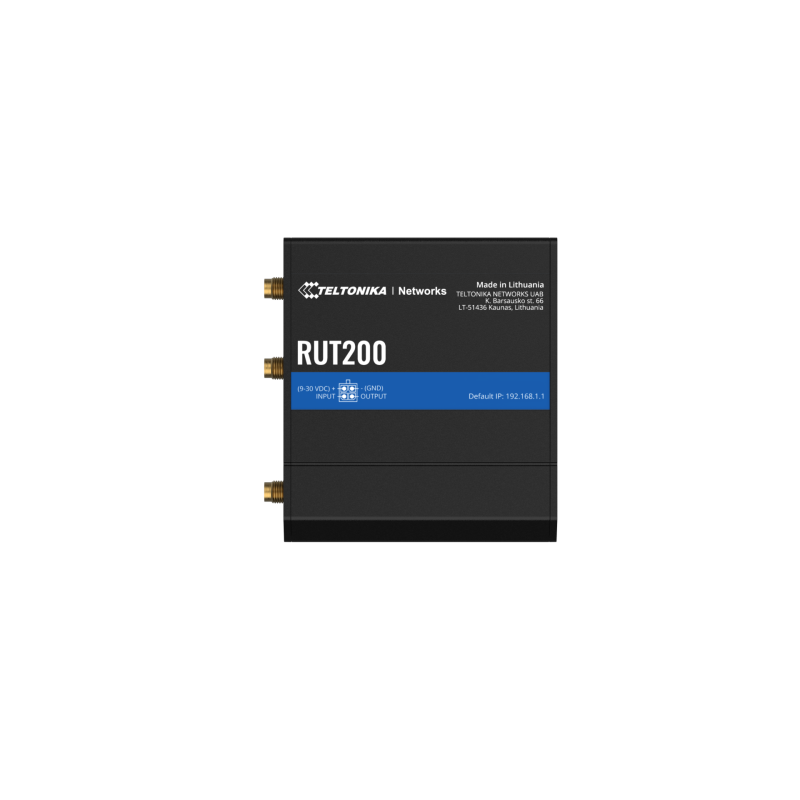

Industrial cellular router for providing primary or backup network connectivity in automation systems and industrial installations; 4G LTE Cat 4 up to 150 Mbps; 3G and 2G; WiFi 4 802.11b/g/n; up to 50 simultaneous WiFi connections; 1 x 10/100 Mbps WAN port; 1 x 10/100 Mbps LAN port; automatic WAN Failover; digital input and output; Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; passive PoE 9-30 VDC; RutOS operating system; Teltonika RMS support. Teltonika RUT200

2 weeks
Awaiting delivery

Description

Industrial cellular router designed to provide primary or backup network connectivity in automation, transportation and industrial systems. Teltonika RUT200 supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as 3G and 2G networks. The WiFi 4 802.11b/g/n module can operate in Access Point or Station mode and supports up to 50 simultaneous connections. The router features one 10/100 Mbps WAN port and one 10/100 Mbps LAN port, while WAN Failover enables automatic switching to an available backup connection.

The OpenWrt-based RutOS operating system provides routing, load balancing, firewall, VLAN, VPN and hotspot functions, as well as support for Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT. The router provides one digital input and one open-collector digital output, enabling integration with simple automation signals. Teltonika RMS allows remote monitoring, configuration and VPN access. The aluminium housing, 9-30 VDC power input, passive PoE support and operating temperature range from -40°C to 75°C allow the RUT200 to be used in telemetry systems, industrial automation, transportation, monitoring and remote device supervision.

Features

  • Mobile connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 9
    • SIM slot: 1 x Mini SIM (2FF)
    • SMS and USSD support
    • Multiple PDN
    • Auto APN
    • Band management and band lock
    • Bridge and Passthrough modes
    • 2 x SMA connector for LTE antennas
  • WiFi
    • Standard: IEEE 802.11b/g/n
    • Class: WiFi 4
    • Operating modes: Access Point (AP), Station (STA)
    • Maximum number of simultaneous clients: 50
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11s Wireless Mesh
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • Relayd
    • SSID hiding
    • MAC address-based access control
    • MAC allowlist and blocklist
    • QR code generator for WiFi connection
    • TravelMate
    • Antenna connector: 1 x RP-SMA for WiFi
  • Ethernet
    • 1 x RJ45 WAN port, 10/100 Mbps
    • 1 x RJ45 LAN port, 10/100 Mbps
    • IEEE 802.3 and IEEE 802.3u compliance
    • WAN port also compliant with IEEE 802.3az
    • Auto MDI/MDIX
  • Inputs and outputs
    • 1 x digital input
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-30 V
    • 1 x open-collector digital output
    • Maximum output parameters: 30 V / 300 mA
    • Event support via Email, RMS and SMS
    • I/O Juggler for triggering events based on I/O state
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • DNP3: Station, Outstation over TCP
    • DLMS/COSEM: Client over TCP
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, mobile, VRRP, wired connection
    • Automatic WAN Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • SSHFS
    • Real-time network traffic monitoring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port-based and tag-based VLAN
    • DDoS attack prevention
    • Port scan prevention
    • Access control for SSH, WEB UI, CLI and Telnet
    • Pre-shared key and X.509 certificate authentication
    • TACACS+
    • RADIUS
    • 802.1X
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • CPU: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash storage: 16 MB SPI Flash
  • Power supply
    • Input voltage: 9-30 VDC
    • Power connector: industrial 4-pin connector
    • Reverse polarity protection
    • Surge protection
    • Passive PoE over spare pairs on the LAN1 port
    • Passive PoE: Mode B, 9-30 VDC
    • Passive PoE not compliant with IEEE 802.3af, 802.3at and 802.3bt
    • Maximum power consumption: < 6.5 W
  • Mechanical and environmental specifications
    • Housing: aluminium with plastic panels
    • Dimensions: 83 x 25 x 74 mm
    • Weight: 125 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional kit
    • 3 x connection type status LED
    • 5 x connection strength LED
    • 2 x LAN status LED
    • 1 x power LED
    • Reset button

Kit includes

  • Teltonika RUT200 router
  • 9 W power supply
  • 2 x LTE antenna with SMA connector
  • WiFi antenna with RP-SMA connector
  • Quick Start Guide
1207989

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n
WiFi Band
2,4 GHz
Number of Ethernet Ports
2
Number of SIM Cards
1
eSIM
No
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
