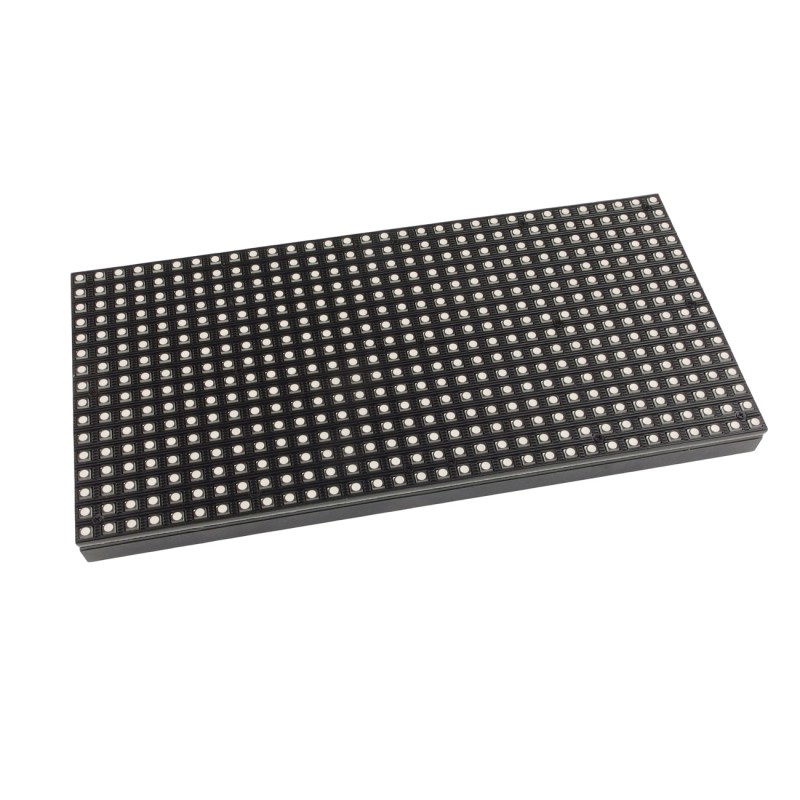

32x16 RGB LED Matrix Panel - 32x16 RGB LED matrix display
ID: 566829
5902186313194
zł85.88
Tax included
zł69.82 tax excl.
RGB LED matrix display with a resolution of 32 x 16 (512 LED). DFRobot DFR0471
Description
RGB LED matrix display with a resolution of 32 x 16 (512 LED). Each LED can be controlled independently. At least 13 digital GPIOs are required to control the matrix. The matrix has 2 IDC connectors (DATA_IN, DATA_OUT) on the back, so you can connect multiple panels together and create a huge screen. It is recommended to use microcontrollers with large RAM memory capacity to operate the matrix. The module is powered with the voltage of 5 V. On the Wiki website, the manual and sample programs are available.
Features
- Resolution: 32 x 16
- Viewing angle: ≧ 160 °
- Control mode: synchronous control
- Frequency: ≧ 60 Hz
- Brightness: ≧ 1200 cd/m2
- Refresh rate: ≧ 300 Hz
- Pixel pitch: 6 mm
- Voltage: 5V
- Current consumption: up to 2 A
- Average power consumption: <500 W/m2
- Dimensions: 192 x 96 mm
- Thickness: 11 mm
Kit contains
- 32x16 RGB LED Matrix Panel (6mm pitch)
- IDC cable - XH2.54
- IDC - IDC cable
- Power supply cable
