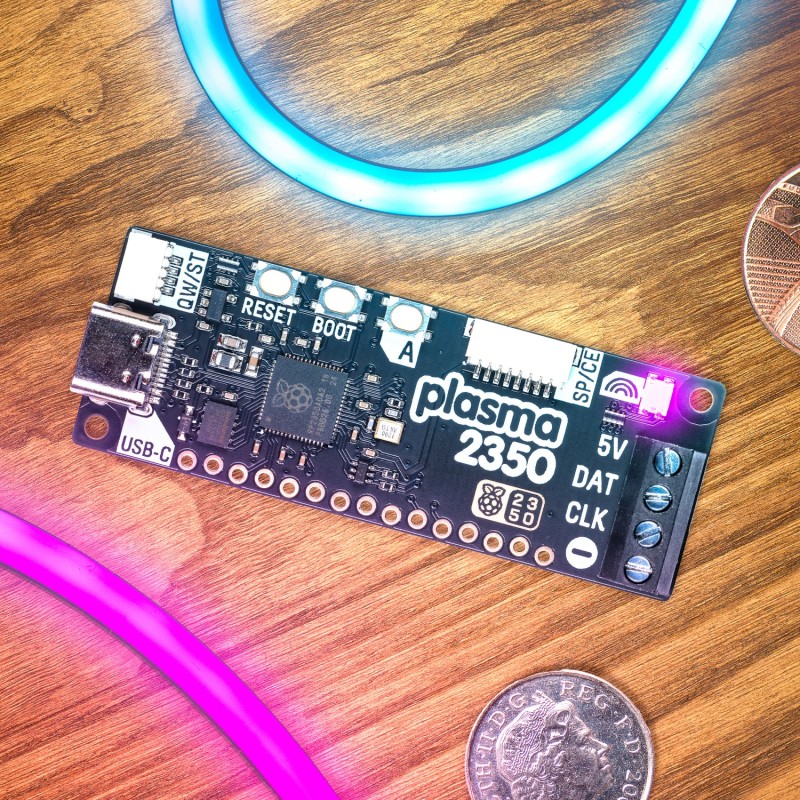

  • Main view
ID: 1199010
zł87.15
Tax included

zł70.85 tax excl.

Addressable LED strip controller based on the RP2350A microcontroller with dual Arm Cortex-M33 cores up to 150 MHz. It supports popular WS2812/Neopixel and APA102/Dotstar LEDs and allows for powering and programming via USB-C with current up to 3 A. It features screw-type LED connectors, a built-in RGB LED, user buttons, and a Qw/ST connector for connecting I2C sensors. Pimoroni PIM723

4 weeks
Awaiting delivery
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Plasma 2350 is a complete and convenient solution for controlling addressable LED strips, designed for eye-catching lighting installations, artistic projects, and interactive prototypes. The controller is based on the modern RP2350A microcontroller, which delivers high performance and excellent programming flexibility. Power and programming are provided via USB-C, allowing current draw of up to 3 A and enabling direct power supply of a large number of LEDs without the need for additional power supplies. Plasma 2350 supports popular WS2812 / NeoPixel and APA102 / DotStar standards, making it compatible with a wide range of 5 V LED strips and modules.


The board features convenient screw terminals that allow quick and secure connection of LED strips. A user button is available for switching effects, along with a dedicated Reset button and a BOOT button that can also be used as a user input. The built-in RGB LED can be used for status indication or for testing effects without connecting external LEDs. A Qw/ST connector enables easy, solder-free connection of I²C sensors and modules. In addition, I²C, analog, UART, and debug lines are broken out, providing great flexibility for expanding your project. The device comes fully assembled and ready to use, with programming supported in C/C++ or MicroPython.

Features

  • Microcontroller: RP2350A (Dual Arm Cortex-M33 up to 150 MHz)
  • Memory: 520 KB SRAM, 4 MB QSPI Flash (XiP)
  • LED support: WS2812 / NeoPixel / SK6812 and APA102 / DotStar / SK9822
  • Screw terminals for LED strip connections
  • Power and programming: USB-C (up to 3 A)
  • Qw/ST connector (Qwiic / STEMMA QT)
  • SP/CE connector
  • Buttons: Reset, BOOT, and user button
  • Built-in RGB LED

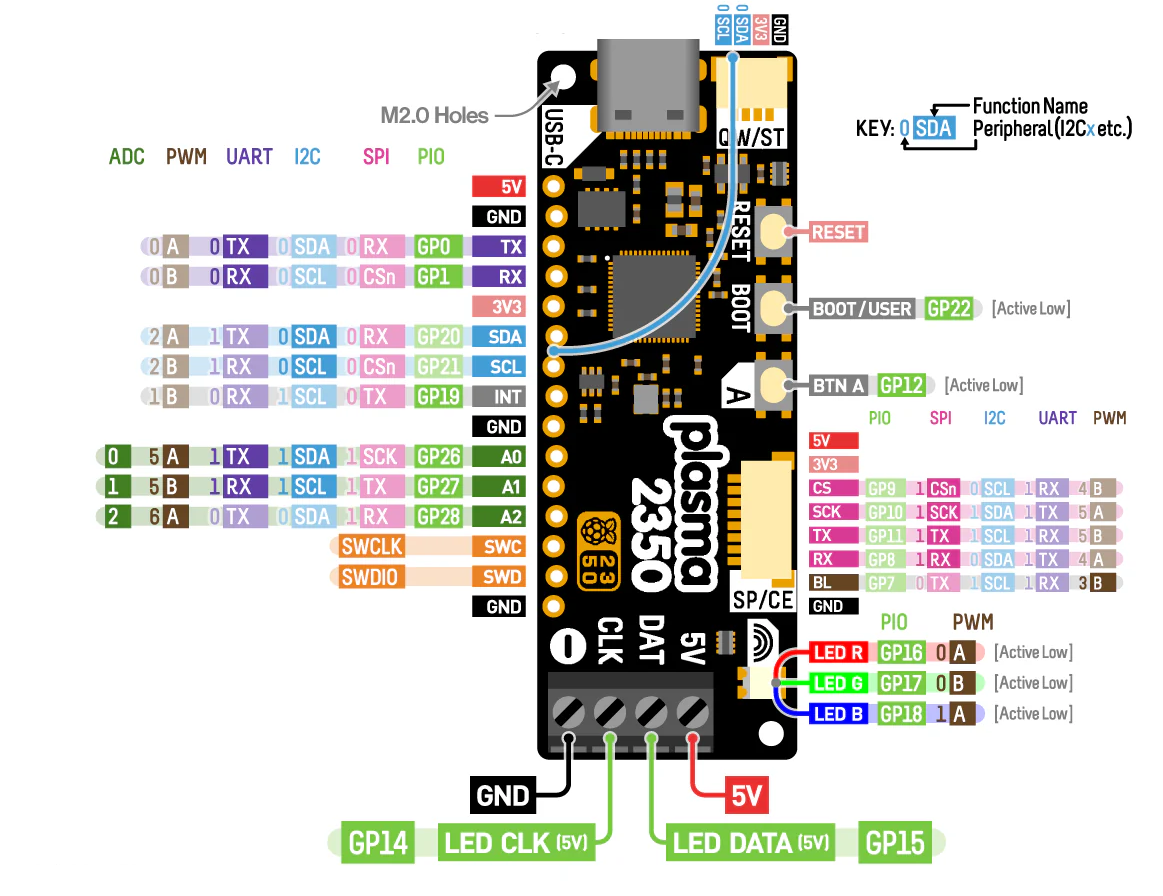

  • Broken-out I²C, UART, analog, and debug lines
  • Fully assembled board, no soldering required
  • Programming: C/C++ or MicroPython
  • Dimensions: 61 × 22 × 12 mm
