Compact light sensor that provides precise measurement of both illuminance (10–10000 Lux) and correlated color temperature (2700K–6500K), with low measurement errors. Thanks to I2C and UART interfaces, the sensor easily integrates with platforms such as Arduino or Raspberry Pi, making it an ideal tool for photographers, filmmakers and projects requiring lighting control. DFRobot SEN0611

24h
Available
Available quantity: 2
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

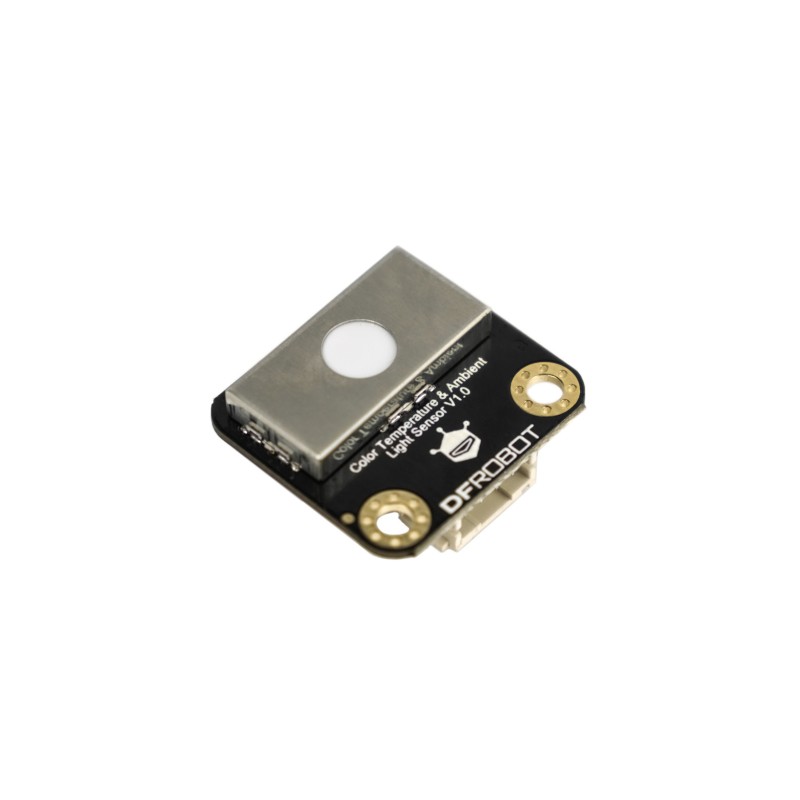

The Gravity: Correlated Color Temperature (CCT) & ALS Meter sensor is a professional tool for precise light measurement, designed for photographers, filmmakers, and visual creators. It allows simultaneous monitoring of illuminance in lux and correlated color temperature in kelvins. The light intensity measurement range is from 10 to 10000 Lux, and the color temperature range is from 2700K to 6500K. With low measurement errors (±5 Lux + ±10% Lux and ±10% K), the data is very accurate and reliable. The device offers I2C or UART communication, making it easy to integrate with various platforms such as Arduino and Raspberry Pi. Thanks to its compact dimensions (only 26×24 mm), the sensor can be easily mounted even in limited spaces.


The CCT & ALS Meter excels both during a photo shoot and in post-production, helping to adjust the light color to the desired visual effect. In outdoor conditions, it captures natural daylight, while in the studio, it provides full control over lighting. The sensor converts light parameters into physical numerical values, ensuring complete control over lighting and color. With low power consumption (only 2.8 mA), it is ideal for use in battery-powered devices.


This is an indispensable solution for those who value high image quality and a professional approach to light management. With this sensor, you can effectively ensure color consistency and proper exposure in every shot. Additionally, measurements allow for accurate replication of lighting conditions in analysis and documentation.

Features

  • Light intensity measurement range: from 10 to 10000 Lux
  • Light intensity measurement error: ±5 Lux + ±10% Lux

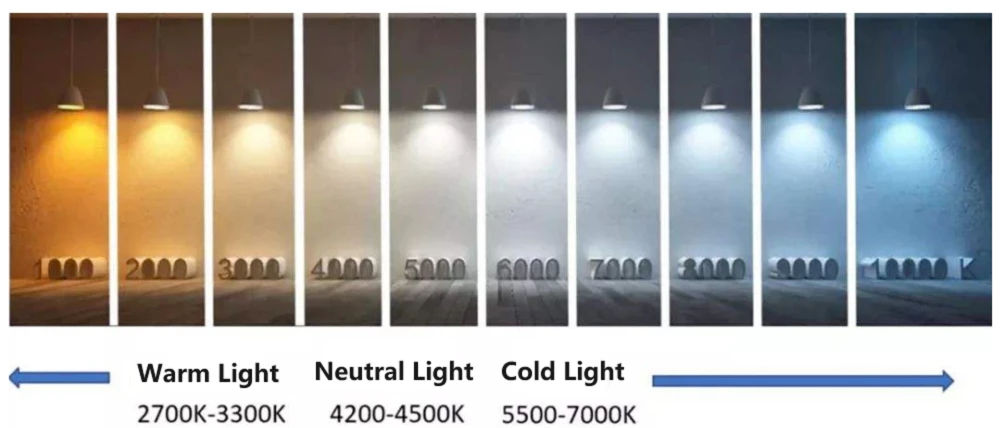

  • CCT measurement range: from 2700 to 6500K
  • CCT measurement error: ±10%
  • Light measurement angle: 90°

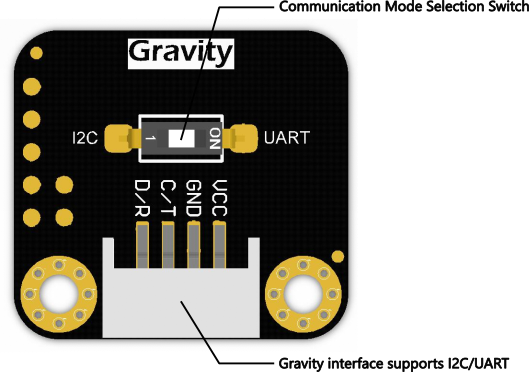

  • Communication support: I2C and UART
  • Supply voltage: 3.3V to 5V DC
  • Current consumption: 2.8 mA
  • Operating temperature: -10°C to 60°C
  • Dimensions: 26 x 24 mm

Kit contains

  • Gravity: Color Temperature & ALS Sensor
  • Gravity-4P Cable (I2C/UART)
