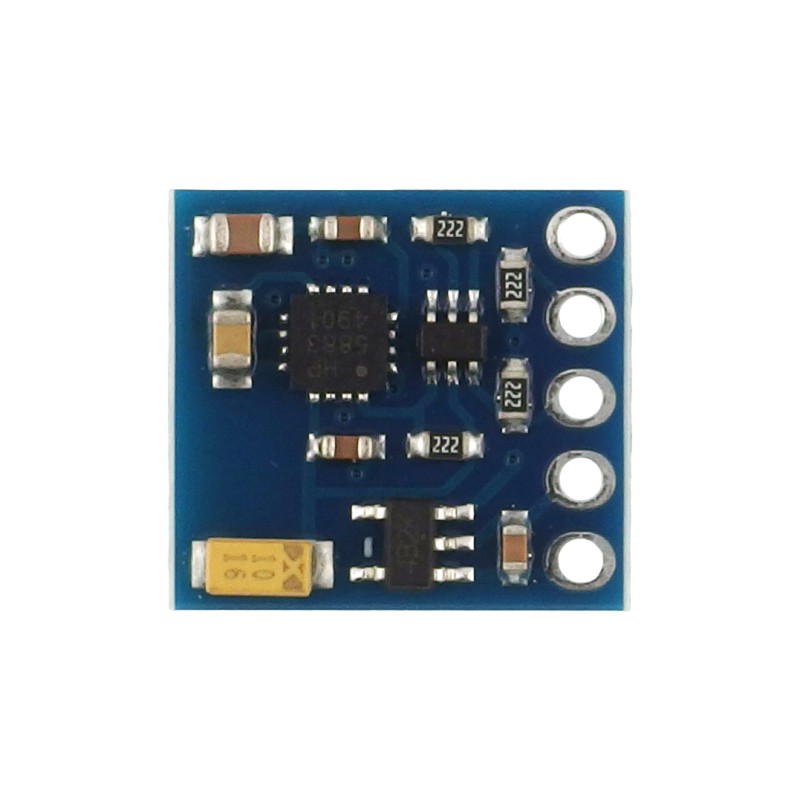

GY‑271 HMC5883L Electronic Compass Module – 3-Axis Magnetoresistive Sensor
ID: 1195051
zł9.70
Tax included
zł7.89 tax excl.
The GY‑271 module with HMC5883L sensor is a precise digital compass offering three-axis magnetic field measurement, I²C communication, and 3 V–5 V operation. Suitable for robotics, navigation, and embedded systems requiring low power consumption and a compact form factor. GY‑271
Description
The GY‑271 module, equipped with the HMC5883L chip, enables three-axis magnetic field measurement for determining spatial orientation – serving as a digital compass. It communicates via the I²C interface, supporting standard and Fast-Mode up to 400 kHz. It provides accurate directional data with a precision of approximately ±1°–2° and operates from a supply voltage of 3 V to 5 V. Ideal for navigation systems, robotics, UAVs, and measurement projects requiring compact design. GY‑271
Properties
- Sensor: HMC5883L, 3-axis magnetoresistive with integrated 12-bit ADC
- Measurement range: ±1.3 to ±8 gauss
- Accuracy: ±1°–2°
- Resolution: up to ±5 mG at 3 V supply
- Communication interface: I²C (up to 400 kHz)
- Supply voltage: 3 V – 5 V
- Operating current: approx. 100 µA (measurement mode)
- Maximum data output rate: 160 Hz
- Pins: VCC, GND, SDA, SCL, DRDY
- Module dimensions: approx. 14.8 × 13.5 × 3.5 mm
Included
- GY‑271 module with HMC5883L chip
- Straight 6-pin header
1195051
Data sheet
- Interface
- I2C
- Type of sensor
- HMC5883L
- Power supply voltage
- 3 - 5 V
