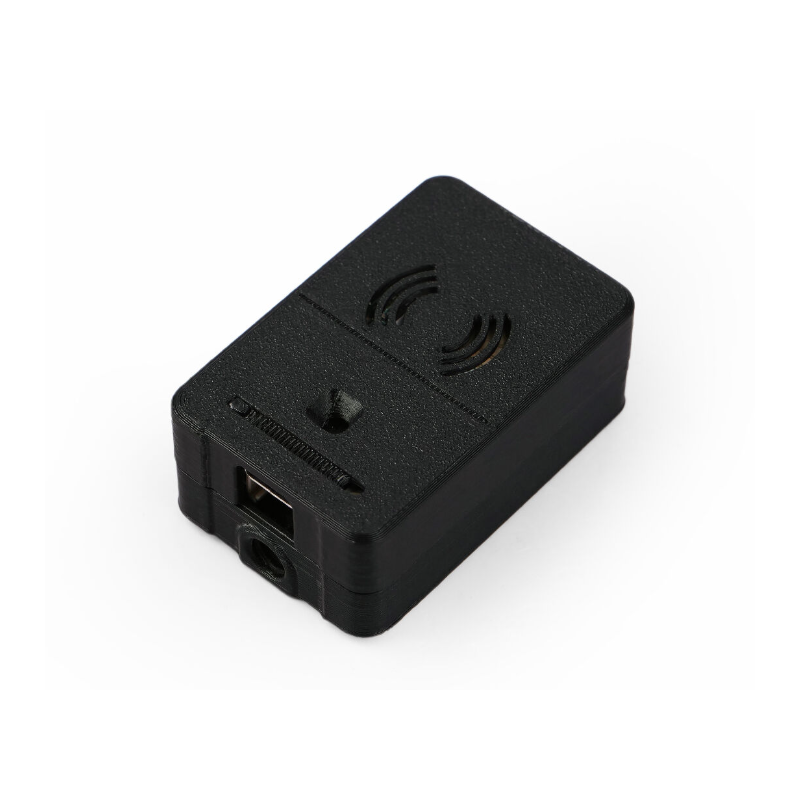

60GHz mmWave Breathing and Heartbeat Detection Sensor - human presence and heartbeat detection sensor
ID: 1195721
5902186302259
zł150.61
Tax included
zł122.45 tax excl.
The MR60BHA2 sensor kit uses 60GHz mmWave technology to reliably detect human presence, as well as human breathing and heartbeat detection. It offers Home Assistant integration thanks to the XIAO ESP32C6 module and pre-installed ESPHome firmware. Equipped with a BH1750 light intensity sensor, RGB LED indicator and the possibility of expanding with Grove sensor modules, it is ideal for monitoring health, safety and home automation. Seeed Studio 114993387
Description
MR60BHA2 Sensor Kit is an advanced sensor kit leveraging 60GHz mmWave technology, providing reliable human presence detection as well as breathing and heartbeat monitoring. Equipped with a light intensity sensor, RGB LED indicator, and expandable options for additional sensors and actuators, this kit offers exceptional responsiveness and a wide range of applications.
With an integrated XIAO ESP32C6 module and pre-installed ESPHome firmware, the kit supports code-free integration with Home Assistant. Setting up detection zones in ESPHome takes only a few minutes, making it perfect for applications such as health monitoring, safety systems, elderly care, and home automation. The BH1750 light sensor ensures precise light intensity monitoring, enhancing automation based on ambient conditions. The module includes a customizable RGB LED indicator and a Grove port for connecting additional modules. Furthermore, a free 3D housing design simplifies deployment and personalization of the device.
Features
- mmWave technology for human presence detection up to 6 meters and breathing/heartbeat monitoring up to 1.5 meters
- XIAO ESP32C6 with pre-installed ESPHome firmware
- Light sensor: BH1750 with a range of 1-65,535 lux and up to 100,000 lux measurement capability
- LED Indicator: RGB WS2812 with full customization options
- Grove Port: 1 GPIO for connecting over 300 compatible Grove modules
- Power Supply: 5V/1A, power consumption: 0.5W in standby, 1.4W with an active Grove module
- 3D housing design
- Dimensions: 54 x 35 x 22 mm
Kit contains
- 60GHz mmWave sensor module
- XIAO ESP32C6 with pre-installed ESPHome firmware
1195721
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
