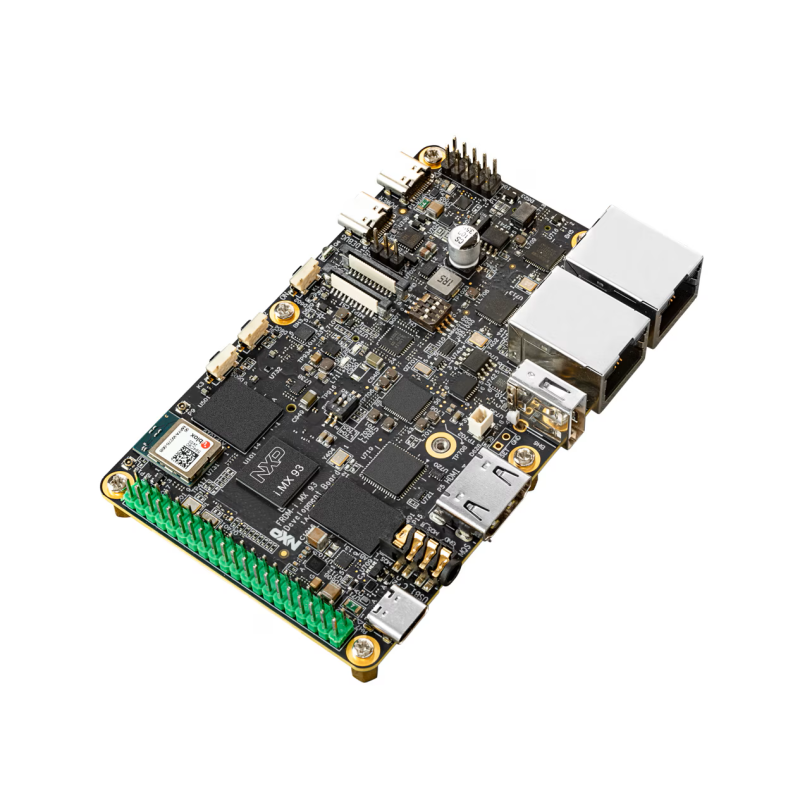

FRDM-IMX93 - development board with i.MX 93 application processor
ID: 1197003
5902186303478
zł449.00
Tax included
zł365.04 tax excl.
A development board based on a dual-core Cortex-A55 processor and a supporting Cortex-M33, with an embedded Arm Ethos-U65 AI micro-accelerator for local data processing. It offers a rich set of interfaces (HDMI, MIPI DSI/CSI-2, USB, Ethernet, CAN), wireless connectivity (Wi-Fi 6, Bluetooth 5.4, Thread/Zigbee), and 2 GB LPDDR4X and 32 GB eMMC memory, enabling the rapid development of advanced IoT and edge AI applications. Linux and FreeRTOS support, EdgeLock® security features, the GoPoint platform, and an extensible architecture make it a complete prototyping and deployment tool. NXP FRDM-IMX93
Description
FRDM i.MX 93 is a compact and cost-effective development board, designed for modern industrial and IoT applications. It features the i.MX 93 application processor with dual Cortex-A55 cores and a Cortex-M33 companion core, offering high performance and flexibility. Additionally, it includes the Arm Ethos U-65 micro AI accelerator for on-device data processing using artificial intelligence. The board integrates the u-blox MAYA-W276 module, offering Wi-Fi 6, Bluetooth 5.4, and 802.15.4 with support for Thread and Zigbee protocols, making it an excellent choice for applications requiring reliable wireless connectivity.
Available HDMI, MIPI DSI, and CSI-2 interfaces allow connection of displays and cameras. The board also provides 2 GB of LPDDR4X RAM and 32 GB of eMMC, ensuring fast system boot. It supports Linux® and FreeRTOS operating systems. Thanks to compatibility with the GoPoint platform, users gain access to ready-to-use examples, significantly speeding up the design process. The board includes a rich set of communication interfaces such as USB, Ethernet, CAN, and debugging connectors. It is designed for easy integration with other modules. With its extendable architecture and support for external sensors and peripherals, FRDM i.MX 93 offers a flexible solution for a wide range of applications. This tool is suitable for both prototyping and final products. Built-in EdgeLock® security features ensure a high level of data protection. The board supports various power modes, allowing its use in low-power devices. Its performance, reliability, and integration of multiple technologies make it an excellent choice for professionals.
Features
- i.MX 93 application processor, dual-core Cortex-A55 @1.7GHz
- Companion core Cortex-M33 @250MHz
- Arm® Ethos™ U-65 micro-NPU
- EdgeLock® Secure Enclave
- 2 GB LPDDR4X / LPDDR4 memory
- 32 GB eMMC 5.1 storage
- MicroSD card slot
- EEPROM memory
- MIPI DSI x4 interface (22-pin FPC connector)
- LVDS to HDMI (HDMI connector)
- MIPI CSI-2 x2 interface (22-pin FPC connector)
- u-blox MAYA-W276-00B module with Wi-Fi 6, Bluetooth 5.4, and 802.15.4 support
- Classic Bluetooth and Bluetooth Low Energy 5.4 (dual-mode)
- 802.15.4 radio with Thread and Zigbee support
- 3.5 mm headphone jack with MQS support
- USB 2.0 Type-C connector
- USB 2.0 Type-A connector
- 2 × Ethernet RJ45 (GbE)
- CAN (HDR)
- 2x20 EXPI
- I²C HDR
- ADC HDR
- SWD connector
- UART via USB Type-C
- Linux®
- FreeRTOS
1197003
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
