zł19.59 tax excl.

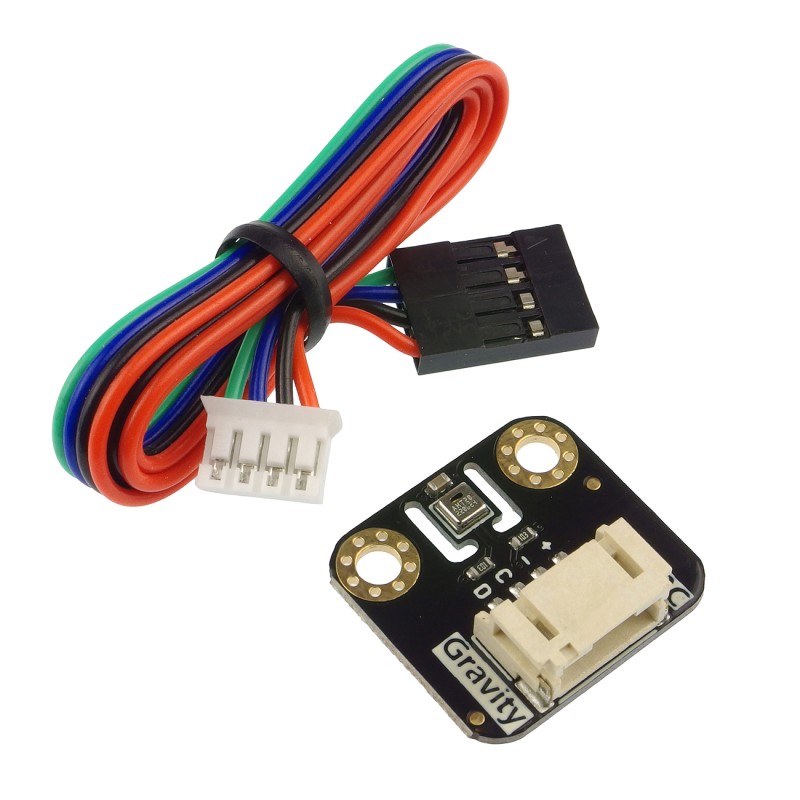

A module with a temperature and humidity sensor based on the AHT20 system. Equipped with a Gravity connector, it communicates via the I2C interface. DFRobot SEN0528
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
A module with a temperature and humidity sensor based on the AHT20 system. It has an accuracy of ± 2% when measuring relative humidity from 20 to 80% and an accuracy of ± 0.3 ° C when measuring temperatures from 20 to 60 ° C. The module is compatible with 2V and 5V controllers, and communication is via the I2C interface (Gravity connector). Full documentation is available on the product page.
Features
- Temperature measurement range: -40 to 85 ° C (accuracy: ± 1 ° C in the entire range)
- Humidity measuring range: 0 to 100% RH (accuracy: ± 3% RH over the entire range)
- I2C interface (address 0x38)
- Supply voltage: 2 V to 5 V
- Dimensions: 30 x 20.5 mm
Kit contains
- Gravity: AHT20 Temperature and Humidity Sensor
- Gravity 4-pin I2C / UART cable
Data sheet
- Interface
- I2C
- Type of sensor
- AHT20
- Power supply voltage
- 2.0..5.5V
- Sensor type
- Temperatury
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
