SEGGER (Q)SPI Flash Evaluator Adapter Board Pack for SO-8, SO-8W, SO-16 (6.40.01)
ID: 1189782
zł617.53
Tax included
zł502.06 tax excl.
A set of three adapters for SO-8, SO-8W and SO-16 memories that allows easy testing and programming of flash devices in these packages, eliminating the need for dedicated solutions for each form factor. The adapters are compatible with the SEGGER (Q)SPI Flash Evaluator and other test systems, making them a versatile tool for both test and production. SEGGER (Q)SPI Flash Evaluator Adapter Board Pack for SO-8, SO-8W, SO-16 (6.40.01)
Description
Set of Three SO Memory Adapters enables easy connection and testing of various flash memory chips in SO-8, SO-8W, and SO-16 packages. These adapters are compatible with the SEGGER (Q)SPI Flash Evaluator and other solutions utilizing serial SPI flash memory. Each adapter is made of a high-quality PCB, allowing the mounting of flash memory chips in different package sizes. This flexibility enables efficient testing and programming of various chips, minimizing the need for dedicated solutions for each memory format. The adapters are designed for use in testing and production environments, facilitating quick and convenient connection of chips to a test system or programmer. These are bare PCBs without pre-soldered components, allowing the user to customize them according to their specific needs and application.
Features
- Compatibility: Flash memory in SO-8, SO-8W, and SO-16 packages
- Bare PCBs without pre-soldered memory chips
- Application: Testing and programming of serial flash memory (SPI, QSPI)
- Compatible with SEGGER (Q)SPI Flash Evaluator and other programmers

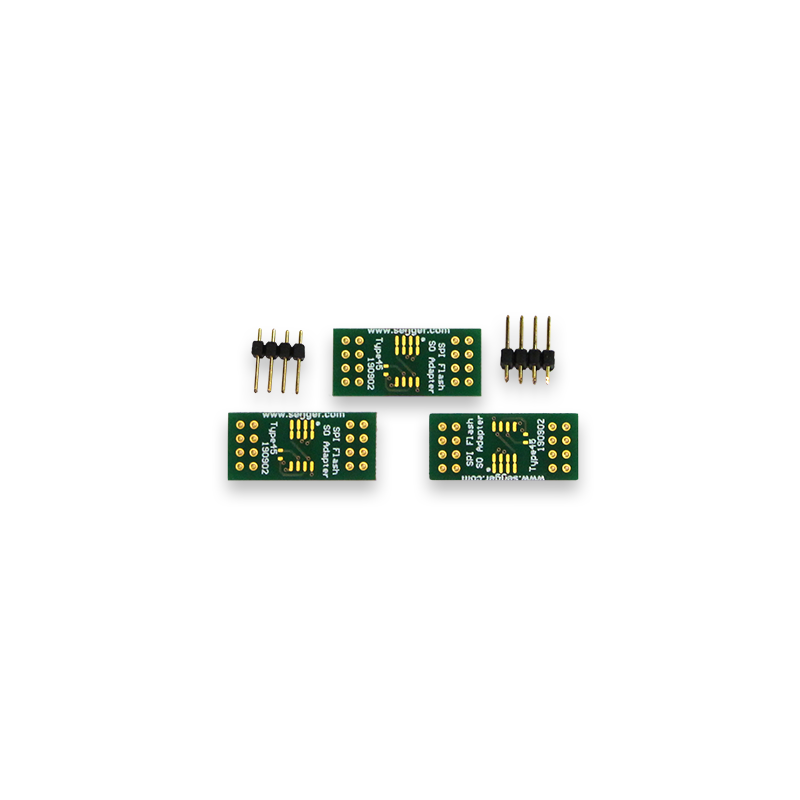

Kit contains
- 3 x Adapter PCBs for SO-8, SO-8W, and SO-16
- 2 x Connectors
1189782
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
