Megapixel 720p USB Wide-angle Camera - 1MP USB camera for Raspberry Pi and Jetson Nano
ID: 1178679
5902186310186
zł95.09
Tax included
zł77.31 tax excl.
1 MP camera with USB interface. Equipped with a wide-angle lens with a viewing angle of 140°. DFRobot FIT0892
Description

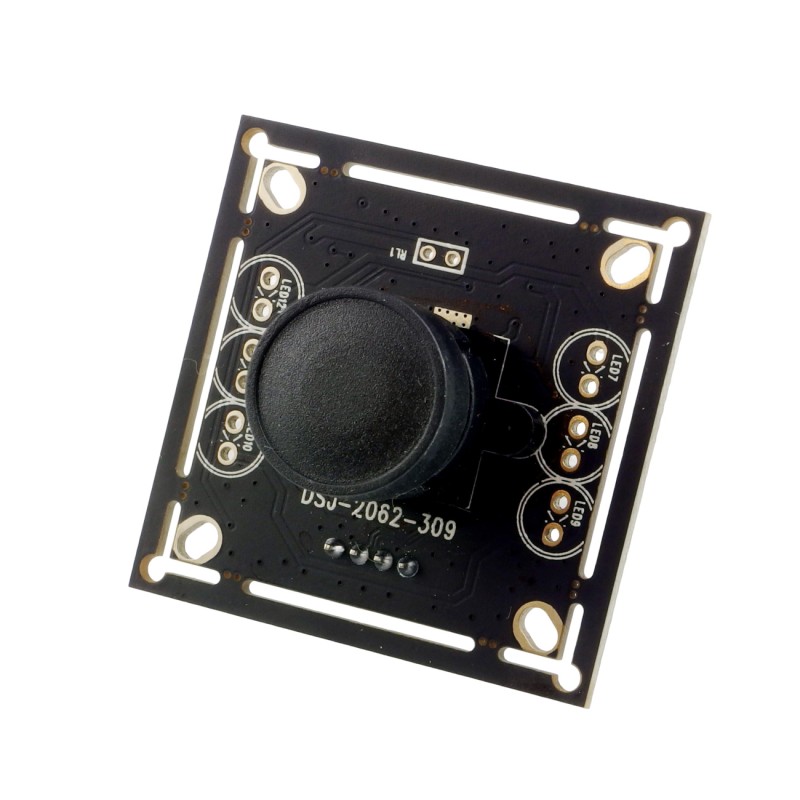

Camera with USB interface with a resolution of 1 MP dedicated to Raspberry Pi or NVIDIA Jetson Nano. It has an integrated lens with a field of view of 140°. The camera can take pictures with a resolution of 1280x720 and record videos in 25fps @ 720P. It is powered by a 4-pin connector with a USB interface. The module works with native drivers (compatible with UVC) built into Windows, Linux and Mac, making the installation of the camera easy and intuitive. It can be integrated in a variety of facial recognition, image recognition and security devices.
Features
- Lens Size: 1/4 "
- Pixel Size: 3 µm x 3 µm
- Resolution: 1MP 1280x720
- Data format: MJPEG / YUV2 (YUYV)
- Frame rate: 320 * 240 MJPEG @ 30fps, 352 * 288 YUV2 @ 30fps, 352 * 288 MJPEG @ 30fps, 640 * 480 YUV2 @ 25fps, 800 * 600 MJPEG @ 30fps, 320 * 240 YUV2 @ 30fps, 1280 * 720 MJPEG @ 25fps, 800 * 600 YUV2 @ 15fps, 640 * 480 MJPEG @ 25fps, 1280 * 720 YUV2 @ 10fps
- Field of View (FOV): 140 ° (H)
- Lens correction, correction of defective pixels
- Minimum Illumination: 0.051lux
- Shutter type: electronic shutter, frame exposure
- Interface type: USB2.0 High Speed
- OTG protocol support: USB2.0 OTG
- Driverless protocol support: USB Video Class (UVC)
- Automatic AEC exposure control
- Automatic AEB white balance
- Automatic AGC Gain Control
- Adjustable parameters: brightness / contrast / color saturation, hue, sharpness, gamma, balance, white, backlight, contrast, exposure
- Night vision function
- System Compatibility: Windows, Linux, Mac with UVC
- 5V power supply
- Current consumption: 120 to 220 mA
- Dimensions: 38 x 38 mm
Kit contains
- Megapixel 720p USB Wide-angle camera
- USB cable
1178679
Data sheet
- Resolution
- 1 MPx
- Interface
- USB
- Sensor
- Inna
- IR filter
- No
- Lens assembly
- none
