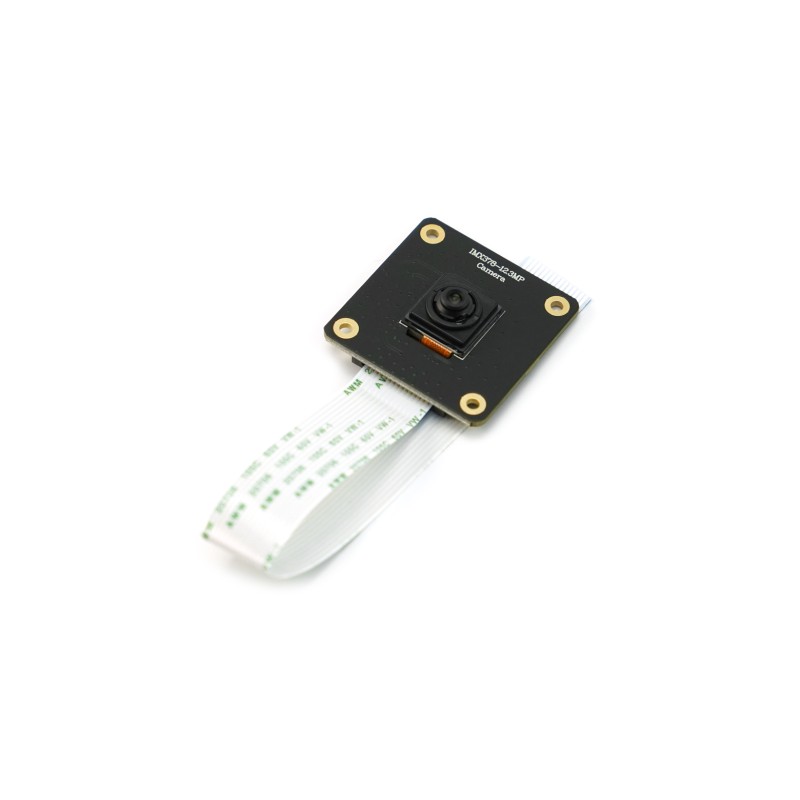

IMX378-79 12.3MP - camera module with 12.3MP IMX378 sensor FOV 79° for Raspberry Pi
ID: 1196954
5902186311497
zł129.27
Tax included
zł105.10 tax excl.
The IMX378-79 camera module features a Sony 12.3 MP (4056x3040 px) sensor with a 79° viewing angle, ideal for industrial and inspection applications requiring the highest image quality. With MIPI-CSI-2Lane interface, Raspberry Pi compatibility and low distortion, it provides smooth and precise image capture. DFRobot SEN0632
Description

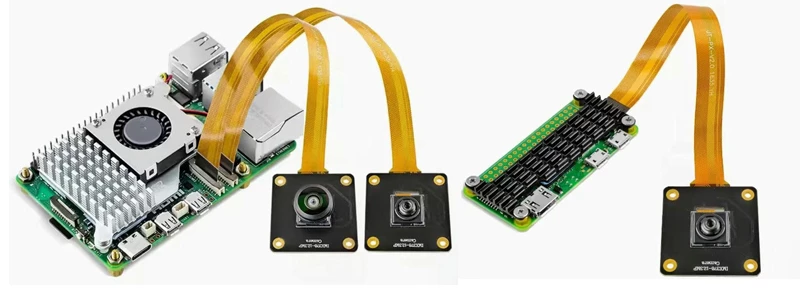

The IMX378-79 Camera Module is a modern imaging solution designed for industrial applications requiring the highest image quality. Equipped with the sensitive Sony IMX378 sensor, it offers ultra-high resolution of 12.3 MP (4056x3040 pixels) and a precise 79° field of view, ensuring crystal-clear images. The module is fully compatible with Raspberry Pi single-board computers (Raspberry Pi 5, Raspberry Pi 4, Raspberry Pi Zero), allowing easy integration with existing projects. Thanks to the MIPI-CSI-2Lane interface, it provides efficient data transmission, enabling smooth image capture even in demanding applications.
The module is supplied with two FPC cables, eliminating the need for additional accessories during installation. An integrated infrared filter ensures accurate color reproduction, making the camera perfect for tasks requiring high image precision. Minimal distortion (<1.5%) and high detail make this module an excellent choice for close-up inspection, object recognition, and industrial automation. Its compact design and advanced Sony technology guarantee reliability and top performance in any application.
Features
- Image Sensor: Sony IMX378
- Resolution: 4056x3040 pixels
- Pixel Size: 1.55μm x 1.55μm
- Camera Type: Color
- Shutter Type: Rolling shutter
- Focus Type: Fixed focus
- CMOS Sensor Size: 1/2.3 inch
- Infrared Filter: Integrated
- Aperture: f/1.79
- Focal Length: 4.74mm
- Field of View: 79°
- Distortion: <1.5%
- Interface: MIPI-CSI-2Lane
- Lens Size: M8.5
- PCB Dimensions: 38 x 38 mm
Kit contains
- IMX378-79 12.3MP Camera for Raspberry Pi
- FPC Cable 15Pin to 15Pin
- FPC Cable 15Pin to 22Pin
1196954
Data sheet
- Resolution
- 12,3 MPx
- Interface
- MIPI CSI-2
- Sensor
- Sony IMX378
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
