12.3MP IMX477 Camera with C/CS Mount for Raspberry Pi - ArduCam B0240E
ID: 1203005
zł332.17
Tax included
zł270.06 tax excl.
12.3MP camera module with a Sony IMX477 sensor, interchangeable C/CS lens mount, MIPI CSI-2 interface, and tripod adapter, intended for use with Raspberry Pi platforms. ArduCam B0240E
Description
ArduCam B0240E is a camera module with a resolution of 12.3 MP, based on the Sony IMX477 sensor with an optical format of 1/2.3 inch. The camera is used in Raspberry Pi-based vision systems where high image detail and the ability to select optics for a specific application are required. The module works natively with Raspberry Pi OS and uses built-in V4L2 drivers, without the need to install additional software.
The camera supports the MIPI CSI-2 interface and is equipped with a 22-pin FPC connector, providing high-speed data transmission. The C/CS lens mount allows the use of a wide range of interchangeable lenses, and the included tripod adapter enables mounting the camera on standard tripods with a 1/4"-20 thread. The module is used in monitoring, automation, robotics, and industrial and research projects.
Features
- Sensor
- Sensor: Sony IMX477
- Sensor type: CMOS, back-illuminated
- Sensor resolution: 12.3 Mpix
- Sensor resolution (pixels): 4056 x 3040
- Optical format: 1/2.3 inch
- Pixel size: 1.55 µm x 1.55 µm
- Active sensor area: 6.287 mm x 4.712 mm
- Sensor diagonal: 7.9 mm
- Video output
- Typical video modes:
- 2028 x 1080 @ 50 fps
- 2028 x 1520 @ 40 fps
- 1332 x 990 @ 120 fps
- Lens
- Lens mount: C/CS
- Supported flange focal distance: 12.5 mm
- IR filter: Integrated 650 nm IR filter, visible light only
- Interface
- Interface: MIPI CSI-2
- Connector: FPC 22-pin
- Power and mechanics
- Camera board dimensions: 38 x 38 mm
- Tripod adapter: 1/4"-20 thread
- Functionality and compatibility
- Supported platforms: Raspberry Pi 5, Raspberry Pi 4B, Raspberry Pi 3B+, Raspberry Pi 3, Raspberry Pi 2, CM3, CM4, CM5, Raspberry Pi Zero W, Raspberry Pi Zero 2 W
- Supported operating system: Raspberry Pi OS Bookworm, Raspberry Pi OS Bullseye

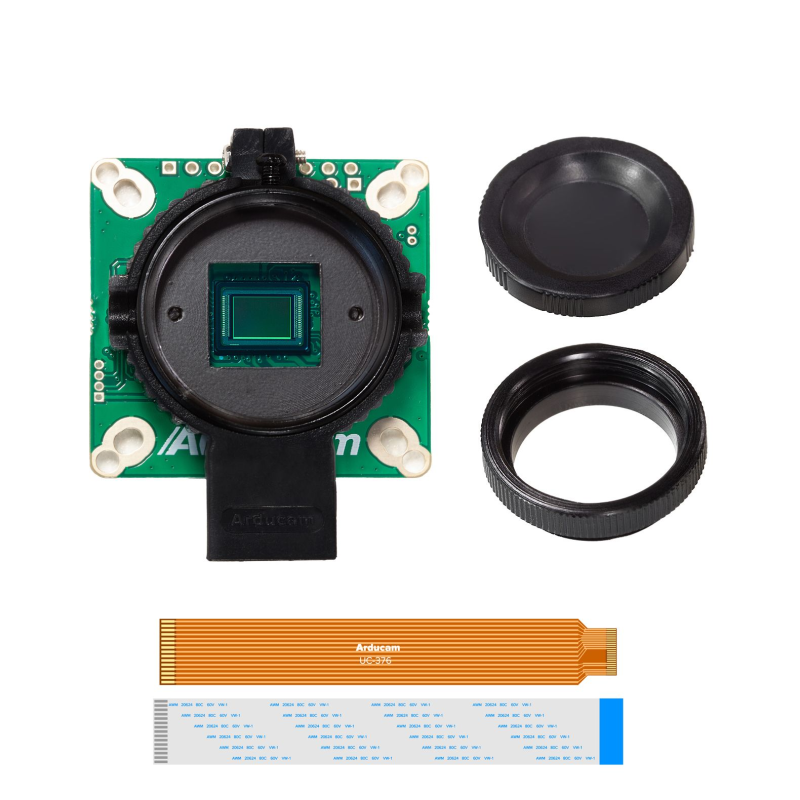

Kit includes
- 1x ArduCam 12.3MP IMX477 camera module with C/CS adapter and tripod adapter
- 1x FPC camera cable 15-pin to 22-pin, 150 mm
- 1x FPC camera cable 15-pin to 15-pin, 150 mm
1203005
Data sheet
- Resolution
- 12,3 MPx
- Interface
- MIPI CSI-2
- Sensor
- IMX477
- IR filter
- Yes
- Lens assembly
- C/CS mount
