CT432 TMR current sensor +/-20A 5V Pololu 5300
ID: 1194432
5902186337053
zł48.83
Tax included
zł39.70 tax excl.

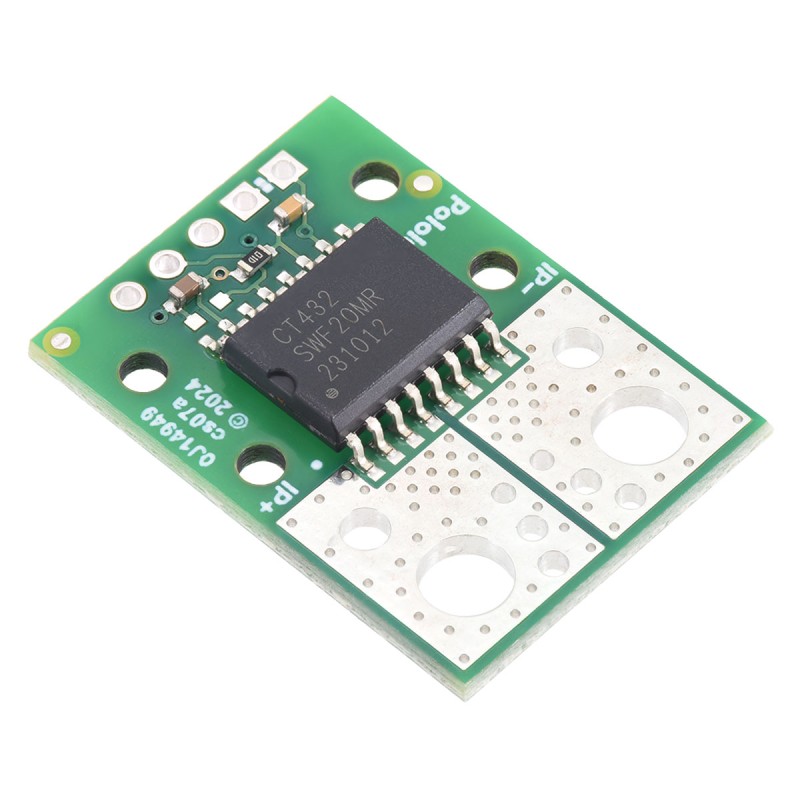

Compact current sensor Pololu 5300 based on the CT432-HSWF20MR, designed for current measurement in the range from -20A to +20A at 5V supply in applications requiring galvanic isolation and analog voltage output. Pololu 5300
Description
Compact current sensor based on the CT432-HSWF20MR, designed for measuring AC and DC currents in the range from -20 A to +20 A at a nominal supply voltage of 5 V. Measurement is performed using TMR (tunneling magnetoresistance) technology in an isolated current path with very low resistance (approx. 1 mΩ), which reduces power losses and minimizes the impact of the sensor on the measured circuit.
The output signal is provided as an analog voltage proportional to the measured current, with a zero-current output level of approximately 2.5 V. The module features a wide bandwidth up to 1 MHz and a short response time of approximately 300 ns, enabling monitoring of rapidly changing currents in power electronics and switching applications. The sensor includes an FLT output that indicates when the allowable current range is exceeded, which can be used in protection and diagnostic systems.
Features
- sensing IC: CT432-HSWF20MR
- sensing technology: TMR (tunneling magnetoresistance)
- current measurement range: -20 A to +20 A
- current type: AC and DC (bidirectional)
- supply voltage: 4.75 - 5.5 V
- nominal voltage: 5 V
- output type: analog, proportional to current
- sensitivity: 100 mV/A
- zero-current output voltage: approx. 2.5 V
- bandwidth: up to 1 MHz
- response time: approx. 300 ns
- primary current path resistance: approx. 1 mΩ
- measurement method: series (in-line), galvanically isolated

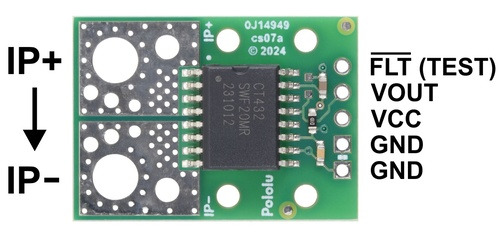

- FLT output (overcurrent indication)
- FLT threshold: approx. 110% of the measurement range
- supply current: approx. 6 mA
- PCB: 2 layers, 2 oz copper
- signal pin pitch: 2.54 mm
- dimensions: 0.8″ x 1.1″ (approx. 20.3 x 27.9 mm)
- weight: approx. 2.3 g
- operating temperature: -40°C to +125°C
- manufacturer: Pololu
- manufacturer code: 5300
1194432
Data sheet
- Interface
- Sygnał analogowy
- Zakres pomiarowy
- ±20 A
- Sposób podłączenia
- Szeregowy
- Dimension diagrams of the CT432/CT433 Current Sensor Carriers (425,83 kB)
- 3D model of the CT432/CT433 Current Sensor Compact Carriers (3,36 MB)
- Drill guide for the CT432/CT433 Current Sensor Compact Carriers (19,16 kB)

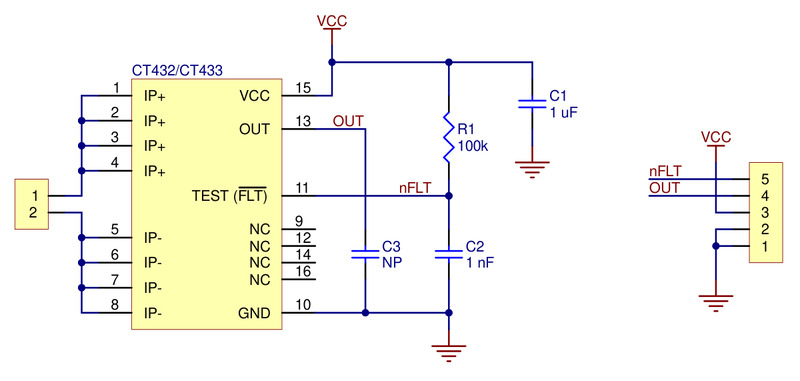

- Schematic diagram (48,60 kB)

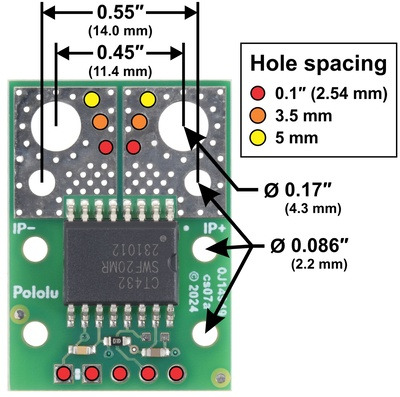

- CT432/CT433 TMR Current Sensor Compact Carrier basic hole dimensions. (58,07 kB)
- CT432 datasheet
