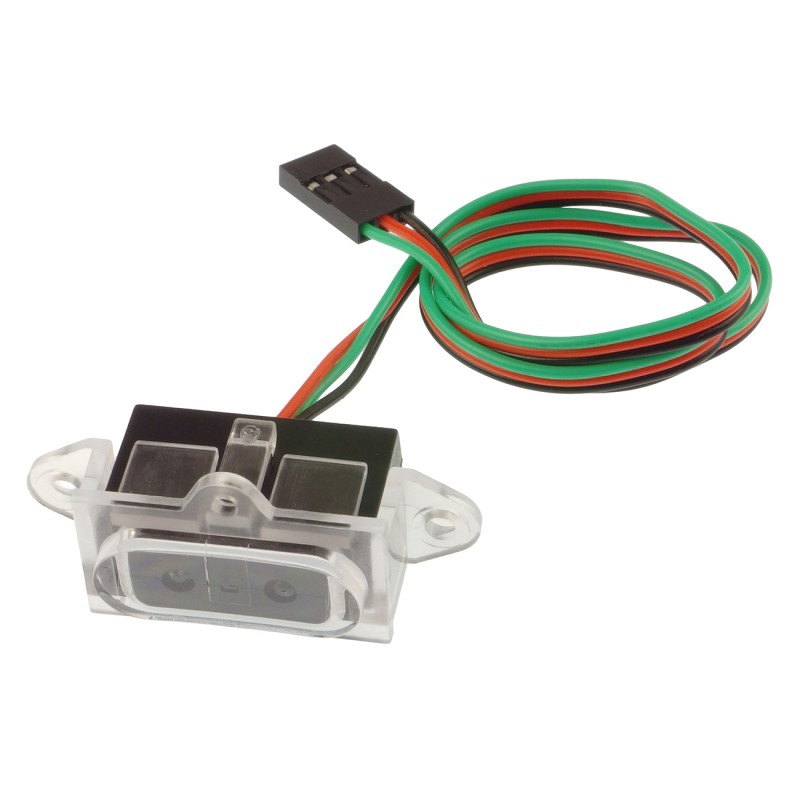

Infrared IR Proximity Sensor (10-80mm)
ID: 1185011
5902186311176
zł17.60
Tax included
zł14.31 tax excl.
IR proximity sensor used to detect objects at a distance of 10mm to 80mm using infrared radiation. It is powered by 5 V and has a digital output. DFRobot SEN0556
Description
IR proximity sensor used to detect objects at a distance of 10 (±5) mm to 80 (±20) mm using infrared radiation. It works on the principle of using emission and reflection of rays. It consists of two basic components: a transmitter and a receiver. The transmitter emits a beam of infrared radiation towards the area to be monitored. The receiver is sensitive to the reflection of this beam from objects within the range of the sensor.
The advantages of IR sensors are their strong anti-interference capability, fast response and small size. This makes the module easy to integrate into a variety of devices. The sensor has a housing with mounting holes, allowing users to design a suitable installation to ensure water resistance. This allows the module to also be used in sanitary facilities. The sensor is powered by 5 V and has a digital output. Full documentation and examples of use are available on the product page.
Features
- Output: digital (high/low level)
- Response time: 100µs
- Detection range: 10±5 to 80±20mm
- Service life: 50000h
- Operating voltage: 5 V
- Operating current: up to 30 mA
- Power: up to 100 mW
- Operating temperature: -20 to 75 ℃
- Storage temperature: -20 to 80 ℃
- Operating humidity: less than 70% ℃
1185011
Data sheet
- Interface
- Sygnał cyfrowy
- Type of sensor
- Infrared
- Minimum distance
- 1 cm
- Maximum distance
- 8 cm
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
