DFRobot TF Mini LiDAR - ToF laser sensor
search

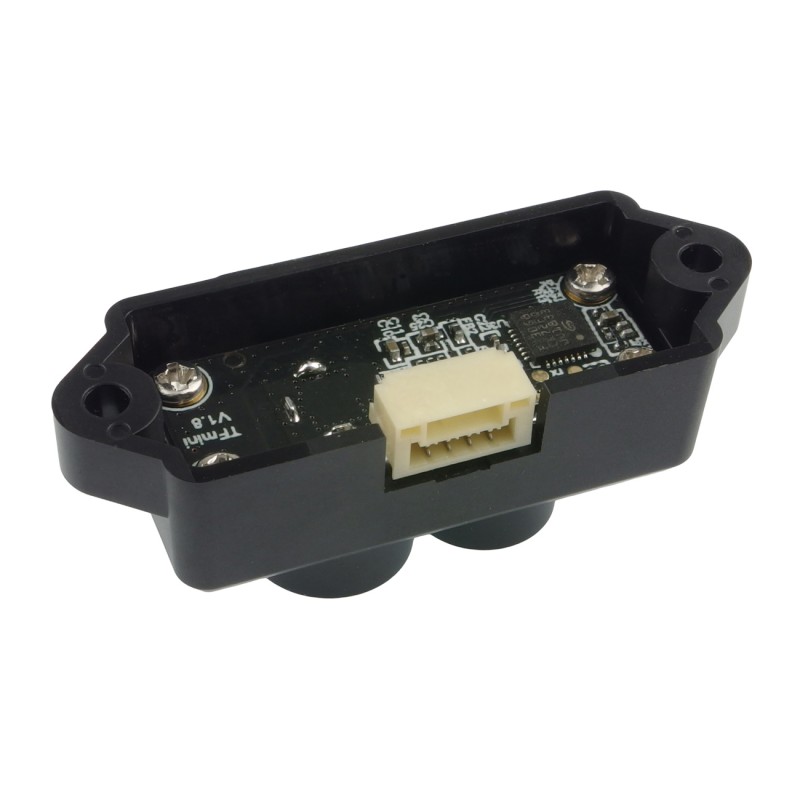

  • DFRobot TF Mini LiDAR - ToF laser sensor
  • DFRobot TF Mini LiDAR - ToF laser sensor (top view)
  • DFRobot TF Mini LiDAR - ToF laser sensor (bottom view)
  • DFRobot TF Mini LiDAR - ToF laser sensor (kit contents)
ID: 570405
zł224.09
Tax included

zł182.19 tax excl.

Range finder with a measuring range up to 12m. The current consumption is up to 120mA and the supply voltage 4.5 ... 6V. Communication via the UART interface. DFRobot SEN0259

24h
Available
Available quantity: 4
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

TF Mini LiDAR is a one-way rangefinder that is based on ToF (Time of Flight) technology. It consists of high quality optical and electrical devices that provide stability, high sensitivity and precision. Thanks to this, the sensor is ideally suited for drone or other unmanned applications. It can work under the influence of 70 klux light, resistant to interference from temperature, humidity, light, electronics and air flow. A laser beam with a wavelength of 850 nm is used for the measurement. The measuring angle is 2.3 °. The supply voltage is 5 V. It can measure with a frequency of up to 100 Hz and an accuracy of up to 5 mm. Transmission of measurement data takes place via the UART serial interface.

Attention!


UART interface works with 3.3 V logic, in order to be able to use a rangefinder with 5 V logic you should use a logic converter, eg Bi-directional converter of logic levels 1.8-2.8V, 3.3-5V.

properties

  • Communication interface: UART (TTL)
  • Working range: 0.3 ... 12 m
  • The maximum range of 10% reflectance: 5 m
  • Average power: 0.6 W
  • Acceptance angle: 2.3 °
  • Minimum resolution: 5 mm
  • Refresh rate: 100 Hz
  • Accuracy of measurement: 1% (<6 m), 2% (6 ~ 12 m)
  • Range unit: mm
  • Wavelength: 850 nm
  • Light resistance up to 70 klux
  • Voltage range: 4.5 ... 6 V
  • Average current consumption: 120 mA
  • Size: 42 x 15 x 16 mm
  • Working temperature: 0 ... 60 ° C
  • Weight: 4.7 g

Included

  • TF Mini LiDAR laser sensor (12m)
  • TF Mini LiDAR (12m) A cable
  • TF Mini LiDAR (12m) B cable

570405

Data sheet

Interface
UART
Type of sensor
ToF
Minimum distance
0 cm
Maximum distance
12 m
