ID: 1197473
zł161.41
Tax included

zł131.23 tax excl.

The ESP32-P4-NANO-KIT-C set is an advanced development tool for projects requiring high performance, multiple interfaces, and high reliability. Built-in security features, communication extensions, and the ability to integrate with cameras and displays make it an excellent platform for creating modern IoT solutions, vision systems, and HMI applications with edge data processing.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The ESP32-P4-NANO-KIT-C is a high-performance development kit based on the ESP32-P4 microcontroller with a RISC-V architecture (dual-core and single-core), designed for applications requiring advanced image and audio processing as well as human-machine interfaces (HMI). The kit includes a Raspberry Pi camera (5 MP), a PoE module for Ethernet power supply, an 8 Ω 2 W speaker, and an FFC cable.

The ESP32-P4 offers a wide range of peripheral interfaces, including MIPI-CSI (for camera), MIPI-DSI (for displays), USB 2.0 OTG, 100M Ethernet, SDIO 3.0, as well as a microphone, speaker connector, and RTC and GPIO headers. The included ESP32-C6-MINI-1 module provides wireless connectivity with Wi-Fi 6 and Bluetooth 5/BLE via the SDIO interface. Integrated security features include Secure Boot, Flash encryption, TRNG, and access permission separation.

Features

  • Microcontroller: ESP32-P4NRW32 – RISC-V (2+1 cores), 768 KB L2MEM, 32 MB PSRAM, 16 MB Flash
  • Interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet 100 Mbps, SDIO 3.0 (TF card slot)
  • Wireless communication: ESP32-C6-MINI-1 – Wi-Fi 6, Bluetooth 5/BLE (via SDIO interface)
  • Peripherals: microphone, 8 Ω 2 W speaker connector (MX1.25 2P), RTC, RTC battery connector
  • Security: Secure Boot, Flash Encryption, TRNG, access protection and permission separation
  • Camera: Raspberry Pi (OV5647, 5 MP, manual focus)
  • Display support: MIPI-DSI, expandable to touch screen (not included)
  • Power supply: USB-C, PoE module, or external 5 V via PoE connector
  • Compatible with ESP-IDF

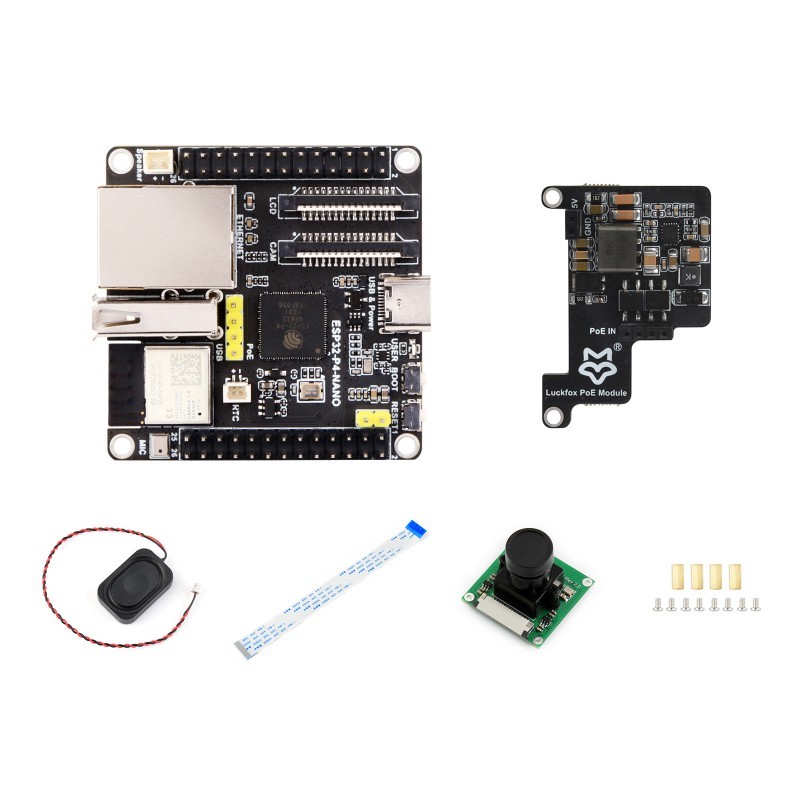

Included in the set

  • ESP32-P4-NANO board x1
  • Raspberry Pi Camera (B) 5 MP x1
  • PoE module x1
  • 8 Ω 2 W speaker x1
  • FFC 15PIN cable x1
  • Mounting screw kit x1
