ESP32-P4-ETH Development Board Kit with Touch Display, 100 Mbps Ethernet, PoE, AI Speech & Camera - Waveshare 32090

Description

ESP32-P4-POE-ETH-KIT-B development kit is built around the high-performance ESP32-P4 microcontroller and designed for applications requiring advanced multimedia interfaces, secure networking, and efficient edge computing. The ESP32-P4 features a 32-bit dual-core RISC-V processor, delivering strong capabilities for image, audio, and data processing in HMI systems, industrial applications, and AI-enabled edge devices.

The board is equipped with a 100 Mbps RJ45 Ethernet port, providing stable wired network connectivity, as well as a USB Type-C interface used for power supply and firmware programming. Integrated 32 MB PSRAM (in-package) and 32 MB NOR Flash memory provide sufficient resources for graphics rendering, video processing, and memory-intensive applications.

A rich set of interfaces includes MIPI-DSI for display connection, MIPI-CSI with integrated ISP for camera support, and numerous communication and control peripherals such as SPI, I2C, I2S, UART, ADC, PWM, MCPWM, RMT, and TWAI. The board also supports USB OTG 2.0 High Speed, a TF (microSD) card slot using the SDIO 3.0 protocol, onboard microphone input, and a speaker output header.

The onboard 40-pin GPIO header enables compatibility with selected Raspberry Pi Pico-style HAT modules, expanding prototyping and system integration possibilities. Advanced security features including Secure Boot, Flash Encryption, cryptographic accelerators, and a True Random Number Generator (TRNG) make the platform suitable for secure and reliable deployments.

1. ESP32-P4NRW32 - ESP32-P4 chip, with 32MB PSRAM
2. 100M RJ45 Ethernet port
3. 32MB Nor Flash
4. Display interface - MIPI-DSI (2-lane), supports 5/7/8/10.1 inch DSI screens
5. Camera interface - MIPI-CSI (2-lane), supports OV5647 camera, etc.
6. Type-C port - for power supply, program burning

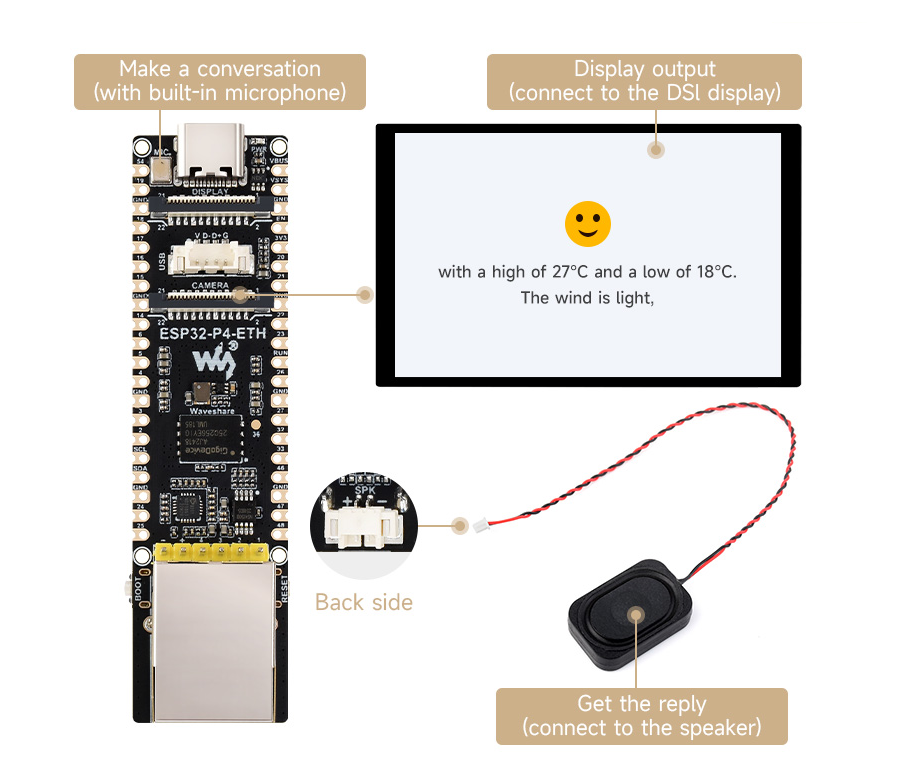

7. Onboard microphone
8. Speaker header - MX1.25 2P connector, supports 80 2W speaker
9. 4PIN USB header - USB OTG 2.0 High Speed interface
10. PoE module & power supply header
11. BOOT button - Press it when powering on or resetting to enter download mode
12. RST Reset button
13. Power indicator
14. TF card slot - SDIO 3.0 interface protocol

Features

• Microcontroller: ESP32-P4
• Architecture: 32-bit dual-core RISC-V
• PSRAM: 32 MB (in-package)
• Flash memory: 32 MB NOR
• ROM / SRAM:
  • 128 kB HP ROM
  • 16 kB LP ROM
  • 768 kB HP L2MEM
  • 32 kB LP SRAM
  • 8 kB TCM
• Networking: 100 Mbps Ethernet (RJ45)
• USB:
  • USB Type-C (power, programming)
  • USB OTG 2.0 High Speed
• Multimedia interfaces:
  • MIPI-DSI (2-lane) – 5″ / 7″ / 8″ / 10.1″ displays
  • MIPI-CSI (2-lane) – camera interface with integrated ISP
  • Hardware H.264 encoder
  • JPEG codecs, Pixel Processing Accelerator (PPA)
• Audio:
  • Onboard microphone
  • Speaker connector MX1.25 (8 Ω / 2 W)
• External storage: TF (microSD) card slot, SDIO 3.0
• GPIO:
  • 2 × 20-pin headers
  • 27 programmable GPIO lines
• Security features:
  • Secure Boot
  • Flash Encryption
  • Cryptographic accelerators
  • TRNG
  • Hardware privilege separation
• Power supply:
  • USB Type-C
  • PoE support (PoE module required)
• Applications: HMI systems, multimedia, edge computing, edge AI, automation, IoT

Kit includes

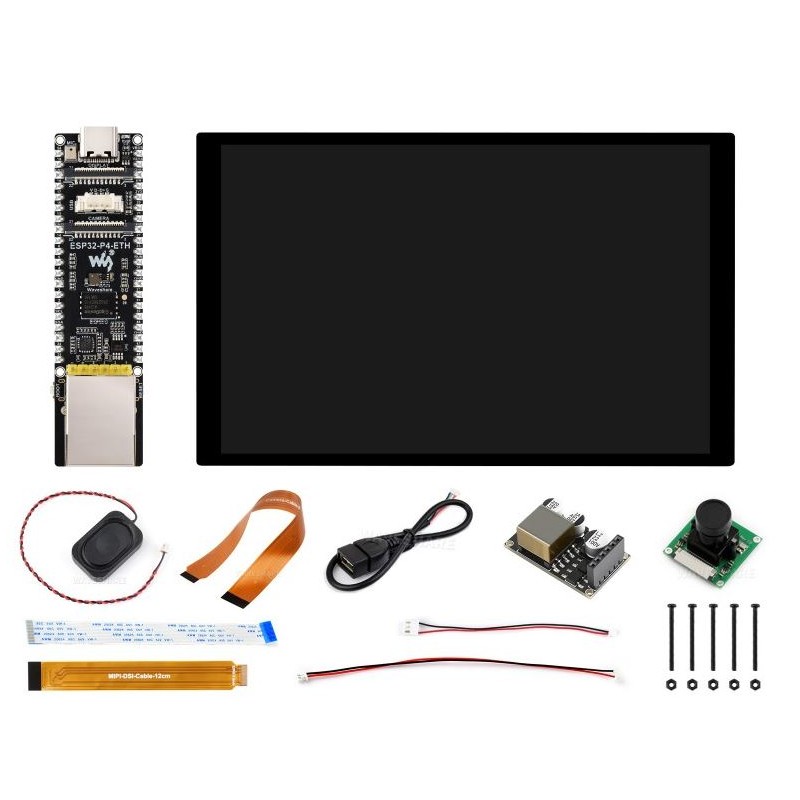

• ESP32-P4-ETH-M development board – 1 pc
• 10.1″ DSI capacitive touch display (10.1-DSI-TOUCH-A) – 1 pc
• PoE module – 1 pc
• Mounting screws set – 1 set
• 8 Ω / 2 W speaker – 1 pc
• Pi 5 camera cable – 200 mm – 1 pc
• FFC 15-pin cable – 1 pc
• Raspberry Pi Camera (B) – 1 pc
• MX1.25 4-pin to USB cable – 1 pc
• MIPI-DSI cable – 12 cm – 1 pc
• MX1.25 2-pin to 2.54 mm 3-pin cable – 1 pc
• FFC 22-pin cables ~220 mm (opposite direction) – 2 pcs
• MX1.25 2-pin to MX1.25 4-pin cable ~150 mm – 1 pc
• Mounting standoffs – 1 set
