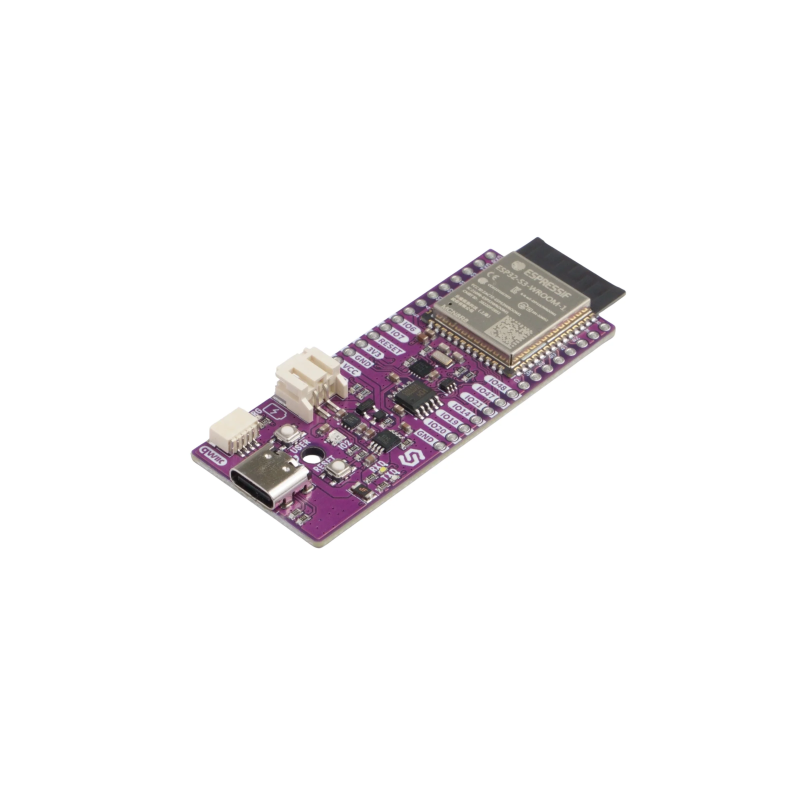

Soldered NULA DeepSleep ESP32-S3 (with male headers) - ESP32-S3 WiFi Bluetooth development board
ID: 1208362
zł75.31
Tax included
zł61.23 tax excl.
Energy-efficient development board based on the ESP32-S3-WROOM-1-N8R8 module, equipped with male pin headers and designed for IoT devices, data loggers, and battery-powered systems. It provides 8 MB of Flash memory, 8 MB of PSRAM, WiFi, Bluetooth LE, a PCF85063A RTC, and a Li-ion/Li-Po battery charger, while Deep Sleep current consumption is only 7 µA. Soldered 333369
Description
The ESP32-S3-WROOM-1-N8R8 module combines a dual-core Xtensa LX7 processor with 8 MB of Flash memory, 8 MB of PSRAM, and WiFi and Bluetooth LE connectivity. Deep Sleep current consumption of 7 µA helps reduce power usage in battery-powered devices, including wireless IoT nodes, data loggers, environmental sensors, and devices performing periodic measurements.
The integrated PCF85063A real-time clock enables timekeeping even while the main processor is in Deep Sleep, while the TP4056M circuit handles charging of a connected Li-ion or Li-Po battery. The board also includes a Qwiic connector for solderless peripheral integration and a USB-C connector for programming and power. Male pin headers with a 2.54 mm pitch enable installation in prototype circuits and on breadboards.
Features
- Module: ESP32-S3-WROOM-1-N8R8
- Processor: dual-core Xtensa LX7
- Flash memory: 8 MB
- PSRAM: 8 MB
- Wireless connectivity: WiFi / Bluetooth LE
- Deep Sleep current consumption: 7 µA
- RTC: PCF85063A
- Battery charger: TP4056M
- Supported batteries: Li-ion / Li-Po
- Expansion connector: Qwiic
- USB connector: USB-C
- Header version: male pin headers
- Pin pitch: 2.54 mm
- Breadboard-compatible design
- Applications: IoT / data logging / remote sensors / battery-powered devices
- Manufactured in Croatia, EU
Kit includes
- Soldered NULA DeepSleep ESP32-S3 board with male pin headers - 1 pc.
- USB-C to USB-C cable - 1 pc.
1208362
