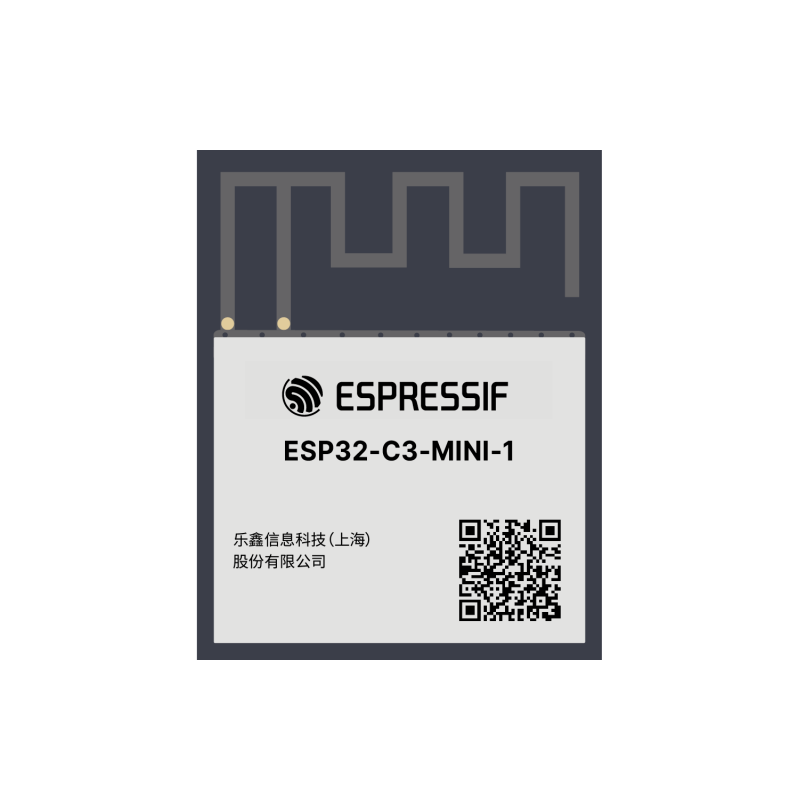

Main view
search
  • Main view
ID: 1207642
zł15.72
Tax included

zł12.78 tax excl.

IoT communication module with a RISC-V processor, supporting 2.4 GHz WiFi 802.11 b/g/n and Bluetooth 5 Low Energy. Equipped with 4 MB Flash memory, 15 GPIOs and an integrated PCB antenna. It operates from a 3.0 V to 3.6 V supply and is designed for SMD mounting. Espressif ESP32-C3-MINI-1-H4

4 weeks
Awaiting delivery

Description

ESP32-C3-MINI-1-H4 communication module supports WiFi and Bluetooth LE and is based on the ESP32-C3 with a 32-bit, single-core RISC-V processor clocked at up to 160 MHz. The module supports IEEE 802.11 b/g/n WiFi in the 2.4 GHz band, with channel frequencies from 2412 MHz to 2484 MHz, as well as Bluetooth 5 Low Energy. Built-in 4 MB Flash memory, 400 KB SRAM and up to 15 GPIOs allow the module to be used as a control and communication unit in IoT devices, industrial automation, smart home systems, data loggers and wireless sensors.

The ESP32-C3-MINI-1-H4 features an integrated PCB antenna and operates from a 3.0 V to 3.6 V supply. Available interfaces include SPI, UART, I2C, I2S, USB Serial/JTAG and TWAI compatible with CAN 2.0, while the chip also includes SAR ADCs and a temperature sensor. The module measures 13.2 × 16.6 × 2.4 mm, is designed for SMD mounting and operates over an ambient temperature range from -40°C to +105°C.

Features

  • Part number: ESP32-C3-MINI-1-H4
  • Product type: IoT communication module
  • Chip: ESP32-C3FH4
  • Processor architecture: 32-bit RISC-V
  • Number of cores: 1
  • Processor frequency: up to 160 MHz
  • Flash memory: 4 MB
  • ROM: 384 KB
  • SRAM: 400 KB
  • RTC SRAM: 8 KB
  • WiFi: IEEE 802.11 b/g/n
  • WiFi band: 2.4 GHz
  • WiFi frequency range: 2412 MHz to 2484 MHz
  • WiFi channel bandwidth: 20 MHz / 40 MHz
  • Maximum WiFi data rate: up to 150 Mbps
  • Bluetooth: Bluetooth 5 Low Energy
  • Bluetooth Mesh support
  • Number of GPIOs: up to 15
  • Interfaces: SPI, UART, I2C, I2S
  • USB Serial/JTAG
  • TWAI compatible with CAN 2.0
  • ADC: SAR ADC
  • Built-in temperature sensor
  • Antenna: integrated PCB antenna
  • Supply voltage: 3.0 V to 3.6 V
  • Typical supply voltage: 3.3 V
  • Operating temperature range: -40°C to +105°C
  • Mounting: SMD
  • Dimensions: 13.2 × 16.6 × 2.4 mm
