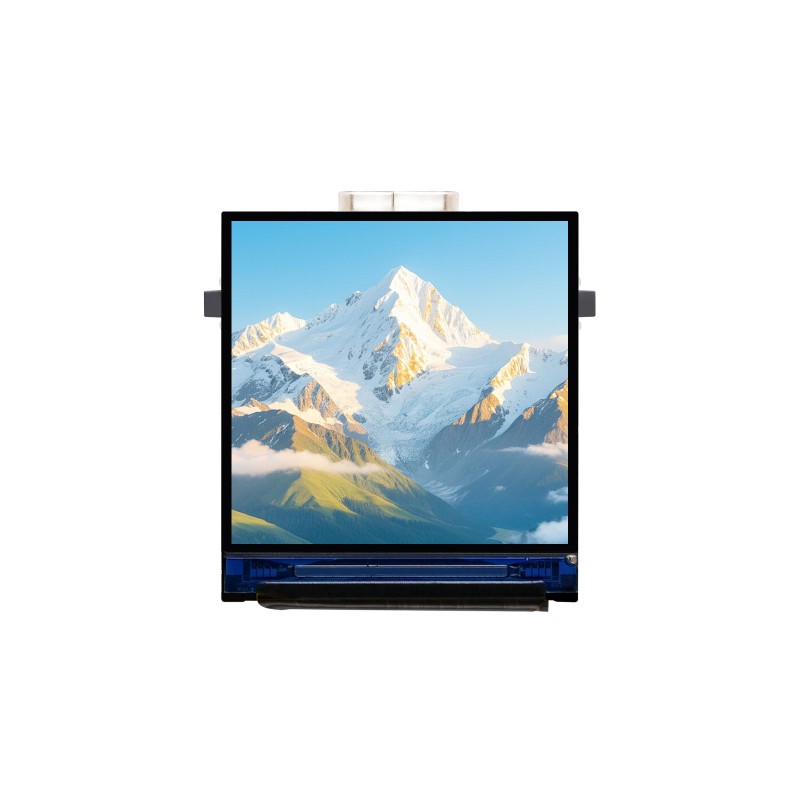

Main view
search
  • Main view
  • Display - front view
  • Display - angled view
  • Bottom view - development board
  • Side view - pre-soldered pin headers
  • Development board dimensions
ID: 1203369
zł51.35
Tax included

zł41.75 tax excl.

Development board with ESP32-C6FH4 microcontroller, 1.3" IPS LCD 240x240px 262K colors, SPI interface, WiFi6, BLE5 and IEEE 802.15.4 support, version with pre-soldered pin headers. Waveshare ESP32-C6-LCD-1.3-M

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-C6 development board with a 1.3" IPS LCD featuring 240 x 240 pixel resolution, intended for IoT projects and embedded systems requiring a graphical user interface. The ST7789 display driver communicates via the SPI interface, enabling integration with libraries available for ESP-IDF and Arduino IDE environments.

The ESP32-C6FH4 microcontroller integrates a 32-bit RISC-V core and an additional low-power 32-bit RISC-V core. The board supports WiFi 6, Bluetooth 5 LE, Bluetooth Mesh and IEEE 802.15.4 (Zigbee 3.0, Thread), enabling implementation of wireless nodes, control panels and data logging devices. The PCB includes a USB Type-C port for power supply and programming, RST and BOOT buttons, onboard antenna and TF card slot. The version with pre-soldered pin headers allows direct connection to breadboards and expansion modules without additional soldering.

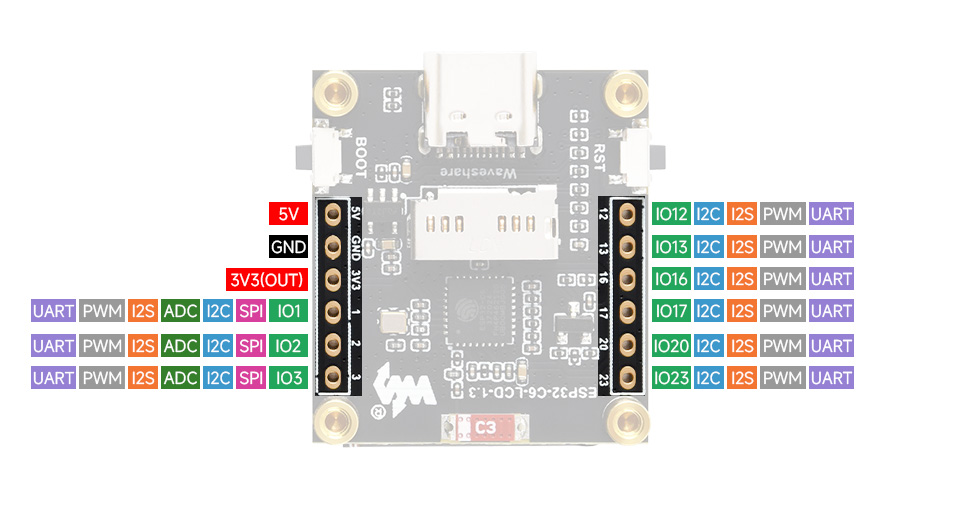

p1203370-ESP32-C6-LCD-1.3-details-intro.jpgp1203370-ESP32-C6-LCD-1.3-details-inter.jpg

  1. ESP32-C6FH4
  2. RST button
  3. BOOT button
  4. USB Type-C port
  5. TF card slot
  6. Onboard antenna

Features

  • Microcontroller: ESP32-C6FH4
  • Display: IPS 1.3"
  • Resolution: 240 x 240 px
  • Display colors: 262K
  • Display driver: ST7789
  • Display interface: SPI
  • Wireless connectivity: WiFi 6, Bluetooth 5 LE, Bluetooth Mesh, IEEE 802.15.4
  • Connector: USB Type-C
  • Memory card slot: TF Card
  • Buttons: RST, BOOT
  • Antenna: Onboard
  • PCB finish: Immersion Gold
  • Weight: 8 g

Kit includes

  • ESP32-C6-LCD-1.3-M - Version with pre-soldered pin headers
