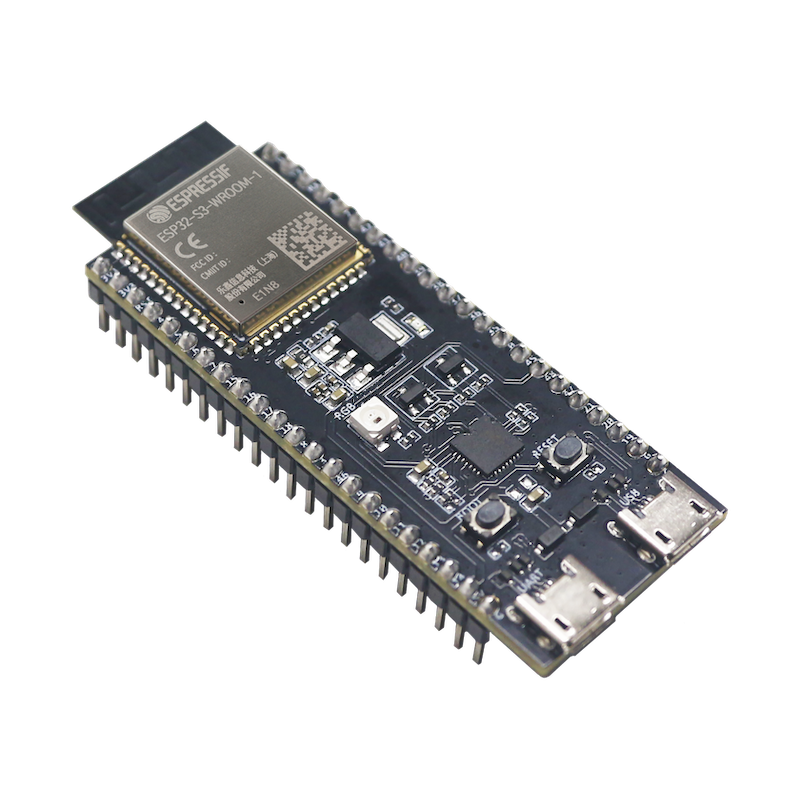

This development board, based on the ESP32-S3-WROOM-2 module, is designed for high-performance IoT and AIoT applications. Equipped with 32MB of Flash memory and 16MB of PSRAM, it provides high-performance computing, enabling multimedia projects, data analysis, and machine learning at the edge of the network. It offers Wi-Fi and Bluetooth LE connectivity, as well as two USB interfaces, including a native USB OTG, for easy communication, programming, and debugging. Espressif Systems ESP32-S3-DevKitC-1-N32R16V

6 weeks
Awaiting delivery

Description

ESP32-S3-DevKitC-1-N32R16V is an advanced development board based on the ESP32-S3-WROOM-2 module, designed for building high-performance IoT and AIoT applications. The device integrates Wi-Fi and Bluetooth® Low Energy, providing stable wireless connectivity for modern embedded projects. This version is equipped with expanded memory: 32 MB Flash and 16 MB PSRAM, enabling more demanding data-processing applications. As a result, the board is well suited for multimedia processing, data analytics, and edge machine learning tasks.

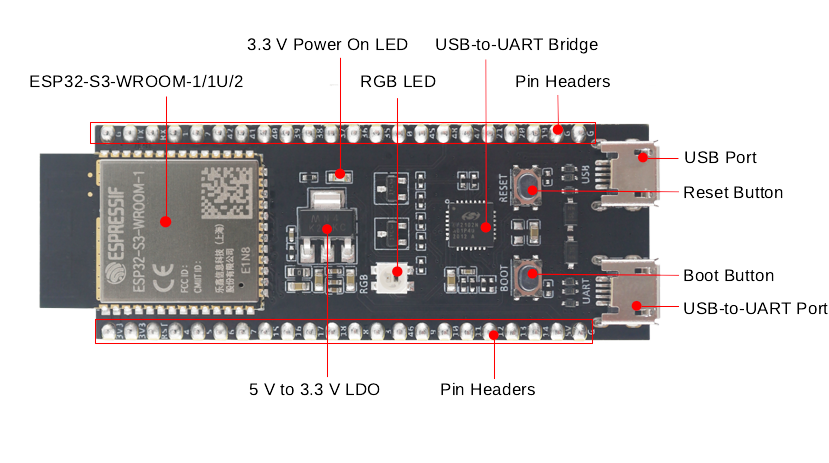

The system is based on the powerful ESP32-S3 microcontroller, which provides hardware acceleration for neural network computing and signal processing. The board design ensures easy access to all key interfaces by exposing GPIO pins on edge connectors. This allows rapid prototyping and connection of external modules using jumper wires or breadboards. A built-in USB–UART converter enables easy programming and debugging. The board features two independent USB interfaces: a classic USB-to-UART port and a native USB OTG interface supporting communication, power delivery, and JTAG debugging. Stable power supply is ensured by a 5 V to 3.3 V LDO regulator, guaranteeing safe operation of all components. Additionally, the board includes BOOT and RESET buttons for programming mode entry and system reset. An addressable RGB LED is also available for software-controlled status indication or testing purposes, along with a 3.3 V power LED indicating proper power supply. The ESP32-S3-DevKitC-1-N32R16V is an excellent choice for projects requiring large memory capacity, high performance, and extensive connectivity options.

Features

  • Module: ESP32-S3-WROOM-2-N32R16V
  • Microcontroller: ESP32-S3 with Wi-Fi and Bluetooth® Low Energy support
  • Flash memory: 32 MB (Octal SPI)
  • PSRAM: 16 MB (Octal SPI)
  • Wireless connectivity: Wi-Fi + Bluetooth LE
  • USB OTG interface: USB 1.1 Full-Speed (communication, power, and JTAG)
  • USB-to-UART port: Micro-USB (programming and communication)
  • USB–UART converter: up to 3 Mbps transfer rate
  • Power system: 5 V to 3.3 V LDO regulator
  • GPIO pins: all available pins (except SPI flash/PSRAM lines)
  • RGB LED: addressable LED controlled via GPIO38
  • Power LED: 3.3 V power-on indicator
  • Buttons: BOOT (programming mode), RESET (system restart)
  • Programming interfaces: USB-to-UART and native ESP32-S3 USB
  • Pin limitations: GPIO35, GPIO36, GPIO37 not available (used by SPI memory)
  • Dimensions: 62.7 × 25.4 mm
