ID: 1189633
zł6,849.00
Tax included

zł5,568.29 tax excl.

An industrial edge AI computer based on the NVIDIA Jetson Orin NX 16GB module, offering up to 100 TOPS of computing power for advanced AI and image analysis tasks. Equipped with an 8-core Arm Cortex-A78AE processor and an NVIDIA Ampere GPU with 1024 CUDA cores and 32 Tensor cores, it enables efficient real-time data processing directly at the network edge. The device features a rich set of interfaces, including 2x Gigabit Ethernet (with PoE support), RS232/RS422/RS485, CAN, USB, and HDMI, as well as a fast 128GB NVMe SSD. Seeed Studio 110110191

24h
Available
Available quantity: 1
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

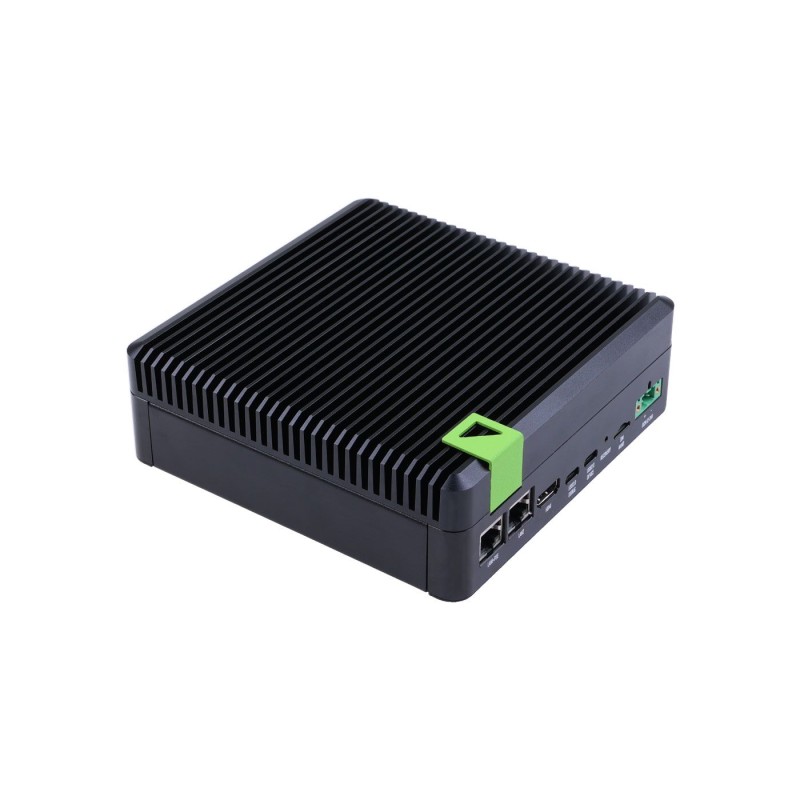

reComputer Industrial J4012 is an industrial Edge AI computer designed for operation in demanding industrial environments and artificial intelligence applications. The device is based on the NVIDIA Jetson Orin™ NX 16GB module, which provides high computing performance of up to 100 TOPS, enabling advanced tasks related to image analysis, machine learning, and real-time data processing. Thanks to the high-performance GPU based on the NVIDIA Ampere architecture and the multi-core Arm processor, the computer can handle complex AI algorithms directly at the network edge.

The device is designed for stable operation in industrial systems, mobile robotics, video monitoring systems, and generative artificial intelligence applications. The fanless design with a passive heatsink ensures reliable operation by eliminating moving parts and increasing resistance to dust, vibrations, and harsh environmental conditions. This makes the computer suitable for industrial automation, intelligent manufacturing systems, and control applications.

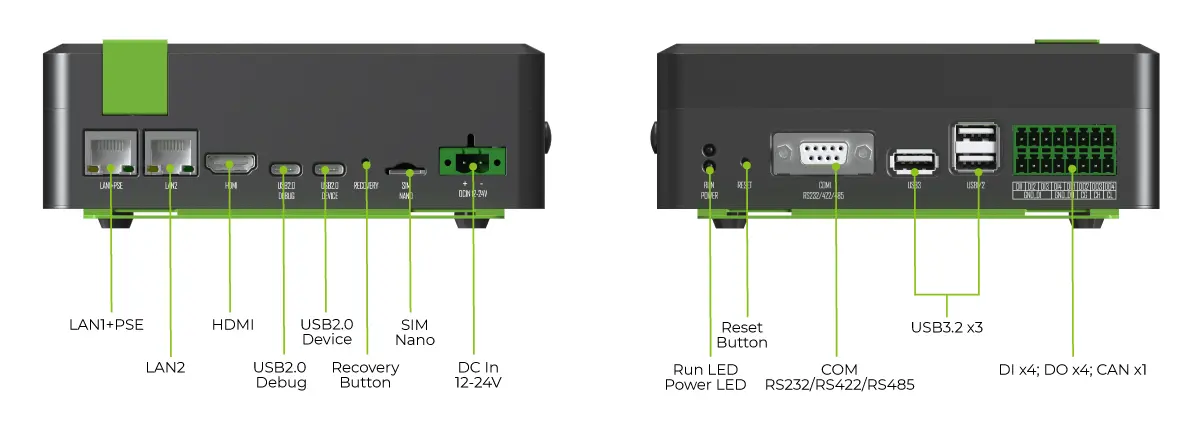

The reComputer Industrial J4012 offers a wide range of communication interfaces that enable integration with numerous devices and sensors. These include two RJ45 Ethernet ports, an RS232/RS422/RS485 interface, a CAN bus, and USB and HDMI connectors. Support for communication modules via M.2 Key B allows the system to be expanded with 4G or 5G connectivity, while the SIM card slot enables integration with cellular networks. The device is equipped with a fast 128 GB NVMe SSD, providing high data read and write performance. The platform also supports cameras via MIPI CSI connectors, enabling the creation of vision systems and advanced image processing applications.

Thanks to support for the NVIDIA Jetson platform, the computer provides access to a broad ecosystem of AI tools, including frameworks for video analytics, deep learning, and natural language processing. The system is well suited for applications such as image analysis, vision systems, autonomous mobile robots (AMR), generative AI, and intelligent monitoring. The enclosure design allows flexible installation in various environments – the device can be mounted on a desk, wall, DIN rail, or using the VESA standard. With its durable enclosure and IP40 protection rating, the computer is suitable for industrial environments. The reComputer Industrial J4012 combines high computing performance with industrial reliability and a rich set of interfaces, making it a versatile platform for modern Edge AI systems.

Features

  • Compute module: NVIDIA Jetson Orin NX 16GB
  • AI performance: up to 100 TOPS
  • GPU: 1024-core NVIDIA Ampere with 32 Tensor Cores
  • CPU: 8-core Arm Cortex-A78AE v8.2 64-bit
  • RAM: 16 GB LPDDR5 128-bit
  • DL accelerator: 2× NVDLA v2
  • Video decoding: 1× 8K30 (H.265), 2× 4K60 (H.265), 4× 4K30 (H.265), 9× 1080p60 (H.265), 18× 1080p30 (H.265)
  • Video encoding: 1× 4K60 (H.265), 3× 4K30 (H.265), 6× 1080p60 (H.265), 12× 1080p30 (H.265)
  • Storage: 1× M.2 Key M PCIe Gen4.0 SSD
  • Included drive: NVMe M.2 2280 SSD 128 GB
  • Ethernet ports: 2× RJ45 Gigabit Ethernet
  • LAN1: RJ45 GbE PoE (PSE 802.3af 15 W)
  • LAN2: RJ45 GbE 10/100/1000 Mbps
  • Wi-Fi/Bluetooth support: optional SMD module integration (production version)
  • M.2 Key B slot: supports optional 4G/5G modules
  • SIM card slot: Nano SIM
  • USB ports: 3× USB 3.2 Gen1, 1× USB 2.0 Type-C (device mode), 1× USB 2.0 Type-C (debug UART and RP2040)
  • Digital I/O: 4× DI, 4× DO, 3× GND_DI, 2× GND_DO, 1× GND_ISO
  • CAN bus: 1× CAN
  • Communication port: 1× DB9 (RS232/RS422/RS485)
  • Video output: 1× HDMI 2.0 Type-A
  • Camera support: 2× CSI (2-lane 15-pin)
  • Cooling: passive heatsink (fanless design), optional 5V PWM fan connector
  • TPM: 1× TPM 2.0 connector (optional module)
  • RTC: 1× RTC socket, 1× RTC 2-pin
  • Mounting: desktop, DIN rail, wall mount, VESA
  • Power supply: 12 to 24 V DC
  • Power connector: 2-pin screw terminal
  • Power adapter: 19 V (without power cable)
  • Dimensions: 159 × 155 × 57 mm
  • Weight: 1.57 kg

Kit contains

  • reComputer Industrial J4012 (system preinstalled)
  • 2× mounting brackets
  • DIN rail mounting bracket
  • 4× mounting screws
  • 16-pin terminal block for digital I/O
  • 19 V power adapter
  • 2-pin power terminal block
