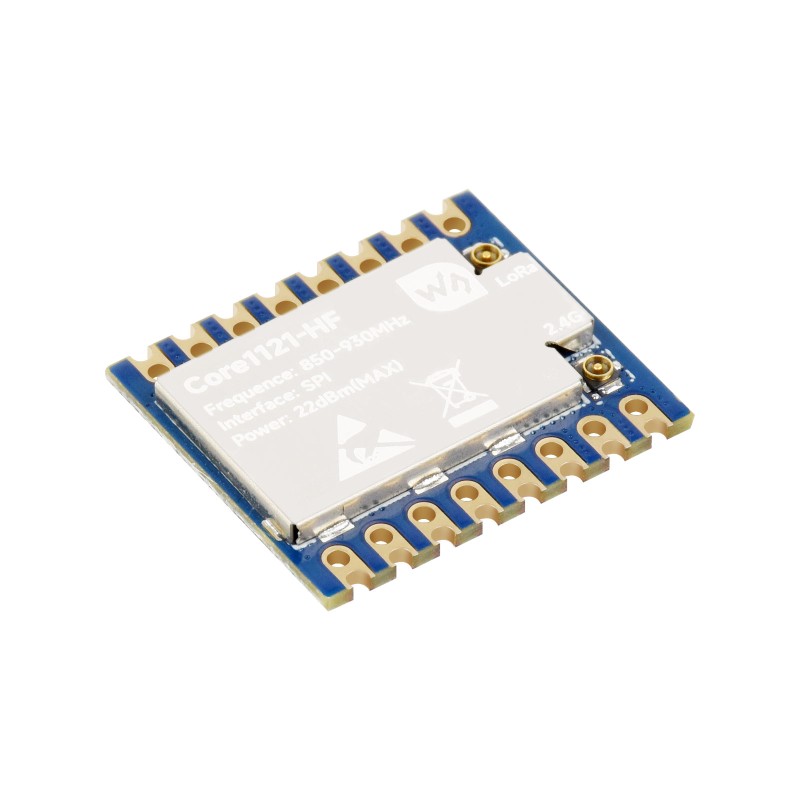

  • Angled view – top of the module
  • Angled view – bottom of the module
ID: 1199747
zł46.85
Tax included

zł38.09 tax excl.

Dual-band LoRa communication module based on the LR1121 transceiver, supporting Sub-GHz 850–930 MHz and 2.4 GHz bands, featuring SPI interface, AES-128 encryption, and an integrated TCXO. HF version without pre-soldered pin headers, intended for soldered mounting. Waveshare Core1121-HF

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare 31899 Core1121-HF LoRa module is designed for low-power wireless communication in LPWAN networks, suitable for IoT applications requiring long range, high reliability, and operation across multiple frequency bands. It is built around the third-generation low-power LR1121 transceiver, enabling transmission in both Sub-GHz and 2.4 GHz ISM bands for global deployment in compliance with local radio regulations.


The module supports LoRa, (G)FSK, and LR-FHSS modulation schemes, ensuring compatibility with earlier solutions based on SX126X, SX127X, and SX128X series chips. Communication with a host microcontroller is handled via an SPI interface, allowing easy integration with popular platforms such as ESP32, Raspberry Pi, STM32, and Raspberry Pi Pico.

An onboard TCXO improves frequency stability across a wide temperature range, while the hardware AES-128 encryption engine enhances data security for LoRa and LoRaWAN networks. The version without pre-soldered pin headers is intended for direct PCB soldering or applications requiring custom connector selection.


Features

  • RF Chip: LR1121
  • Frequency Range: 850–930 MHz, 1.9–2.1 GHz, 2.4–2.5 GHz
  • Supported Modulations: LoRa, (G)FSK, LR-FHSS
  • Data Rate:
    • LoRa: 0.091 kbps – 62.5 kbps
    • (G)FSK: 0.6 kbps – 300 kbps
  • Transmit Power:
    • Sub-GHz: −9 dBm to 22 dBm
    • ISM: −18 dBm to 13 dBm
  • Receiver Sensitivity:
    • Sub-GHz: −127 dBm
    • ISM: −111 dBm
  • Typical Range:
    • Sub-GHz: up to 5 km
    • ISM: up to 2 km
  • Communication Interface: SPI
  • Encryption: AES-128
  • Oscillator: 32 MHz TCXO
  • Supply Voltage: 3.3 V
  • Logic Level: 3.3 V
  • Current Consumption:
    • Sub-GHz TX: 115 mA @ 22 dBm
    • Sub-GHz RX: 9.2 mA
    • ISM TX: 25 mA @ 13 dBm
    • ISM RX: 8.1 mA
  • Antenna Interface: IPEX-4, castellated solder pads
  • Antenna Protection: TVS
  • Operating Temperature: −40 °C to 85 °C
  • I/O: Castellated edges, 2.54 mm pitch
  • Dimensions: 19 × 22 mm
  • Version: HF, without pre-soldered pin headers

Kit includes

  • Core1121-HF LoRa module – 1×
  • IPEX4 to SMA cable – 1×
  • 2 dBi SMA antenna – 1×
  • 2.4 GHz antenna – 1×
