PmodGPS
ID: 196614
5906623491155
zł218.64
Tax included
zł177.76 tax excl.
GPS Receiver, Digilent, RoHS
PmodGPS
GPS Receiver, Digilent, RoHS
The PmodGPS is an ideal solution for any embedded system in need of satellite positioning accuracy. It features the GlobalTop Gms-u1LP GPS antenna module which utilizes the MediaTek GPS MT3329. The Pmod GPS utilizes a standard 6-pin connector and communicates via 2-wire UART. Also available on the board is a 2-pin connector for control of the NRST pin to the module and also the RTCM pin for DGPS data of RTCM protocol (this feature is disabled by default, contact GlobalTop to enable). The PmodGPS uses UART protocol for data transmission and reception. By default, the interface uses a baud rate of 9600, 8 data bits, no parity, and a single stop bit. The module provides the option for changing the baud rate to predefined values which range from 4800 to 115,200.
Features:
- Standard UART interface
- Input voltage: 3V – 3.6V
- 10Hz maximum update rate (1Hz Default rate)
- 3m 2D accuracy without aid
- Super low power consumption (24mA tracking and 30mA during acquisition)
- Ultra-high sensitivity: -165dBm
- 515m/s maximum velocity and 18,000m
- Integrated ceramic GPS antenna
- Auto switchover to external antenna
- 12.5mm coin cell retainer for battery backup of GPS RTCC and almanac
Download:
Code: 210-237
196614
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
GPS antenna, internal, SMA-A, 5m, straight, magnet
zł29.90
24h
Available quantity: 19
Available
Other products in the same category (16)
Module with a GPS receiver based on the MTK3333 chip. It is equipped with a STEMMA QT connector and communicates via the UART or I2C interface. Adafruit 4415
zł180.63
24h
Available quantity: 3
Available
GPS module with LC29H GNSS receiver designed to work with the Raspberry Pi minicomputer. It allows you to receive data from major positioning systems, including GPS, QZSS, GLONASS, Galileo and BeiDou, and supports the RTK function as a base station. Waveshare LC29H(BS) GPS/RTK HAT
zł292.83
24h
Available quantity: 5
Available
L76K GNSS receiver module. It can receive data from GPS, GLONASS, BDS and QZSS systems. It uses a UART interface and offers an accuracy of up to 2 meters. Waveshare L76K GPS Module
zł59.90
24h
Available quantity: 23
Available
Compact GNSS Module Integrated with Patch Antenna MT3333 Solution, Quectel, RoHS
zł54.37
24h
Available quantity: 3
Available
Advanced GNSS receiver based on the Quectel LG290P module, which supports four frequency bands: L1, L2, L5 and E6, enabling reception of signals from GPS, GLONASS, Galileo, BDS, QZSS and NavIC satellite systems. With support for SBAS and PPP, the module provides highly precise positioning, and the built-in anti-jamming unit minimizes electromagnetic interference, which ensures reliability in difficult conditions. The Qwiic connector allows easy integration with systems, and low power consumption makes it an ideal solution for applications requiring long-term battery operation. SparkFun GPS-26620
zł892.82
3 weeks
No product available!
No product available!
Kit with GNSS RTK Surveyor receiver, L1/L2 antenna and accessories. It allows you to get centimeter-level global positioning measurements using GNSS RTK. SparkFun GPS-17370
zł3,566.32
3 weeks
No product available!
A geolocation and measurement device that allows measurement with an accuracy of centimeters. It can operate in "rover" mode with RTK support or as a base station. It uses the ESP32 module and Bluetooth communication as well as the advanced ZED-F9P GPS module. SparkFun GPS-19984
zł3,773.41
3 weeks
No product available!
Available
GPS module with 72-channel GNSS NEO-M8P-2 receiver. It can receive data from GPS, GLONASS and BeiDou systems. It has USB, UART, I2C and SPI interfaces. RTK and high accuracy up to 25mm. SparkFun GPS-15005
zł1,671.85
3 weeks
No product available!

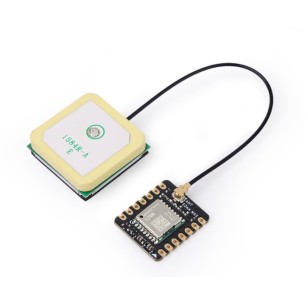

Compact and energy-efficient GNSS module that supports GPS, BeiDou, GLONASS and QZSS systems, offering precise positioning in applications such as robotics and asset tracking. With a built-in low-noise amplifier (LNA), acoustic filter (SAW) and support for 32 tracking channels, the module provides high sensitivity, low power consumption and fast localization, and allows easy integration with Seeed Studio XIAO boards. Seeed Studio 109100021
