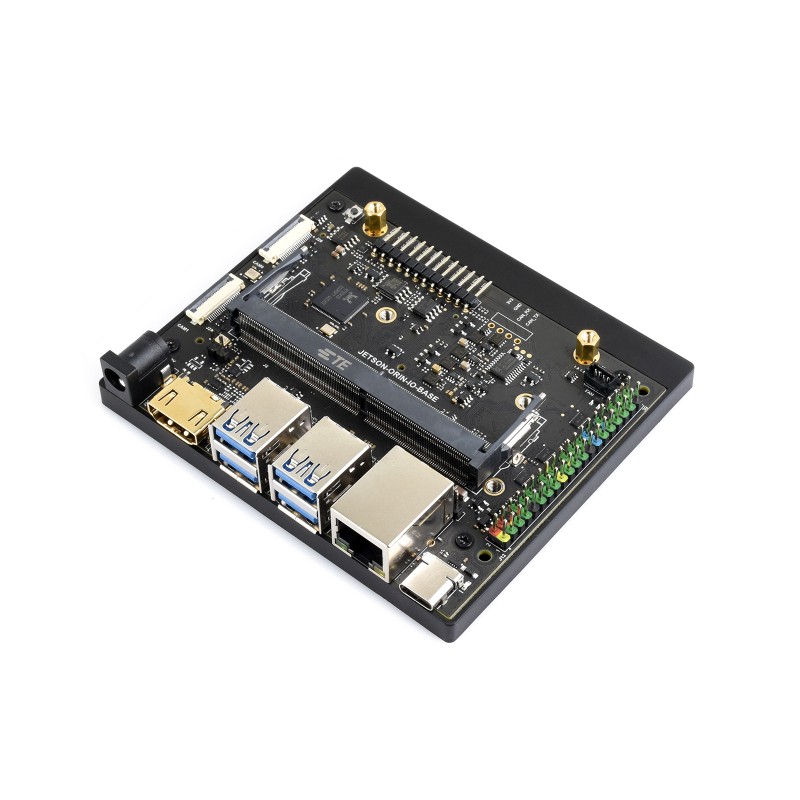

Waveshare 33495 - main view
search
  • Waveshare 33495 - main view
  • 33495 - base board front view (top side)
  • Waveshare 33495 - bottom view (top side)
  • Waveshare 33495 - bottom view (angled)
ID: 1202992
zł335.08
Tax included

zł272.42 tax excl.

HDMI base board designed for NVIDIA Jetson Orin Nano and Jetson Orin NX modules, dimensionally and functionally compatible with the official Jetson Orin Nano Developer Kit. Waveshare JETSON-ORIN-IO-BASE-H

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Waveshare 33495 is an HDMI version base board designed for use with NVIDIA Jetson Orin Nano and Jetson Orin NX modules, mounted in a 260-pin SO-DIMM socket, providing functional and dimensional compatibility with the official Jetson Orin Nano Developer Kit base board. The board offers a wide range of interfaces, including HDMI output, two MIPI CSI-2 camera connectors, four USB 3.2 Gen2 Type-A ports, a USB Type-C port, Gigabit Ethernet, and M.2 Key M and M.2 Key E slots, enabling integration of vision systems, NVMe storage, and wireless connectivity. Power is supplied via a 9–19 V DC jack, and additional connectors such as 40-pin GPIO, PWM fan header, RTC connector, and a 12-pin service header allow the board to be used in AI projects, robotics, and edge computing systems.

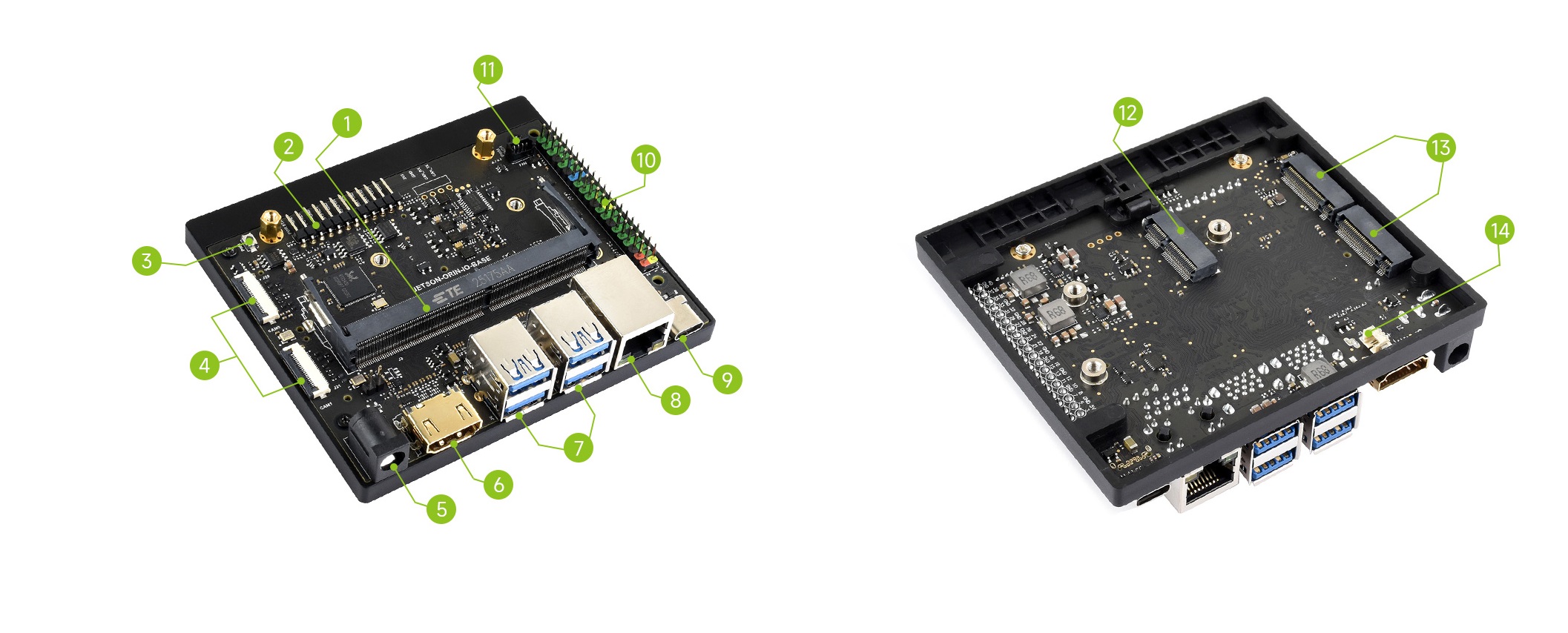

  1. 260PIN DO-DIMM socket - for connecting Jetson Orin Nano/NX module
  2. 12PIN header - Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable and power indicator functions
  3. Power button
  4. 2 × 22PIN CSI camera interfaces - 2 × MIPI CSI 4-lane camera interfaces
  5. DC Power jack - Supports wide range 9V~19V power supply, compatible with 5.5 × 2.5mm male plug
  6. HDMI display interface - HDMI output
  7. 4 × USB 3.2 Gen2 Type-A ports - Supports up to 10Gbps data transmission
  8. RJ45 Gigabit Ethernet port
  9. USB Type-C port - for system burning and data communication
  10. 40PIN header
  11. 4PIN PWM fan header
  12. M.2 Key E - for connecting wireless NIC
  13. 2 × M.2 Key M - for connecting NVME solid state drives
  14. RTC backup battery header - PH1.25 2PIN

Features

  • Supported modules
    • Supported modules: NVIDIA Jetson Orin Nano
    • Supported modules: NVIDIA Jetson Orin NX
    • Module socket: 260-pin SO-DIMM
  • Video output
    • Video interface: HDMI
  • Camera interfaces
    • Number of camera interfaces: 2
    • Camera standard: MIPI CSI-2
    • Configuration: 2 x MIPI CSI 4-lane
    • Camera connectors: 2 x 22-pin
  • USB interfaces
    • USB Type-A ports: 4
    • USB Type-A standard: USB 3.2 Gen2
    • Maximum USB bandwidth: up to 10 Gbps
    • USB Type-C port: 1
    • USB Type-C function: data communication, recovery mode, system flashing
  • Network
    • Network interface: Gigabit Ethernet
    • Network connector: RJ45
  • Expansion and storage
    • M.2 Key M slots: 2
    • Supported storage: NVMe SSD
    • M.2 Key E slot: 1
    • Supported modules: WiFi, Bluetooth
  • Power supply
    • Input voltage range: 9 V – 19 V
    • Power connector: DC 5.5 x 2.5 mm
  • Additional connectors and components
    • GPIO connector: 40-pin
    • Fan connector: 4-pin PWM
    • RTC connector: PH1.25 2-pin
    • Service connector: 12-pin
    • Buttons: Power
  • Physical properties
    • Dimensional compatibility: Jetson Orin Nano Developer Kit
    • Board weight: 0.093 kg

Kit includes

  • 1x JETSON-ORIN-IO-BASE-H
  • 1x Mounting screws pack
