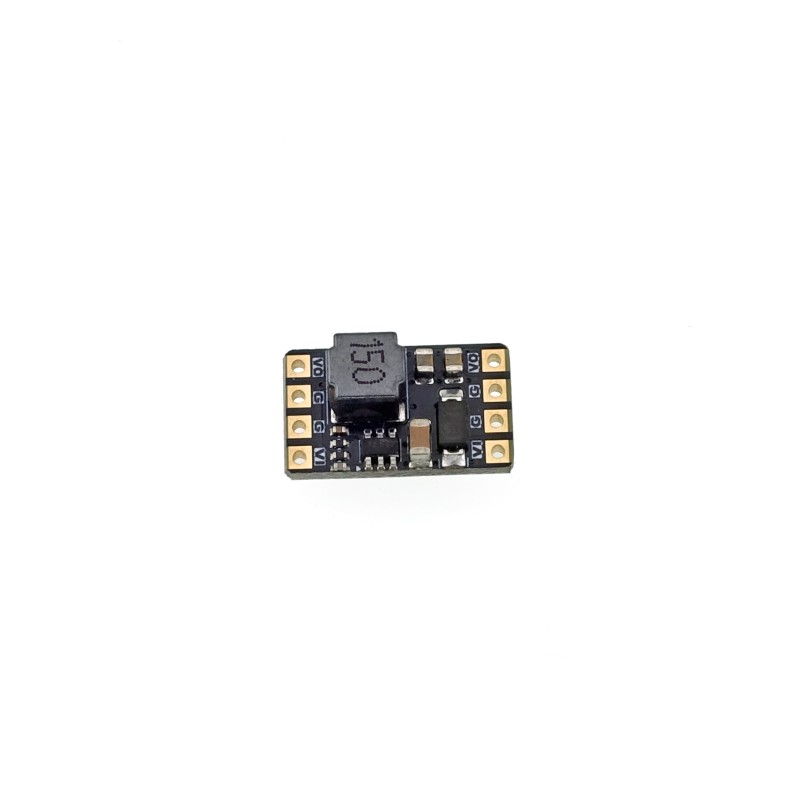

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1204057
zł15.99
Tax included

zł13.00 tax excl.

Miniature 12 V switching voltage regulator based on the AP63200 IC, input range 3.5 - 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 12V

24h
Available
Available quantity: 20

Description

KAmod-DCDC-AP63200 12V is a compact Step-Down buck converter module designed to provide a stable 12 V output voltage. The module is based on the AP63200 switching regulator operating at 500 kHz, enabling high efficiency while maintaining small overall dimensions.

The module operates within an input voltage range of 3.5 V to 32 V. The maximum continuous output current is 1 A, while peak current can reach up to 1.5 A depending on thermal conditions. For proper operation, the input voltage should be at least 1 V higher than the required output voltage.

The converter achieves approximately 90% efficiency at 1 A load. Integrated protection features include overvoltage, overload, and thermal protection. The compact 18 x 11 mm size allows integration into space-constrained electronic designs.

Features

  • Converter IC: AP63200
  • Converter type: switching Step-Down buck
  • Output voltage: 12 V
  • Input voltage range: 3.5 - 32 V
  • Maximum continuous output current: 1 A
  • Maximum peak output current: 1.5 A
  • Switching frequency: 500 kHz
  • Efficiency: approx. 90% at 1 A
  • Protections: overvoltage, overload, thermal
  • Dimensions: 18 x 11 mm
1204057

Data sheet

Output voltage
12V
Output current
1A
Converter type
Step-down
Supply voltage min
3,5 V
Supply voltages max
32 V
