1C15 - 110MHz portable digital oscilloscope
ID: 1184599
5906623434572
zł275.64
Tax included
zł224.10 tax excl.
Portable digital oscilloscope with one measurement channel. It offers a frequency bandwidth of 110 MHz and at a sampling rate of 500 MS/s. Fnirsi 1C15
Description
Portable digital oscilloscope with one measurement channel. Offering a frequency bandwidth of 110 MHz and with a sampling rate of 500 MS/s, the oscilloscope allows real-time detection of signal variations. The instrument can measure basic parameters including frequency, period and duty cycle of a signal. Also worth noting is the trigger mode, which can operate in automatic, normal or single measurement mode. The maximum voltage that can be applied to the measurement connector is 40 V with an x1 divider and 400 V with an x10 divider. The Autoset function makes it easy to adjust the time base and voltage sensitivity automatically to suit the signal under test. The oscilloscope is powered by a 3000 mAh battery. It is charged via a USB connection. The waveforms are presented on a built-in 2.4" TFT LCD display, guaranteeing good visibility of the waveforms. It will prove its worth in all conditions, particularly as a pocket tool for working outside the workshop.
Features
- Number of channels: 1
- Bandwidth: 110 MHz
- Sampling frequency: 500 Msa/s
- Sampling memory depth: 12 kb
- Horizontal sensitivity: 5 ns to 10 s/div
- Vertical sensitivity: 20 mV to 100 V/div
- Trigger mode: auto, normal, single measurement
- Trigger type: rising edge, falling edge
- Trigger level: adjustable
- Input resistance: 1MΩ
- Input voltage: 40 V to 400 V (probe x10)
- Autoset function
- Automatic measurement of basic parameters
- Coupling mode: DC, AC
- IPS 2.4'' colour LCD display
- Display resolution: 320x240 px
- Power supply: 3000 mAh battery (up to 10 h operating time)
- Charging connector: USB 5V
- Dimensions: 114 x 74 x 33 mm
Kit contains
- Oscilloscope 1C15
- USB cable
- Power supply
- Measuring probe P6100
- BNC-cable
1184599
Data sheet
- Type of oscilloscope
- Portable
- Bandwidth
- 110 MHz
- Sampling rate
- 500 Ms/s
- Memory depth
- 12 kpts
- Number of channels
- 1
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
A 2-in-1 device that combines a digital oscilloscope with an LCR tester. It allows oscilloscope measurements and testing of electronic components, including diodes and transistors. Fnirsi DSO-TC2 Standard
Regular pricezł206.90zł165.52
24h
Available quantity: 5
Available
A 3-in-1 device that combines a digital oscilloscope with an LCR tester and a DDS generator. It allows oscilloscope measurements and testing of electronic components, including diodes and transistors, as well as generation of digital signals. Fnirsi DSO-TC3
Regular pricezł270.54zł189.00
24h
Available quantity: 16
Available
Other products in the same category (16)
Pocket-sized digital oscilloscope with 8MB memory. Based on a microcontroller with an ARM Cortex-M3 core, it is equipped with a 320x240 pixel color display and signal generation function. MiniWare DS213
zł914.00
24h
Available quantity: 10
Available
Portable digital oscilloscope with built-in signal generator and multimeter. It has two measurement channels with a bandwidth of 10 MHz and a single-channel signal generator with a frequency of up to 2 MHz. Fnirsi 2C23T
zł259.00
6 weeks
No product available!

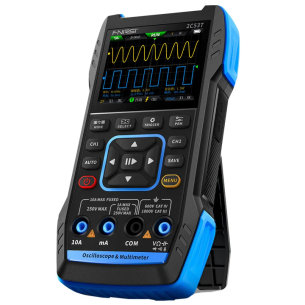

Fnirsi 2C53T High Profile - 2-channel 50MHz oscilloscope with multimeter and generator + accessories
A compact 3-in-1 device combining an oscilloscope, multimeter, and signal generator, designed for electronics professionals and enthusiasts. Equipped with two 50 MHz channels, a 250 MS/s sampling rate, and a built-in 4.5-digit multimeter, it provides precise measurements of signals and electrical parameters. With a color HD screen, long-lasting battery, and data logging capabilities, it\'s the ideal tool for laboratory, service, and field work. Fnirsi 2C53T High Profile
zł366.86
6 weeks
No product available!

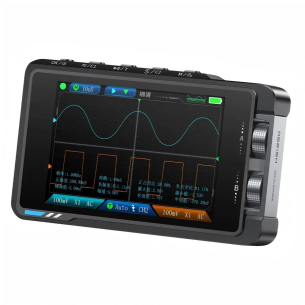

Compact digital oscilloscope with built-in DDS signal generator, offering 50 MHz bandwidth and 250 MSa/s sampling. It has two measurement channels, 3.5" IPS display and the function of generating 13 types of waveforms up to 50 kHz. Thanks to the 1500 mAh battery, it will be useful in mobile work, service and education. Fnirsi DS215H Standard
