Mini Base Board (B) for Raspberry Pi CM5 with enclosure and power supply - Waveshare 31234
ID: 1197764
5902186305328
zł188.55
Tax included
zł153.29 tax excl.

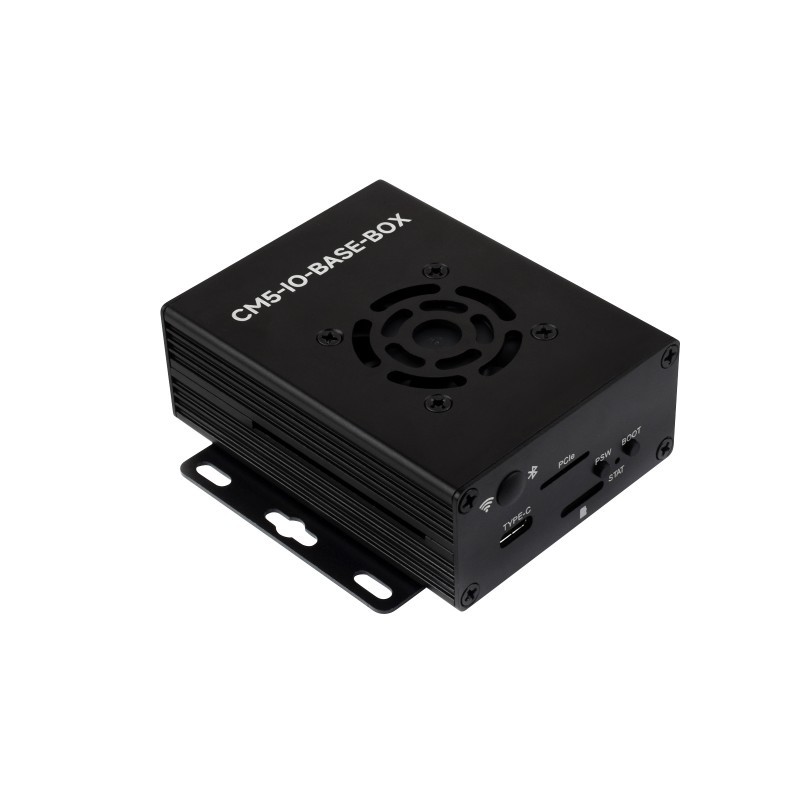

CM5-IO-BASE-BOX-B (EU) is a complete hardware platform for the Raspberry Pi Compute Module 5, including a base board, a metal enclosure with ventilation holes and a fan, and a 27 W power supply. It supports advanced features such as dual 4K output, high-speed data transfer via USB 3.2, and network connectivity via Gigabit Ethernet. With MIPI, GPIO, M.2, and TF connectors, as well as wall or DIN rail mounting options, it is suitable for embedded projects, industrial systems, and edge computing solutions. Raspberry Pi Compute Module 5 not included.
Description
The CM5-IO-BASE-B baseboard with aluminum enclosure and 27 W power supply is designed to work with Raspberry Pi Compute Module 5. It features a CM5 connector supporting all CM5 variants, dual HDMI output with 4K support, two USB 3.2 Gen1 ports, two MIPI interfaces, an M.2 M Key socket, and a gigabit Ethernet port. An integrated EEPROM and ATSHA204 authentication chip enable secure symmetric authentication. The board also includes a 40-pin GPIO header in Raspberry Pi standard, a TF card slot for CM5 Lite versions, a 4-pin JST-SH fan connector, and BOOT and power buttons. The metal enclosure with ventilation holes provides airflow and allows mounting on a wall or DIN rail. The set includes the CM5-FAN-4010-5V fan.
Specifications
- Compatibility: all Raspberry Pi Compute Module 5 variants
- USB ports: 2× USB 3.2 Gen1 Type-A, 2× USB 2.0 (6-pin 1 mm FFC connector)
- HDMI: 2× HDMI ports (one via FFC), dual 4K output support
- MIPI: 2× 4-lane MIPI interfaces (22-pin 0.5 mm connectors)
- Networking: Gigabit Ethernet RJ45
- GPIO: 40-pin header compatible with Raspberry Pi
- Card slot: TF card for CM5 Lite
- Fan connector: 4-pin JST-SH, 5 V, PWM
- M.2 socket: M Key for NVMe SSDs (2230 / 2242)
- Power supply: DC 5 V 5 A
- Dimensions: 85×56 mm (board), 90×68 mm (with enclosure)
- Extras: EEPROM CAT24C32, ATSHA204 chip, BOOT button, power button, status LED, mounting brackets
Included
- CM5-IO-BASE-B board x1
- Aluminum enclosure (top and bottom) x1
- Rubber antenna plug x1
- EVA foam pad x1
- CM5-FAN-4010-5V fan x1
- DIN rail bracket x1
- Screw kit x1
- Screwdriver x1
- 27 W power supply x1
