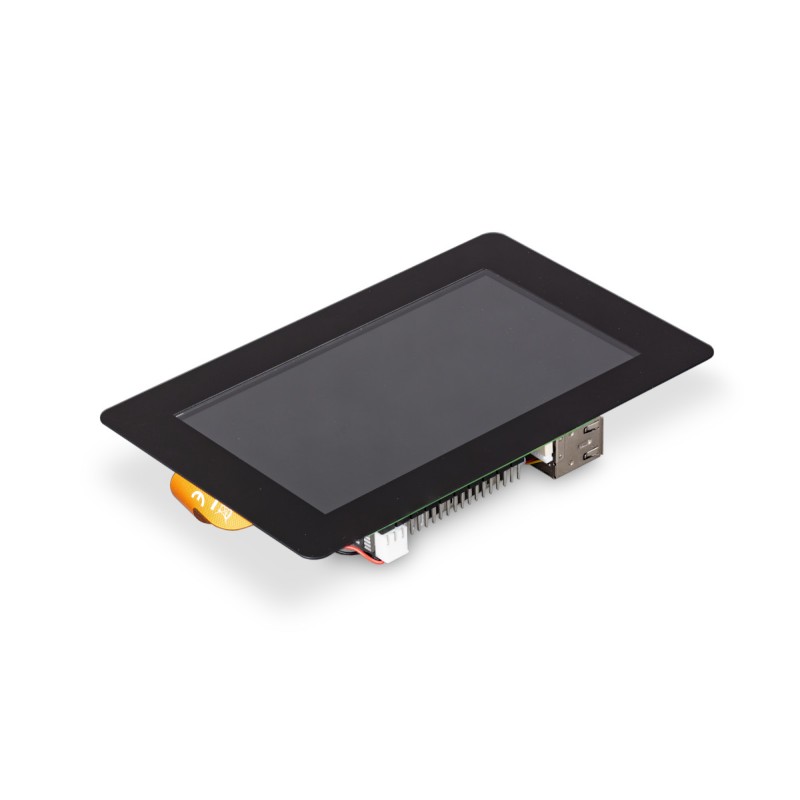

Raspberry Pi Touch Display 2 (5” Portrait)
ID: 1198426
5056561803944
zł185.90
Tax included
zł151.14 tax excl.
The 5" Raspberry Pi Touch Display 2 is a high-quality touchscreen display for interactive projects, control panels, and multimedia systems. Its compact design, GPIO power supply, and full integration with the Raspberry Pi OS make the screen suitable for both prototypes and finished devices. Raspberry Pi SC1975
Description
The 5-inch Raspberry Pi Touch Display 2 is an LCD screen with a capacitive touchscreen, designed for use with Raspberry Pi boards from the 1B+ model upwards (excluding the Zero and 400/500 series, which do not have a DSI connector). The display operates in portrait orientation and can be rotated 90°, 180°, or 270°, allowing for flexible adaptation to projects requiring both portrait and landscape modes. A 720 x 1280 pixel resolution and 24-bit color gamut ensure clear readability and high image quality. Support for five simultaneous touch points enables full multitouch interaction with the system, including scrolling, swiping, long pressing, and using the on-screen keyboard.
The screen is powered directly from the Raspberry Pi via the GPIO connector, eliminating the need for a separate power supply. Touch and image communication is handled via the DSI interface using FFC cables tailored to the specific board model (15-pin to 15-pin for most models and 22-pin to 15-pin for the Raspberry Pi 5). The included mounting hardware allows for direct mounting of the Raspberry Pi to the back of the display, allowing for the creation of a compact setup in the form of a tablet, control panel, multimedia center, or interactive information board.
Touch and display settings are configured via the Raspberry Pi OS system files. It is possible to invert the touch axis, swap the X and Y axes, change the logical resolution, and disable the touchpad. The display is supported directly by Raspberry Pi OS Bookworm and later, without the need to install additional drivers.
Features
- 5" LCD screen
- 720 × 1280 pixel resolution
- 24-bit color display (over 16 million colors)
- Capacitive touchscreen, supports up to 5 points simultaneously
- Portrait orientation with 90°, 180°, and 270° rotation
- Supports full system control without a mouse or keyboard
- Powered directly from the Raspberry Pi GPIO (5V)
- Connection via DSI interface (FFC 15-15 or 22-15 depending on the model)
- Compatible with Raspberry Pi 1B+, 2B, 3B, 3B+, 4B, and 5
Included
- Raspberry Pi Touch Display 2.5"
- 15-pin to 15-pin FFC cable
- 22-pin to 15-pin (for Raspberry Pi 5)
- GPIO power cable
- 8 M2.5 screws for mounting the Raspberry Pi to the back of the screen
1198426
Data sheet
- Screen type
- LCD
- Diagonal (inch)
- 5
- Resolution
- 720 × 1280 px
- Interface
- DSI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
