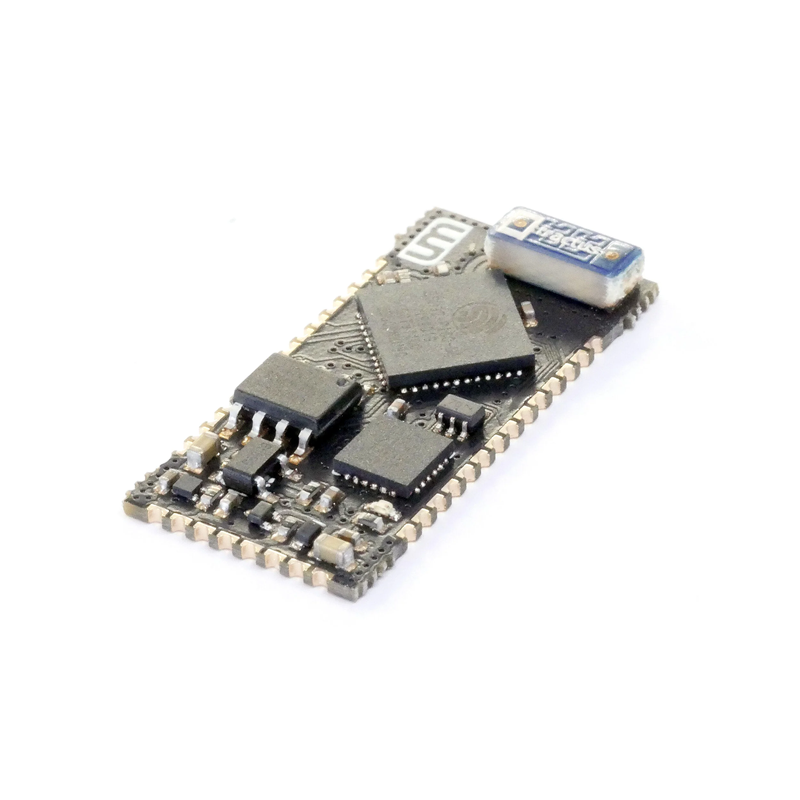

TinyPICO Nano ESP32 - development board with ESP32 PICO-D4 module
ID: 1201008
5902186337084
zł101.30
Tax included
zł82.36 tax excl.
This compact ESP32-based board offers full functionality in a package measuring just 13 x 27 mm. Equipped with a 3.3 V regulator (700 mA), 4 MB of PSRAM, a battery charger, and 27 GPIO pins, it delivers high performance with minimal power consumption. Separate 5 V and 3.3 V power paths and automatic disconnection of unused components increase energy efficiency. The TinyPICO NANO works with the Arduino IDE, MicroPython, and ESP-IDF.
Description

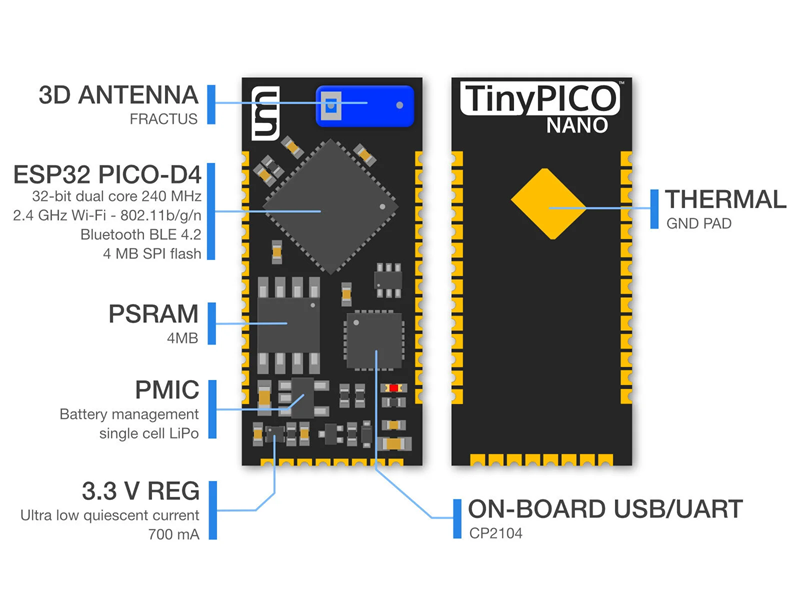

TinyPICO NANO is a miniature yet fully functional ESP32-based board, designed for direct integration into your own PCB. Despite its compact size (13 × 27 mm), TinyPICO NANO makes no compromises in terms of performance or functionality. Equipped with a 700 mA 3.3 V regulator, a built-in battery management circuit, 4 MB of additional PSRAM, and 27 GPIO pins, the module offers the full capabilities of a classic ESP32 in an ultra-compact form.
TinyPICO NANO has been optimized for low-power operation – in deep sleep mode it consumes less than 20 µA (typically 18 µA). This makes it perfect for battery-powered applications and IoT devices where energy efficiency is critical. The power system is divided into two independent rails: 5 V and 3.3 V. Components unnecessary in battery mode are automatically disconnected when 5 V power is not present, further reducing energy consumption. Even the power LED is disabled in this mode.

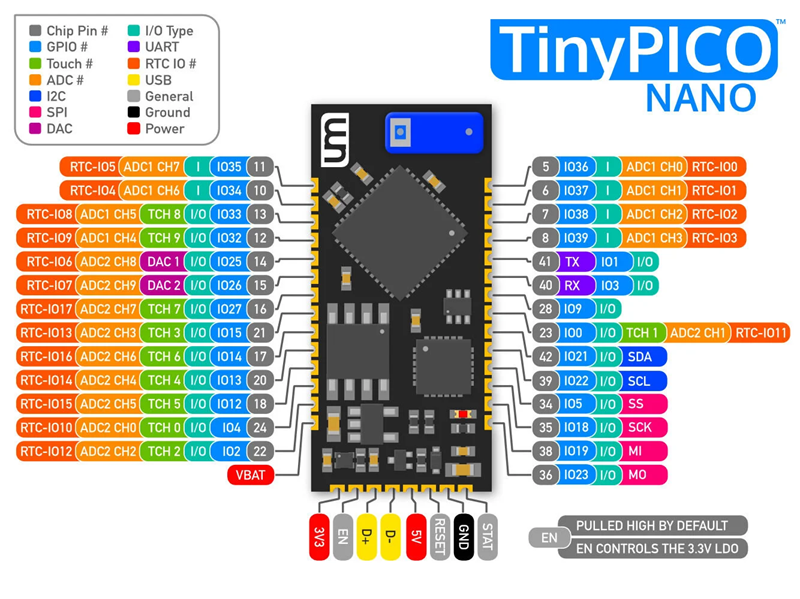

All available pins are exposed, including 6 ADC1 input pins, as well as EN (to disable the 3.3 V LDO) and STAT (battery charging status indicator) pins. TinyPICO NANO is compatible with popular development environments such as Arduino IDE, MicroPython, and ESP-IDF, enabling fast prototyping and project development. The module is supplied without a USB connector – users can add their own on a carrier board by wiring VBUS (5V), GND, D+, and D- to the corresponding module pins. TinyPICO NANO is designed for reflow or hot-air soldering using SAC305 solder paste. Combining low power consumption, rich functionality, and minimal size, TinyPICO NANO is the perfect solution for designers creating intelligent, compact, and efficient electronic systems.
Features
- ESP32 PICO-D4 module
- Supply voltage: 5 V / 3.3 V
- Regulator: 3.3 V, 700 mA
- PSRAM: 4 MB
- GPIO count: 27
- Deep sleep current: 18 µA (typically below 20 µA)
- Separate 5 V and 3.3 V power rails
- Built-in battery charging circuit
- Special pins: EN (Enable), STAT (charging status)
- Software compatibility: Arduino IDE, MicroPython, ESP-IDF
- Dimensions: 13 × 27 mm
