7″ HMI Touch Display with ESP32-P4 - Wi-Fi 6, BLE 5, All-In-One without battery - Waveshare 33147

Description

The ESP32-P4-WIFI6 Touch LCD 7″ without battery is a high-performance, integrated HMI (Human–Machine Interface) platform designed for applications requiring an advanced user interface, high computing performance, and secure wireless communication. The device is developed by Waveshare and is based on the modern ESP32-P4 microcontroller with RISC-V architecture.

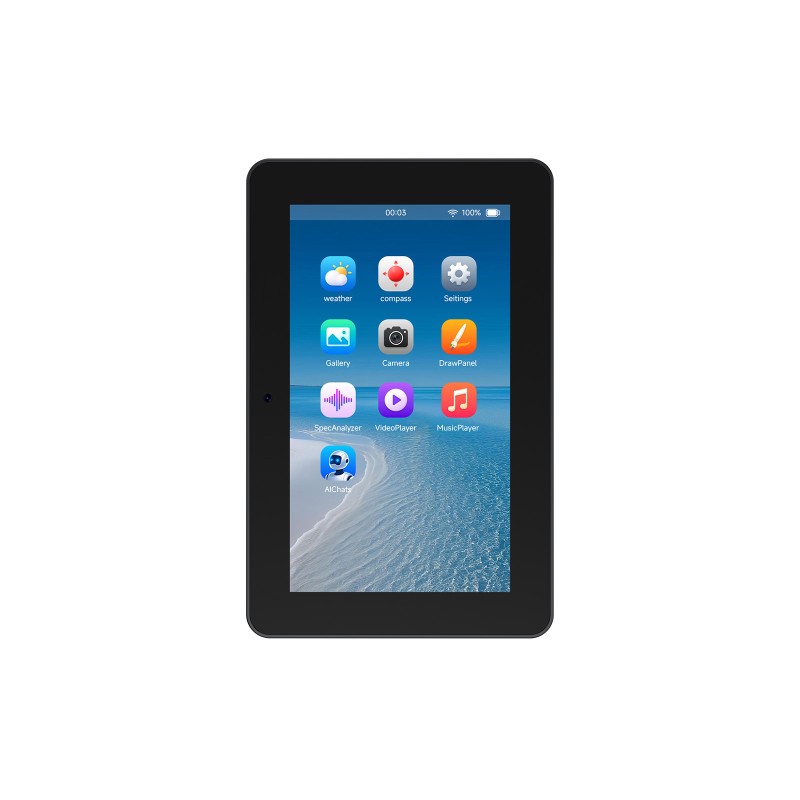

The board is equipped with a 7-inch IPS display with a resolution of 720 × 1280 px, featuring a 10-point capacitive touch panel protected by toughened glass. This ensures high readability, wide viewing angles, and mechanical durability, which are essential in industrial control systems. Display orientation (landscape or portrait) can be changed via software configuration.

Wireless connectivity is provided by the ESP32-C6-MINI module, supporting Wi-Fi 6 (2.4 GHz) and Bluetooth 5 LE, ensuring stable data transmission and low latency. The platform is suitable for use as an operator panel, smart home terminal, or IoT interface.

The device offers advanced multimedia capabilities, including a built-in 5 MP front camera (OV5647), dual microphones with ES7210 echo-cancellation circuitry, and a built-in speaker. Combined with hardware support for image and audio processing (JPEG, ISP, H.264), this enables voice interfaces, speech recognition, and AI Speech Interaction applications.

The metal enclosure improves heat dissipation and increases reliability in industrial environments. Power is supplied via the USB-C port or an external power source. The kit does not include a 3.7 V lithium battery.

1. ESP32-P4-Core - integrated ESP32-P4NRW32 and 32MB Nor Flash
2. ESP32-C6-MINI-1U-H8 module - SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE)
3. MIPI CSI interface - 15PIN pitch 1.0mm interface for connecting MIPI-2lane camera
4. 2.54mm 4PIN pads - for ESP32-C6 module firmware burning
5. Speaker header - 1.25mm 2PIN
6. Touch panel connector
7. DSI display connector
8. ES8311 low-power audio codec chip - for audio encoding and decoding
9. ES7210 echo cancellation chip - Echo cancellation algorithm chip, used to eliminate echo and improve audio capture accuracy
10. TF card slot - SDIO 3.0 interface protocol
11. Batt header - JST 1.2mm 2PIN
12. Board-to-Board signal transmission interfaces - for 16PIN 0.5mm FPC cable
13. Board-to-Board power supply & common ground interfaces - for 1.25mm 4PIN adapter cable
14. Onboard microphones - dual-microphone array
15. USB TO UART Type-C port - for power supply, programming and debugging
16. USB OTG Type-C port - USB OTG 2.0 High Speed port
17. Power supply ON/OFF switch
18. BOOT button - Press it when powering on or resetting to enter download mode
19. RESET button
20. PWR & Charge dual-color indicator - Power & charge indicator
21. 40PIN header

Features

• Processor: ESP32-P4, RISC-V architecture
• Memory: 32 MB PSRAM, 32 MB NOR Flash
• Wireless connectivity: Wi-Fi 6 2.4 GHz, Bluetooth 5 LE
• Display: 7-inch IPS
• Display resolution: 720 × 1280 px
• Touch panel: capacitive, 10-point, toughened glass
• Display interface: MIPI DSI 2-lane
• Camera: OV5647 5 MP, MIPI-CSI interface
• Audio: dual microphones with echo cancellation, built-in speaker
• Multimedia: hardware JPEG, ISP, H.264 encoder support
• Interfaces: USB OTG 2.0 HS, USB-UART, MIPI-CSI, SDIO 3.0, GPIO
• Security: Secure Boot, Flash Encryption, cryptographic accelerators, TRNG
• Enclosure: metal housing with mounting holes
• Operating temperature (display): 0°C to 60°C
• Power supply: USB-C or 3.7 V Li-ion/LiPo input
• Battery: not included in the kit
• Applications: HMI panels, smart home systems, industrial automation, edge computing

Kit includes

• ESP32-P4-WIFI6-Touch-LCD-7 board ×1
• Mounting brackets (4 pcs)
• Screw set
• 2-pin battery connection cable (~80 mm)
