ID: 1186664
zł26.42
Tax included

zł21.48 tax excl.

Module with a VOC sensor (volatile organic compounds) made in MEMS technology. It allows gas detection in the range of 5 to 500 ppm and has an analog output. DFRobot SEN0566

24h
Available
Available quantity: 2
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

VOC (Volatile Organic Compounds) sensor module that uses electromechanical microsystem (MEMS) technology, resulting in a compact sensor, low power consumption, short acquisition time and fast response. It can qualitatively measure concentrations in the range of 5 to 5000 ppm and is suitable for generating leak alarms, e.g. in portable gas detectors. The sensor has an analog output and is supplied with a voltage of 3.3 V to 5 V. Full documentation and sample programs are available on the product page.

Features

  • Detected gas: VOC
  • Detection range: 5 to 500 ppm
  • Output signal: analog
  • Sensitivity: R0 (in air)/Rs (in 150ppm ethanol) ≥ 3
  • Working temperature: -10 to 50℃
  • Operating humidity: 15 to 90% RH (non-condensing)
  • Lifespan: ≥5 years (in the air)
  • Power supply: 3.3 to 5V
  • Operating Current: <20mA
  • Dimension: 13x13x2.5mm

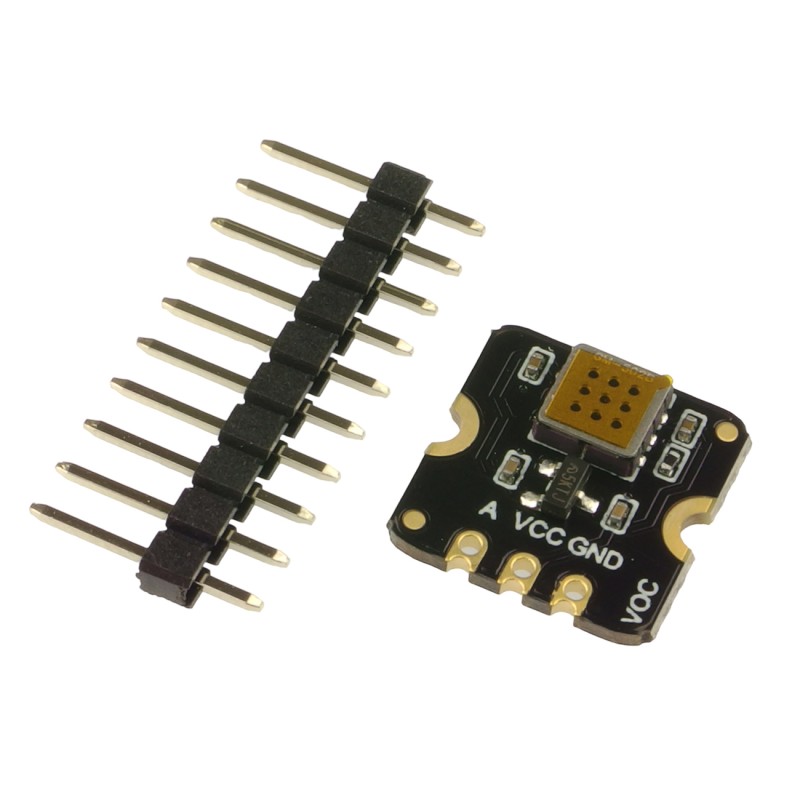

Kit contains

  • Fermion: MEMS Volatile Organic Compounds VOC Gas Detection Sensor
  • Goldpin male connector
1186664

Data sheet

Interface
Sygnał analogowy
Type of sensor
inny
Power supply voltage
3,3 - 5 V
Concentration measurement
VOC
