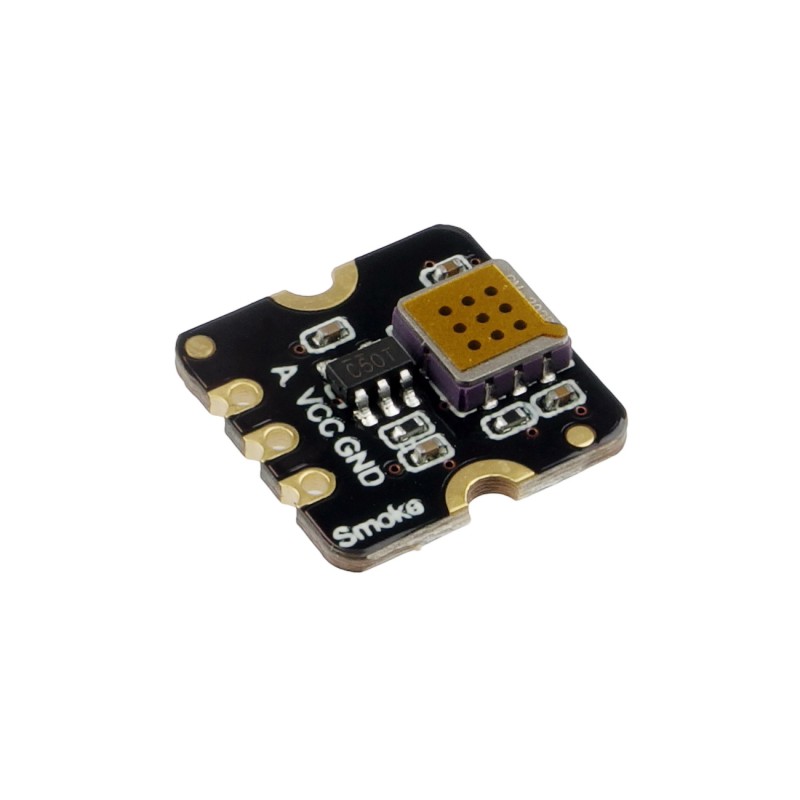

Fermion: MEMS Smoke Gas Detection Sensor - a module with a smoke concentration sensor
ID: 1186666
5902186311275
zł23.35
Tax included
zł18.98 tax excl.
Module with a smoke concentration sensor made in MEMS technology. It allows gas detection in the range of 10 to 1000 ppm and has an analog output. DFRobot SEN0570
Description
A module with a smoke concentration sensor that uses electromechanical microsystem (MEMS) technology, thanks to which the sensor has a compact size, low power consumption, short acquisition time and quick response. It can measure concentrations from 10 to 1000 ppm and is suitable for generating leak alarms in, for example, portable gas detectors. The sensor has an analog output and is supplied with a voltage of 3.3 V to 5 V. Full documentation and sample programs are available on the product page.
Features
- Detected gas: EtOH, smoke
- Detection range: 10 to 1000 ppm
- Output signal: analog
- Sensitivity: R0 (in air)/Rs (in 200ppm EtOH) ≥ 3
- Working temperature: -10 to 50℃
- Operating humidity: 15 to 90% RH (non-condensing)
- Lifespan: ≥5 years (in the air)
- Power supply: 3.3 to 5V
- Operating Current: <20mA
- Dimension: 13x13x2.5mm
Kit contains
- Fermion: MEMS Smoke Gas Detection Sensor
- Goldpin male connector
1186666
Data sheet
- Interface
- Sygnał analogowy
- Type of sensor
- inny
- Power supply voltage
- 3,3 - 5 V
- Concentration measurement
- pozostałych gazów
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
