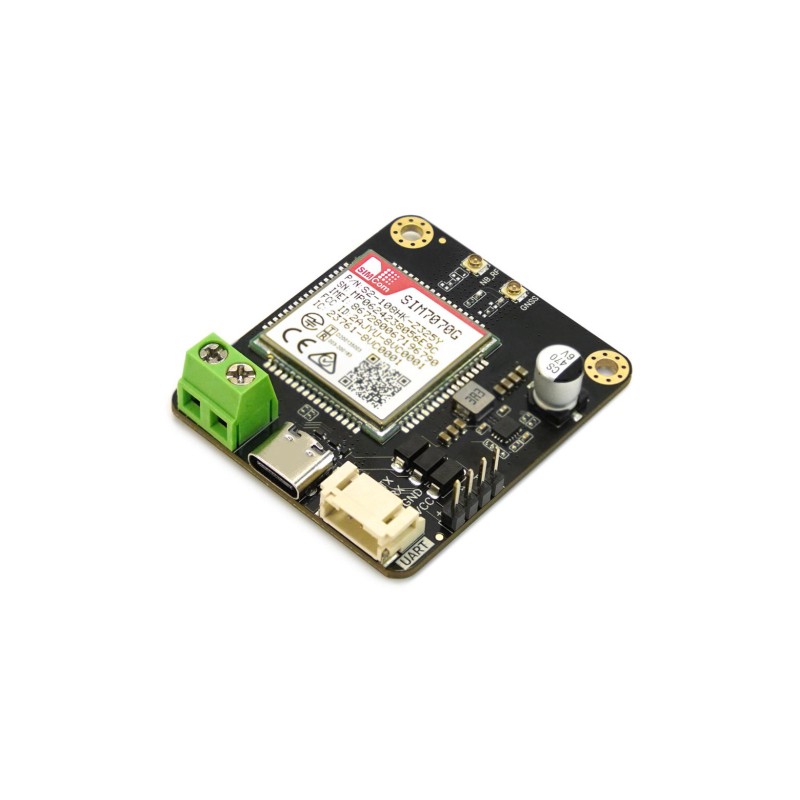

SIM7070G Global NB-IoT - board with SIM7070G NB-IoT/GNSS module
ID: 1196963
5902186311534
zł244.39
Tax included
zł198.69 tax excl.
Global NB-IoT communication module supporting CAT-M, NB-IoT, GSM and GPRS technologies, with built-in GNSS system (GPS, GLONASS, BeiDou, Galileo). It offers wide integration possibilities thanks to UART and USB interfaces, low power consumption and support for protocols such as MQTT, CoAP and HTTP, enabling quick implementation even in battery projects. It has global certifications (FCC, CE, AT&T, etc.), which guarantees compliance with international standards. DFRobot TEL0182
Description
The SIM7070G module is a versatile global NB-IoT communication module designed to support multiple data transmission protocols such as CAT-M, NB-IoT, GSM, GPRS, and EDGE. Additionally, its integrated GNSS positioning system (GPS, GLONASS, BeiDou, Galileo) makes it an ideal solution for applications like smart logistics, asset monitoring, smart cities, agriculture, and forestry. With support for a wide range of frequency bands, the SIM7070G ensures full compatibility with networks worldwide. This solution enables easy integration with various hardware and software platforms, offering stable and efficient communication even in demanding environments.
The integrated AT command set allows for rapid software development without the need for low-level protocol programming. It supports popular communication protocols such as HTTP, MQTT, FTP, CoAP, NIDD, and PING, significantly reducing implementation time. The module features two communication interfaces – UART and USB 2.0 – allowing it to be connected to microcontrollers, PCs, and industrial single-board computers. It also has a low power consumption (approx. 14 mA), making it suitable for battery-powered IoT applications. Certifications like FCC, CE, CCC, Anatel, AT&T, and Verizon ensure the SIM7070G meets international standards of quality and safety, enabling its use in global projects.
Features
- Supported protocols: NB-IoT, CAT-M, GSM, GPRS, EDGE
- Integrated GNSS: GPS, GLONASS, BeiDou, Galileo
- Positioning protocol: NMEA
- AT command set: support for HTTP, MQTT, FTP, CoAP, NIDD, PING

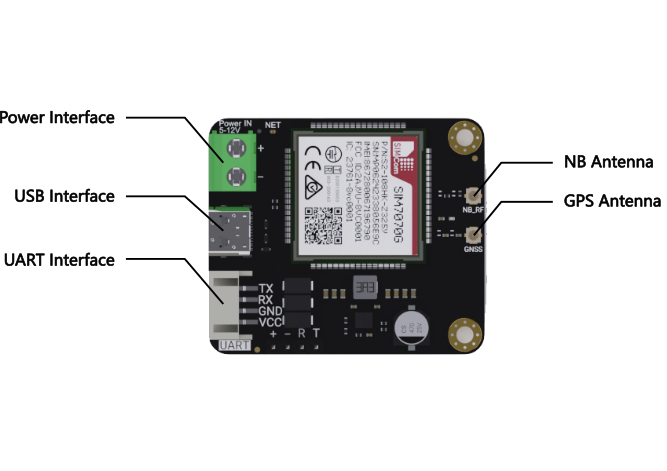

- Communication interfaces: UART (PH2.0-4P), USB 2.0 (Type-C)
- Supported NB-IoT bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
- Supported CAT-M bands: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
- GSM/GPRS/EDGE bands: GSM850, EGSM900, DCS1800, PCS1900
- Data rates:
- GPRS: Download 85.6 Kbps, Upload 107 Kbps
- EDGE: Download 296 Kbps, Upload 236.8 Kbps
- LTE Cat M1: Download 589 Kbps, Upload 1119 Kbps
- LTE Cat NB1/NB2: Download 127 Kbps, Upload 158.5 Kbps
- EGPRS: compatible with MCS 12
- Antenna connectors: IPEX1 (NBIoT + GNSS)
- SIM card slot: only supports 1.8V SIM (not compatible with 3V SIM)
- Power supply voltage: 3.3V to 5V
- Low Power mode consumption: approx. 14 mA
- Dimensions: 49 × 42 mm
Kit contains
- NB-IoT SIM7070G Module
- GSM Antenna
- GPS Antenna
- UART Cable PH2.0-4P
