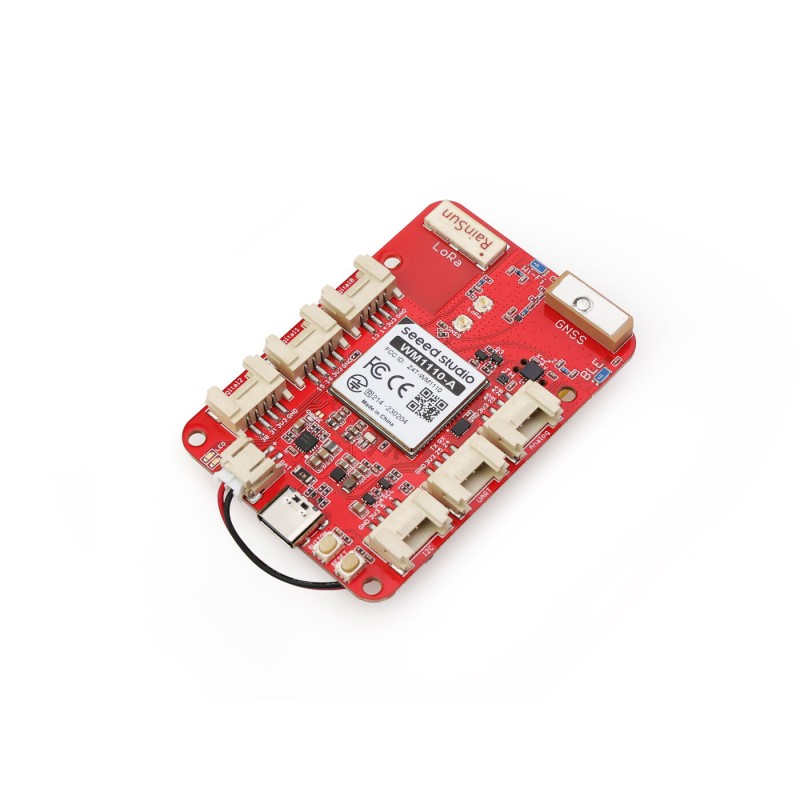

Wio Tracker 1110 Dev Board - Meshtastic development board with nRF52840 and LoRa LR1110
ID: 1193690
zł147.00
Tax included
zł119.51 tax excl.
A low-power development platform designed for creating LoRa-based tracking devices. It combines the Nordic nRF52840 chip with the Semtech LR1110 module, offering wide range, low power consumption, and compatibility with Meshtastic software. The board supports over 300 Seeed Grove sensors and has built-in environmental sensors and an accelerometer for expanded monitoring capabilities. Seeed Studio 114993370
Description
The Wio Tracker 1110 Dev Board is an advanced and ready-to-use development platform designed for building low-power tracking devices based on LoRa networks. The module is built around the Nordic nRF52840 (Bluetooth 5.3) and Semtech LR1110 (LoRa) chipsets, combining long-range communication, excellent energy efficiency, and versatile integration capabilities. It is fully compatible with Meshtastic firmware, allowing you to start working immediately with no additional configuration.
The board supports more than 300 sensors from the Seeed Grove ecosystem, offering exceptional flexibility for creating advanced tracking and monitoring systems. It includes built-in temperature and humidity sensors, as well as a three-axis accelerometer for capturing environmental and motion data in real time. The device is ideal for long-range communication projects, especially in areas without cellular coverage. Through Meshtastic integration, users can engage in group messaging, share locations, and build custom mesh networks.
The board provides extensive expansion capabilities through RF, GNSS, USB-C, and Grove interfaces. Its open-source software design ensures full freedom of customization and integration with existing IoT systems. The kit is ready to use right out of the box, making it an excellent tool for hobbyists, outdoor project developers, environmental researchers, and professionals. Strong radio performance and a broad range of supported protocols make it suitable for field, scientific, and commercial applications. With support for GPS, WiFi Sniffer, and Bluetooth, users gain a multifunctional device adaptable to nearly any tracking scenario. It is an ideal platform for anyone who needs a reliable, low-power solution for outdoor communication and monitoring.
Features
- Meshtastic compatibility
- Support for over 300 Seeed Grove sensors
- Built-in temperature and humidity sensor (SHT41)
- Built-in three-axis accelerometer
- Power supply: 5 V (USB-C) or 3.7 V battery
- GNSS and LoRa antenna connectors
- LoRaWAN 1.0.4 communication, 863–928 MHz frequency range
- High sensitivity down to –141 dBm and output power up to 20 dBm
- GPS/BeiDou positioning and WiFi Sniffer support
- Communication range 2–10 km (depending on conditions)
- Bluetooth 5.3, output power 6 dBm
- 1 MB Flash and 256 KB RAM (nRF52840)
- Support for BLE, Bluetooth Mesh, Thread, Zigbee, ANT, 802.15.4
- Grove connectors: ADC, I2C, UART, 3× digital
- External 4 MB Flash memory
- User button and reset button
- USB-C connector for communication and power
- Dimensions: 71 × 49 mm
Kit contains
- Wio Tracker 1110 Dev Board
- Lithium battery
- Round 3M stickers
