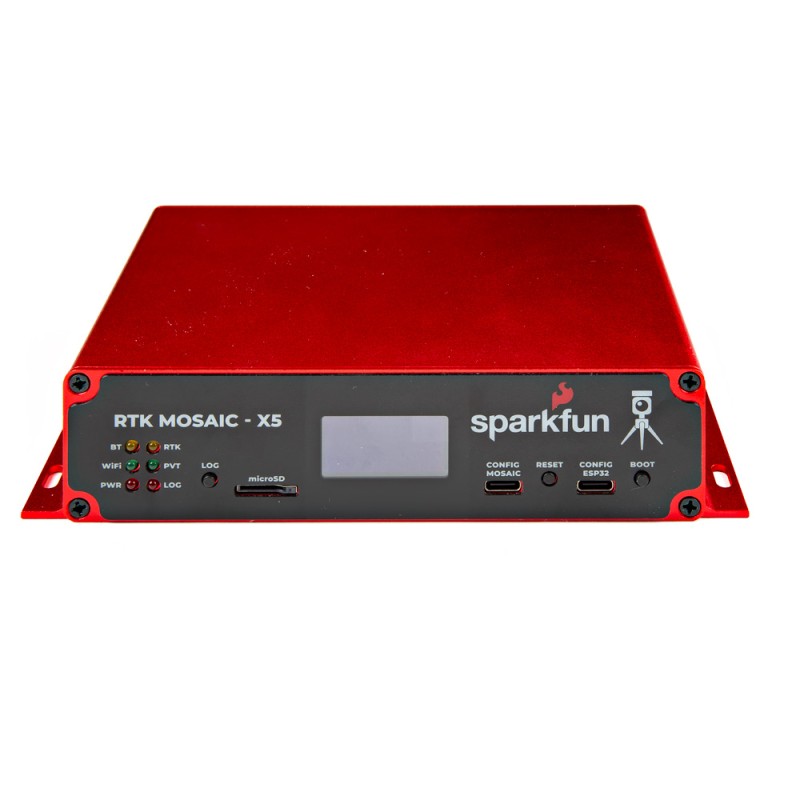

RTK mosaic-X5 - GNSS positioning and navigation kit

Description

RTK mosaic-X5 Kit is an advanced solution for precise positioning and navigation, designed and manufactured in Boulder, Colorado, USA. It is based on the multi-constellation, multi-frequency GNSS receiver mosaic-X5 from Septentrio and is one of the most advanced RTK products available on the market. RTK (Real-Time Kinematics) enables very high positioning accuracy by receiving signals from satellite navigation systems (GNSS) along with additional correction data streams. The mosaic-X5 receiver has 448 channels and supports GNSS signals from systems such as GPS (USA), GLONASS (Russia), Beidou (China), Galileo (Europe), NavIC (India), as well as additional satellites like SBAS and QZSS. The kit also supports L-band corrections.

The RTK mosaic-X5 receiver can be configured as an RTK base station, providing corrections to other receivers, or as an RTK rover, achieving horizontal positioning accuracy of 6 mm (plus 0.5 PPM). The kit also provides a position update rate of 100 Hz (100 times per second), making it ideal for robotics and autonomous systems. The kit features a built-in web server, allowing full configuration and position monitoring through a standard browser. The set can log data in RINEX format and supports logging in NMEA or SBF (Septentrio Binary Format). SBF files can be easily converted to RINEX using the RxTools utility from Septentrio. Inside the device is the GNSS mosaic-X5 module and the ESP32-WROVER processor with 16 MB flash memory and 8 MB PSRAM. The receiver offers USB-C connectivity (with Ethernet-over-USB support), multiple UARTs, and full Ethernet support. Although there is no built-in WiFi, the ESP32 acts as an Ethernet-to-WiFi Bridge, enabling connection to WiFi networks via the Ethernet port. The kit also supports Power-over-Ethernet (PoE).

The RTK mosaic-X5 kit is designed for durability and ease of use in laboratory conditions. The electronics are mounted on a single board, and the GNSS and WiFi/Bluetooth antennas are connected via solid SMA connectors. The IO connections are made through a robust screw terminal connector, with the option to select 3.3V or 5V voltage levels. The kit also features carefully designed Reset and Log buttons for easy operation, as well as a microSD card slot for convenient insertion and removal. The entire system is enclosed in a sturdy, custom-made aluminum housing, which can be easily mounted on a roof or in a server rack. The kit includes a GNSS antenna, certified by the National Geodetic Survey, with full support for ANTEX and ANTINFO. The RTK mosaic-X5 kit offers various power options: via USB-C (from mosaic-X5 or ESP32), Power-over-Ethernet (36V to 57V), or external DC power (9V to 36V). The GNSS SMA antenna connector supplies 5V to the active L1/L2/L5 antenna, instead of the standard 3.3V, ensuring stability and reliability.

Features

• Septentrio mosaic-X5 GNSS module:
  • High positioning accuracy
  • Support for current and future satellite signals
  • AIM+ system for interference mitigation and monitoring within advanced GNSS+ algorithms
  • Update rate: 100 Hz
  • 448 hardware channels for tracking all visible satellite signals simultaneously
  • Supports GNSS systems: GPS, GLONASS, Beidou, Galileo, QZSS, NavIC
  • Supports SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1, L5)
  • Built-in L-band support
  • Supports message formats: SBF, NMEA, RINEX, RTCM, and CMR
  • RTK for 5 constellations (base station and rover)
  • USB-C interface (UART and Ethernet-over-USB)
• ESP32-WROVER module
  • RP-SMA antenna connector for WiFi/BT
  • Provides WiFi connectivity for mosaic-X5
  • USB-C interface (UART via CH340)
• Two Ethernet PHY KSZ8041NLI interfaces
  • 10Base-T / 100Base-TX with auto-negotiation and Auto MDI/MDI-X
  • Independent Ethernet interfaces for mosaic-X5 and ESP32
  • Direct connection of mosaic-X5 to an external Ethernet network (optionally with PoE)
  • Alternatively, connect mosaic-X5 to ESP32 for WiFi connectivity
• MicroSD slot for fast data logging
• 128x64 pixel OLED display
• SMA connector for GNSS antenna
• 5V power supply for active antenna
• 3.5mm screw terminals
• Fully isolated external DC power (9V - 36V)
• Switchable I/O voltage levels: 3.3V or 5V
• UART interface for mosaic-X5: TX, RX, RTS, CTS
• EVENT-A and EVENT-B inputs for mosaic-X5
• PPSO synchronization pulse output for mosaic-X5
• Data logging button input for mosaic-X5
• Currently unused ESP32 UART interface: TX, RX, RTS, CTS
• ESP32 I2C with level conversion
• Aluminum housing
• Dust and water protection: IP42
• Matte finish stickers on the front and back panel
• Power options:
  • USB-C port for mosaic-X5
  • USB-C port for ESP32
  • Power over Ethernet: 36V to 57V
  • External DC power: 9 VDC to 36 VDC via screw terminals

Kit contains

• GNSS receiver in an enclosure
• Geodetic GNSS antenna L1/L2/L5
• RG58 TNC-SMA cable (10 m)
• SMA WiFi/Bluetooth antenna
• 32 GB microSD card (class 10)
• USB-C power adapter (5 V 1 A wall adapter)
• USB-C cable (A to C, 2 m)
• Ethernet cable (CAT-6, 1 m)
• User guide
