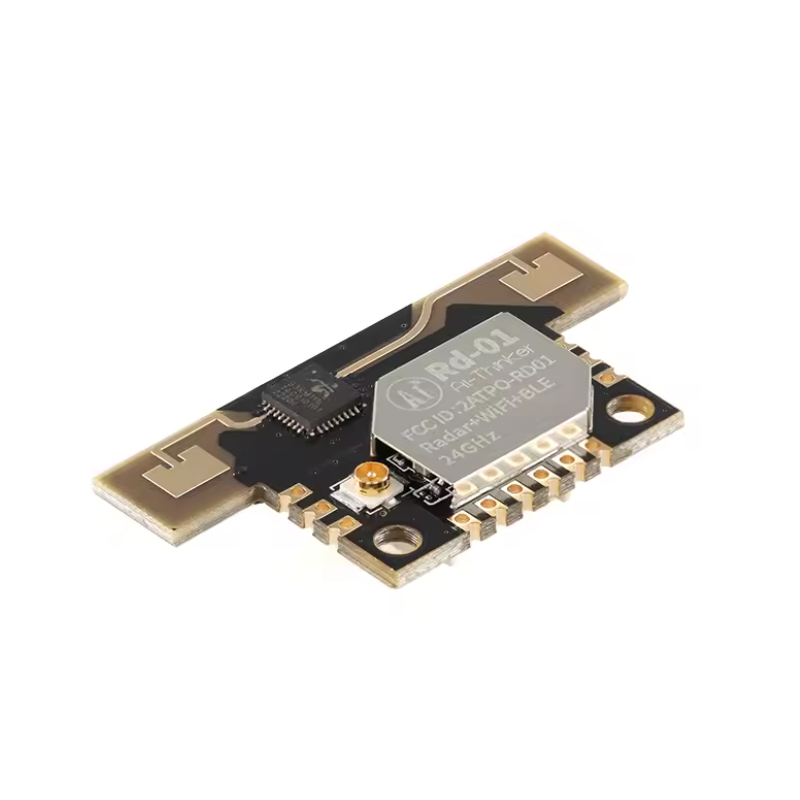

RD-01 24G human presence sensor with WiFi and Bluetooth module

Description

The RD-01 module is an advanced radar module that supports both Wi-Fi and Bluetooth Low Energy (BLE) communication. The device uses FMCW (Frequency Modulated Continuous Wave) radar technology operating in the 24 GHz band, enabling precise detection of human presence and movement within the monitored area. Thanks to its integrated detection algorithm, the module provides high sensitivity for detecting both motion and static presence.

The communication part is based on the BL602 chip, which supports Wi-Fi 802.11b/g/n and BLE 5.0 protocols, ensuring reliable real-time data transmission. The chip features a 32-bit RISC processor, 276 KB RAM, and a set of interfaces such as SPI, UART, I²C, PWM, ADC, and GPIO. The module allows configuration of operating parameters, including detection range and sensitivity, via intuitive visual tools. It is an ideal solution for smart control systems, smart home, security systems, or building automation where presence detection is required without the use of cameras or infrared sensors.

The RD-01 operates in a wide temperature range from -40°C to +85°C, making it suitable for use in various environments. Additionally, the module features an integrated radar antenna on PCB and an IPEX connector for Wi-Fi and BLE signals, facilitating integration in different projects. It supports advanced security protocols, including WPA3, ensuring safe data transmission. Thanks to its compact dimensions and low weight, the module can be easily embedded in end devices. This is a versatile and efficient next-generation sensor, perfect for IoT applications, smart monitoring, and automation.

Features

• Radar technology: FMCW, 24 GHz band (24.00 – 24.25 GHz)
• Modulation: FMCW with modulation bandwidth up to 1 GHz
• Communication: Wi-Fi 802.11b/g/n, BLE 5.0
• Radar chip: S3KM111L Sidian Micro
• Communication chip: BL602 with 32-bit RISC processor
• Memory: 276 KB RAM, 4 MB Flash
• Communication security: WPS/WEP/WPA/WPA2/WPA3
• Supported interfaces: UART, GPIO, ADC, PWM, I²C, SPI
• Number of I/O lines: 8
• Default UART speed: 115200 bps
• Supply voltage: 3.0 V – 3.6 V
• Current consumption: ≥ 500 mA
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +125°C, < 90% humidity
• Radar antenna type: integrated antenna (PCB)
• Wi-Fi/BLE antenna connector: IPEX
• Dimensions: 35.0 × 18.0 × 3.6 mm
