ID: 1178537
zł44.96
Tax included

zł36.55 tax excl.

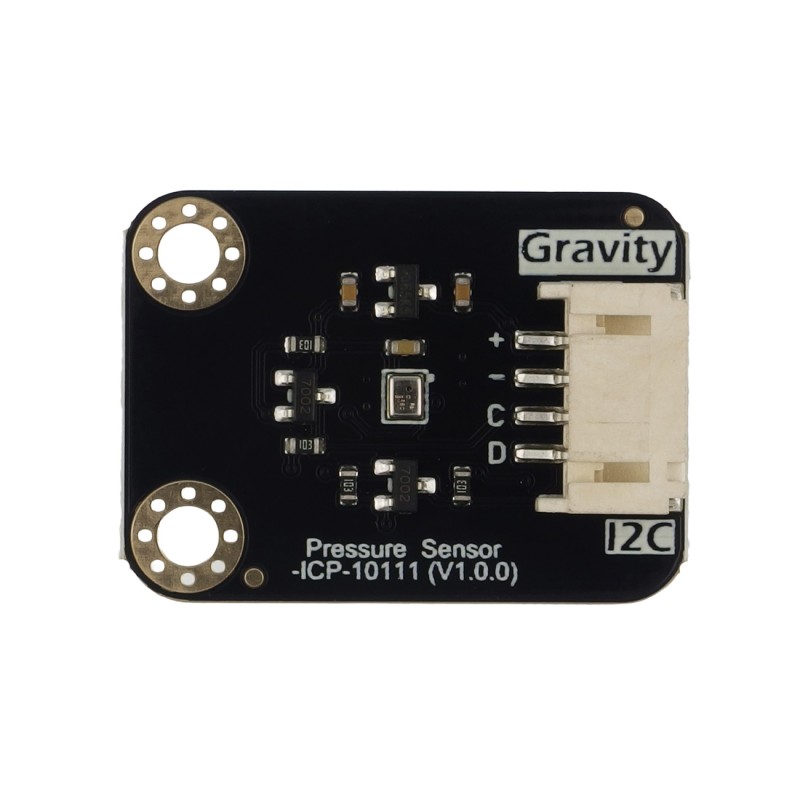

Module with digital barometer ICP-10111. The system enables pressure measurement in the range from 300 to 1100 hPa with an accuracy of 1 Pa. DFRobot SEN0517

24h
Available
Available quantity: 3
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Module with digital barometer ICP-10111. It enables pressure measurement in the range from 300 to 1100 hPa with an accuracy of ± 1 Pa, which in relation to height gives an accuracy of 0.085 m. The system also allows temperature measurement in the range from -40 ℃ to 85 ℃. The sensor operates based on the MEMS capacitive technology, which allows it to achieve very low energy consumption, high relative accuracy and resistance to temperature influences. The ICP-10111 offers high-performance barometric pressure sensing to identify sports activity, indoor / outdoor mobile navigation, and drone altitude hold. For communication, the module uses the I2C interface (Gravity) and is supplied with the voltage from 3.3 to 5.5 V. The user manual and sample programs are available on the Wiki page of the product.

Features

  • Pressure measurement range: 300 to 1100 hPa
  • Relative accuracy: ± 1 Pa (± 0.085 m at 950-1050 hPa, 25 ℃)
  • Absolute accuracy: ± 1 hPa
  • Temperature coefficient: ± 0.5 Pa / K (-25 ℃ -45 ℃ at 100 kPa)
  • Temperature measurement range: -40 ℃ to 85 ℃
  • Temperature measurement accuracy: ± 0.4 ℃
  • Interface: I2C
  • I2C address: 0x63
  • Gravity connector
  • Voltage: 3.3 V to 5.5 V
  • Current: 2 mA
  • Outer dimensions: 16.5 x 12.5 mm

Kit contains

  • Gravity: ICP-10111 Pressure Sensor
  • 4-pin Gravity cable
1178537

Data sheet

Interface
I2C
Type of sensor
inny
Power supply voltage
3,3 - 5 V
Sensor type
Ciśnienia atmosferycznego
