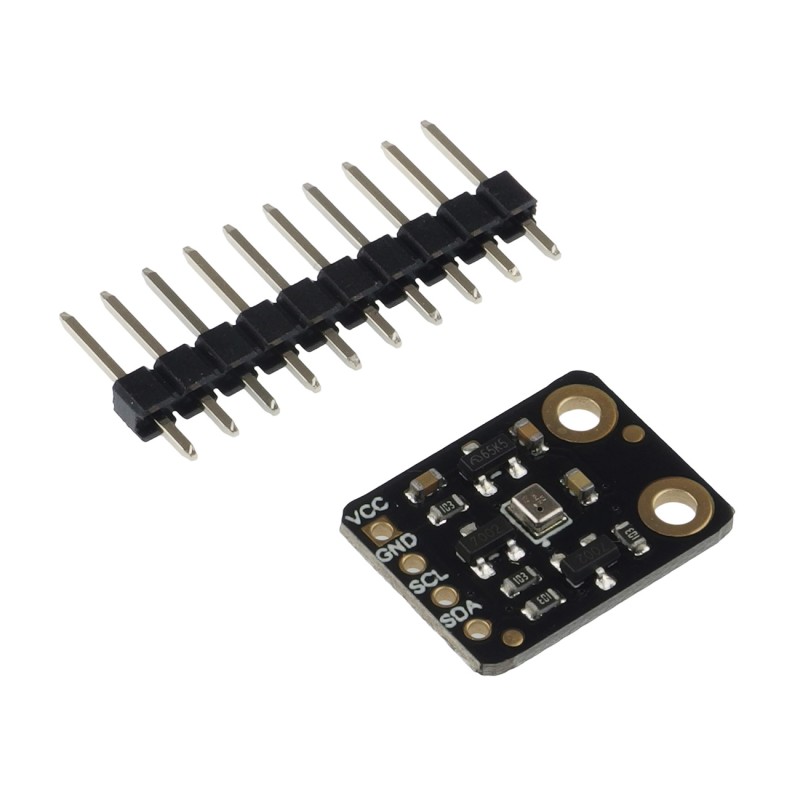

Fermion: ICP-10111 Pressure Sensor - module with a pressure sensor
ID: 1178536
zł33.91
Tax included
zł27.57 tax excl.
Module with digital barometer ICP-10111. The system enables pressure measurement in the range from 300 to 1100 hPa with an accuracy of 1 Pa. DFRobot SEN0516
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with digital barometer ICP-10111. It enables pressure measurement in the range from 300 to 1100 hPa with an accuracy of ± 1 Pa, which in relation to height gives an accuracy of 0.085 m. The system also allows temperature measurement in the range from -40 ℃ to 85 ℃. The sensor operates based on the MEMS capacitive technology, which allows it to achieve very low energy consumption, high relative accuracy and resistance to temperature influences. The ICP-10111 offers high-performance barometric pressure sensing to identify sports activity, indoor / outdoor mobile navigation, and drone altitude hold. For communication, the module uses the I2C interface and is supplied with the voltage from 3.3 to 5.5 V. The user manual and sample programs are available on the Wiki page of the product.
Features
- Pressure measurement range: 300 to 1100 hPa
- Relative accuracy: ± 1 Pa (± 0.085 m at 950-1050 hPa, 25 ℃)
- Absolute accuracy: ± 1 hPa
- Temperature coefficient: ± 0.5 Pa / K (-25 ℃ -45 ℃ at 100 kPa)
- Temperature measurement range: -40 ℃ to 85 ℃
- Temperature measurement accuracy: ± 0.4 ℃
- Interface: I2C
- I2C address: 0x63
- Voltage: 3.3 V to 5.5 V
- Current: 2 mA
- Outer dimensions: 16.5 x 12.5 mm
Kit contains
- Fermion: ICP-10111 Pressure Sensor
- Straight 4-pin goldpin connector
1178536
Data sheet
- Interface
- I2C
- Type of sensor
- inny
- Power supply voltage
- 3,3 - 5 V
- Sensor type
- Ciśnienia atmosferycznego
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
