Step-Down Regulator APM81815 3.3V 1.1A - Pololu 5266
ID: 1202997
zł25.61
Tax included
zł20.82 tax excl.
Step-down voltage regulator module based on the APM81815 providing a fixed 3.3 V output at up to 1.1 A with an input voltage range of 5 - 72 V. Pololu 5266
Description
The Pololu 5266 is based on the APM81815 synchronous buck regulator and enables step-down conversion from an input voltage range of 5 - 72 V to a stable 3.3 V output. The design uses an Allegro MicroSystems IC intended for industrial and automotive applications, including systems powered from 12 V, 24 V, and 48 V supply rails.
The regulator operates at an internally set switching frequency of 2.15 MHz and integrates key power-stage components, simplifying PCB layout and reducing EMI emissions. The module supports continuous output current up to 1.1 A. Integrated protection features include undervoltage lockout (UVLO), cycle-by-cycle current limiting, short-circuit protection, output overvoltage and undervoltage protection, and thermal shutdown. The PGOOD open-drain output allows monitoring of the output voltage status.
Features
- Integrated circuit: APM81815
- Converter type: Synchronous step-down (buck)
- Input voltage: 5 - 72 V
- Output voltage: 3.3 V
- Maximum continuous output current: 1.1 A
- Output type: Fixed 3.3 V
- Switching frequency: 2.15 MHz
- Maximum quiescent current: 3 mA
- No reverse voltage protection
- Cycle-by-cycle overcurrent protection
- Output short-circuit protection
- Output overvoltage and undervoltage protection
- Thermal shutdown protection
- PGOOD open-drain status output
- Dimensions: 10.16 x 19.05 x 3.3 mm
- Weight: 1.0 g
1202997
Data sheet
- Output voltage
- 3,3 V
- Output current
- 1,1 A
- Converter type
- Step-down
- Supply voltage min
- 5 V
- Supply voltages max
- 72 V
- APM81815 datasheet (1,48 MB)
- Dimension diagram of the APM81815 Step-Down Voltage Regulator Carrier (292,29 kB)
- 3D model of the APM81815 Step-Down Voltage Regulator Carrier (3,3 MB)
- Drill guide for the APM81815 Step-Down Voltage Regulator Carrier (11,95 kB)
- Schematic - jpg (40,85 kB)
- Typical dropout voltage 3,3V - jpg (61,29 kB)
- Typical efficiency - jpg (89,50 kB)
- Quiescent current - jpg (108,39 kB)
- Maximum continuous output current - jpg (98,12 kB)
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
The LM2596 module with an adjustable step-down converter is a versatile tool for powering and testing electronic circuits. It allows convenient voltage adjustment with precise parameter monitoring thanks to the built-in voltmeter. Ideal for prototyping, laboratory experiments, and service work.
zł8.63
4 weeks
No product available!
The DC-DC Step-down Converter Module with the LM2596S chip allows you to convert the voltage from the range of 3-40 V to a regulated output voltage of 1.5-35 V with high efficiency up to 92%. The maximum output current is 3 A, and the operating frequency is 150 kHz. The compact design with dimensions of 43 × 21 × 14 mm, the possibility of precise voltage regulation and a pinout of 2.54 mm facilitate the integration of the module in DIY projects, power supply systems, modeling and laboratory stations. The operating temperature range is from -40 to 85°C
zł5.90
24h
Available quantity: 612
Available
DC-DC step-down converter module 12V 12A used to convert energy from 15-24V input voltage to stable 12V, providing up to 12A current. Thanks to high conversion efficiency (over 90%) and low ripple (<50mV), it is ideal for powering sensitive devices in applications such as robotics, drones or LED lighting systems. Additionally, built-in overheating and short-circuit protection mechanisms ensure reliable operation even in difficult conditions. DFRobot DFR1208
zł68.42
24h
Available quantity: 2
Available
DC-DC step-down converter module 5V 16A used to convert energy from 6-24V input voltage to stable 5V, providing up to 16A current. Thanks to high conversion efficiency (over 90%) and low ripple (<20mV), it is ideal for powering sensitive devices in applications such as robotics, drones or LED lighting systems. Additionally, built-in overheating and short-circuit protection mechanisms ensure reliable operation even in difficult conditions. DFRobot DFR1202
zł55.98
24h
Available quantity: 5
Available
The DC-DC Buck Converter DC5-36-TO-DC3V3-5 in SMD version is designed for direct surface mounting. With selectable output voltage and high efficiency, it is suitable for applications involving microcontrollers, IoT systems, and mobile electronic devices.
zł12.58
4 weeks
No product available!
DC-DC Buck Converter 5–36 V with 5 V or 3.3 V output in the DC5-36-TO-DC3V3-5-M version is equipped with terminal and pin headers for quick deployment in power applications. High efficiency, adjustable voltage, and compact size make it suitable for powering microcontrollers, communication modules, and embedded systems.
zł15.35
4 weeks
No product available!
Miniature 15 V switching voltage regulator based on the AP63200 IC, input range 3.5 - 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 15V
zł15.99
24h
Available quantity: 40
Available
Step-down voltage regulator module based on the APM81815 providing a fixed 3.3 V output at up to 1.1 A with an input voltage range of 5 - 72 V. Pololu 5266
zł25.61
6 weeks
No product available!
Step-down voltage regulator module based on the APM81815 providing a fixed 5 V output at up to 1.1 A with an input voltage range of 5.05 - 72 V. Pololu 5267
zł25.61
6 weeks
No product available!
Step-down voltage regulator module based on the APM81815 providing a fixed 5.35 V output at up to 1.1 A with an input voltage range of 5.4 - 72 V. Pololu 5268
zł25.61
6 weeks
No product available!
Step-down voltage regulator module based on the APM81815 providing a fixed 12 V output at up to 0.8 A with an input voltage range of 12.1 - 72 V. Pololu 5269
zł25.61
6 weeks
No product available!
Miniature 2.5 V switching voltage regulator based on the AP63200 converter, input range 3.5 – 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 2.5V
zł15.99
24h
Available quantity: 20
Available
Miniature 3.3 V switching voltage regulator based on the AP63200 converter, input range 3.5 – 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 3.3V
zł15.99
24h
Available quantity: 20
Available
Miniature 4.2 V switching voltage regulator based on the AP63200 IC, input range 3.5 – 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 4.2V
zł15.99
24h
Available quantity: 20
Available
Miniature 5 V switching voltage regulator based on the AP63200 IC, input range 3.5 – 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 5V
zł15.99
24h
Available quantity: 19
Available

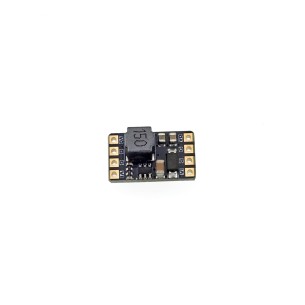

Miniature 8.4 V switching voltage regulator based on the AP63200 IC, input range 3.5 - 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 8,4V
