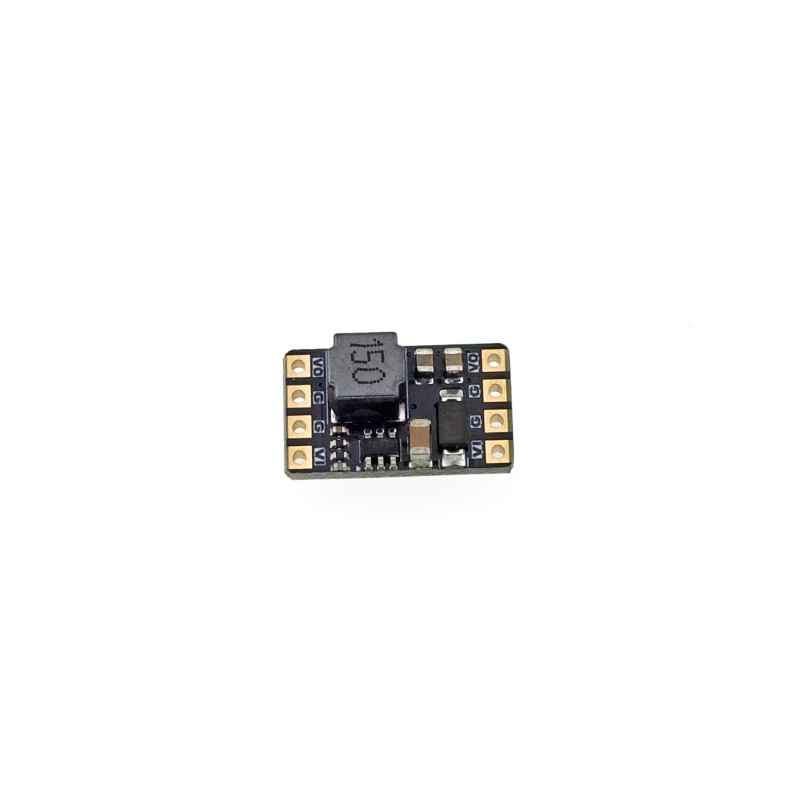

KAmod-DCDC-AP63200 5V - Step-Down Converter 1A

An efficient step-down converter that reduces the input voltage to 5 V at a maximum current of 100 mA, offering high efficiency due to low quiescent current (<20 μA). It supports input voltage from 5 V to 65 V, has a Power Good (PGOOD) function, an EN input for system shutdown, and short circuit and overheat protection, making it a reliable and energy-efficient solution. Pololu 5373

An efficient step-down converter that reduces the input voltage to 3.3 V at a maximum current of 100 mA, offering high efficiency due to low quiescent current (<20 μA). It supports input voltages from 3.3 V to 65 V, has a Power Good (PGOOD) function, an EN input for system shutdown, and short circuit and overheat protection, making it a reliable and energy-efficient solution. Pololu 5372

An efficient step-down converter that reduces the input voltage to 5 V at a maximum current of 100 mA, offering high efficiency due to low quiescent current (<20 μA). It supports input voltages from 5 V to 65 V, has short circuit and overheating protection, making it a reliable and energy-efficient solution. Pololu 5363

An efficient step-down converter that reduces the input voltage to 3.3 V at a maximum current of 100 mA, offering high efficiency thanks to its low quiescent current (<20 μA). It supports input voltages from 3.3 V to 65 V, has short circuit and overheating protection, making it a reliable and energy-efficient solution. Pololu 5362

An efficient step-down converter that steps down the input voltage from as low as 45 V to a regulated output voltage range of 1.4 to 7 V, offering high efficiency and a maximum continuous current of 3.4 A. It has built-in reverse polarity, overload and short circuit protection, and the spread spectrum function reduces EMI interference. Pololu 4873

Efficient step-down converter that reduces the input voltage from up to 45 V to a regulated output voltage range from 1.4 to 7 V, offering high efficiency and a maximum continuous current of 3.4 A. It has built-in protection against reverse polarity, overload and short circuit, and the spread spectrum function reduces EMI interference. The module is equipped with an additional potentiometer for adjusting the cut-off voltage. Pololu 4872

An efficient step-down converter that steps down the input voltage from as low as 45 V to a regulated output voltage range of 1.4 to 7 V, offering high efficiency and a maximum continuous current of 3.8 A. It has built-in reverse polarity, overload and short circuit protection, and the spread spectrum function reduces EMI interference. Pololu 4853

Efficient step-down converter that reduces the input voltage from up to 45 V to a regulated output voltage range from 1.4 to 7 V, offering high efficiency and a maximum continuous current of 3.8 A. It has built-in protection against reverse polarity, overload and short circuit, and the spread spectrum function reduces EMI interference. The module is equipped with an additional potentiometer for adjusting the cut-off voltage. Pololu 4852

The LM2596 module with an adjustable step-down converter is a versatile tool for powering and testing electronic circuits. It allows convenient voltage adjustment with precise parameter monitoring thanks to the built-in voltmeter. Ideal for prototyping, laboratory experiments, and service work.

The DC-DC Step-down Converter Module with the LM2596S chip allows you to convert the voltage from the range of 3-40 V to a regulated output voltage of 1.5-35 V with high efficiency up to 92%. The maximum output current is 3 A, and the operating frequency is 150 kHz. The compact design with dimensions of 43 × 21 × 14 mm, the possibility of precise voltage regulation and a pinout of 2.54 mm facilitate the integration of the module in DIY projects, power supply systems, modeling and laboratory stations. The operating temperature range is from -40 to 85°C

DC-DC step-down converter module 12V 12A used to convert energy from 15-24V input voltage to stable 12V, providing up to 12A current. Thanks to high conversion efficiency (over 90%) and low ripple (<50mV), it is ideal for powering sensitive devices in applications such as robotics, drones or LED lighting systems. Additionally, built-in overheating and short-circuit protection mechanisms ensure reliable operation even in difficult conditions. DFRobot DFR1208

DC-DC step-down converter module 5V 16A used to convert energy from 6-24V input voltage to stable 5V, providing up to 16A current. Thanks to high conversion efficiency (over 90%) and low ripple (<20mV), it is ideal for powering sensitive devices in applications such as robotics, drones or LED lighting systems. Additionally, built-in overheating and short-circuit protection mechanisms ensure reliable operation even in difficult conditions. DFRobot DFR1202

The DC-DC Buck Converter DC5-36-TO-DC3V3-5 in SMD version is designed for direct surface mounting. With selectable output voltage and high efficiency, it is suitable for applications involving microcontrollers, IoT systems, and mobile electronic devices.

DC-DC Buck Converter 5–36 V with 5 V or 3.3 V output in the DC5-36-TO-DC3V3-5-M version is equipped with terminal and pin headers for quick deployment in power applications. High efficiency, adjustable voltage, and compact size make it suitable for powering microcontrollers, communication modules, and embedded systems.

Miniature 2.5 V switching voltage regulator based on the AP63200 converter, input range 3.5 – 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 2.5V

Miniature 3.3 V switching voltage regulator based on the AP63200 converter, input range 3.5 – 32 V, output current up to 1 A (1.5 A peak), efficiency up to 90%, dimensions 18 x 11 mm. KAmod-DCDC-AP63200 3.3V
