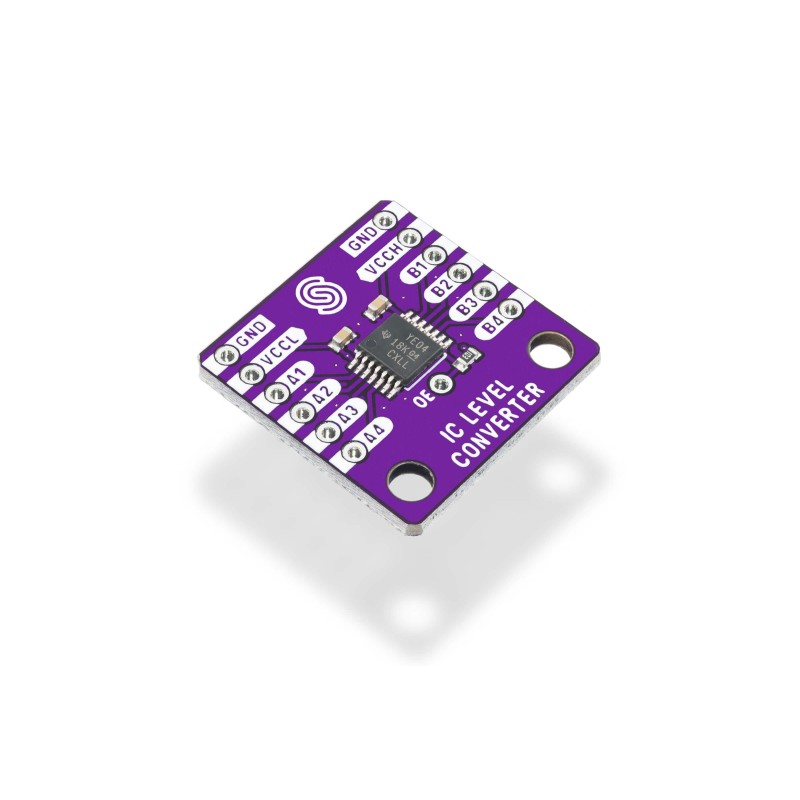

Soldered Logic Level Converter TXB0104 - 4-channel bidirectional logic level converter
ID: 1208242
zł12.58
Tax included
zł10.23 tax excl.
Four-channel logic level converter based on the TXB0104 IC, designed for connecting digital circuits operating at different logic voltages. It supports automatic direction sensing, bidirectional communication, and digital interfaces such as SPI and UART. Soldered 333017
Description
The TXB0104 provides 4 bidirectional logic level conversion channels with automatic direction sensing, eliminating the need for an additional direction control line. The module can connect microcontrollers and peripherals operating at different voltage levels, for example 1.8 V or 3.3 V circuits with devices using logic levels up to 5 V.
The board supports digital communication interfaces except I2C, according to the manufacturer's specifications. The 2.54 mm pin pitch allows installation on a breadboard, while the mounting holes are compatible with LEGO spacing. Compact dimensions of 22 x 22 mm make the module suitable for prototypes, measurement systems, and circuits combining components with different logic voltage levels.
Features
- IC: TXB0104
- Function: bidirectional logic level conversion
- Number of channels: 4
- Automatic direction sensing
- Supported digital interfaces: including SPI and UART
- I2C: not supported
- Maximum voltage: 30 V
- Compatible with 3.3 V and 5 V logic levels
- Pin pitch: 2.54 mm
- Breadboard-compatible design
- LEGO-compatible mounting holes
- Dimensions: 22 x 22 mm
- Open-source design
- Manufactured in Croatia, EU
1208242
Data sheet
- Number of channels
- 4
- Voltage on page A
- 1,2 - 3,6 V
- Voltage on side B
- 1,65 - 5,5 V
