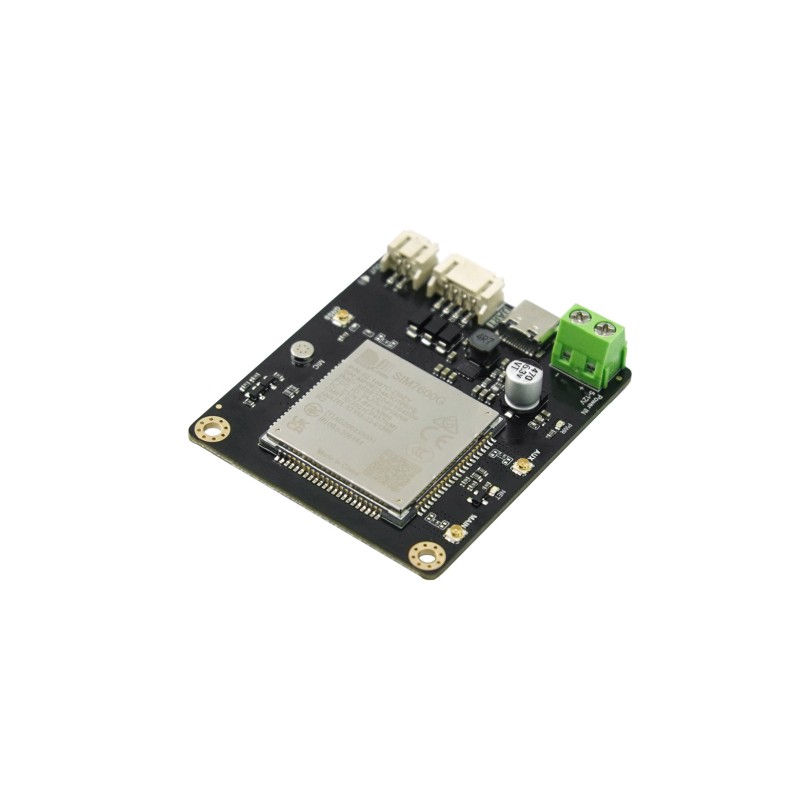

Gravity: CAT1 SIM7600G - 4G/GNSS module with SIM7600G chip
ID: 1196975
5902186311565
zł296.43
Tax included
zł241.00 tax excl.
Universal communication module supporting 4G/3G/2G connectivity and GNSS systems, ideal for applications in monitoring, logistics and alarm systems. Thanks to UART and USB interfaces, as well as compatibility with Windows, Linux and Android systems, it can operate as a standalone device or an external network card. Support for AT commands, TCP/IP protocols and voice functions make it a versatile tool for IoT and embedded projects. DFRobot TEL0161
Description
The SIM7600G CAT1 4G is a versatile, integrated wireless communication module that supports 4G LTE, 3G UMTS, and 2G GSM networks, as well as satellite positioning systems GNSS (GPS, BeiDou, GLONASS). Thanks to its broad compatibility—with platforms such as Raspberry Pi, Arduino, and LattePanda—the module can function as an external 4G network card or a standalone communication device controlled via AT commands.
The SIM7600G supports a wide range of network protocols, including TCP/IP, FTP, HTTPS, and DNS, eliminating the need to implement low-level protocol stacks. A built-in microphone and audio amplifier allow for voice calls and SMS functionality, making this module ideal for applications in transportation, GPS tracking, logistics, or alarm systems. It features both UART and USB interfaces for easy integration with most single-board computers. The module supports major operating systems—Windows, Linux, and Android—and can function as a traditional USB network card.
Features
- Control via AT commands
- GNSS support: GPS, GLONASS, BeiDou
- Global compatibility with wide frequency band support
- Voice capabilities: phone calls, SMS, data transmission
- Supported protocols: TCP/IP, FTP, FTPS, HTTP, HTTPS, DNS, Multi-PDP, and more
- Can function as a network card via USB interface
- Integrated microphone and audio amplifier
- 4G standard: CAT1 (Uplink: 5Mbps, Downlink: 10Mbps)
- Supported bands:
- LTE-TDD: B34/B38/B39/B40/B41
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- GSM: 850/900/1800/1900MHz

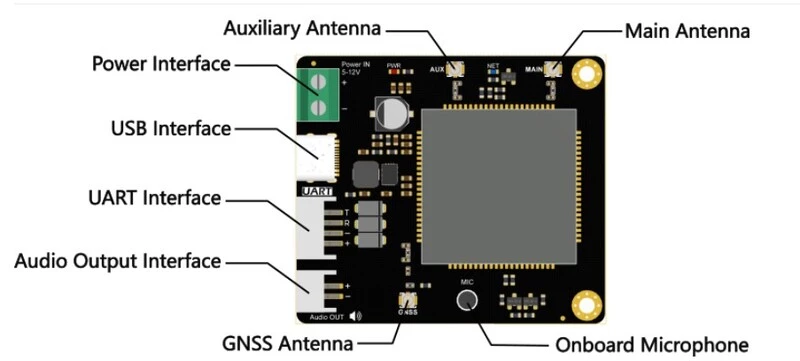

- Interfaces: UART (3.3V–5V, PH2.0-4P), USB-C
- Audio: PJ2.0-2P output, built-in microphone
- SIM slot: Push-lock (microSIM)
- Antennas:
- 4G MAIN (male IPEX)
- 4G AUX (male IPEX)
- GNSS (male IPEX)
- LED indicators: red (power), blue (network status)
- Supported OS: Windows, Linux, Android
- Power supply: Terminal 5–12V or USB-C 5V
- Operating temperature: -40°C to 85°C
- Dimensions: 60 × 52mm
Kit contains
- SIM7600G CAT1 4G module
- Antenna set (4G TEL + GPS)
- SIM card adapter (3-in-1)
- Gravity PH2.0-4P communication cable
1196975
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
